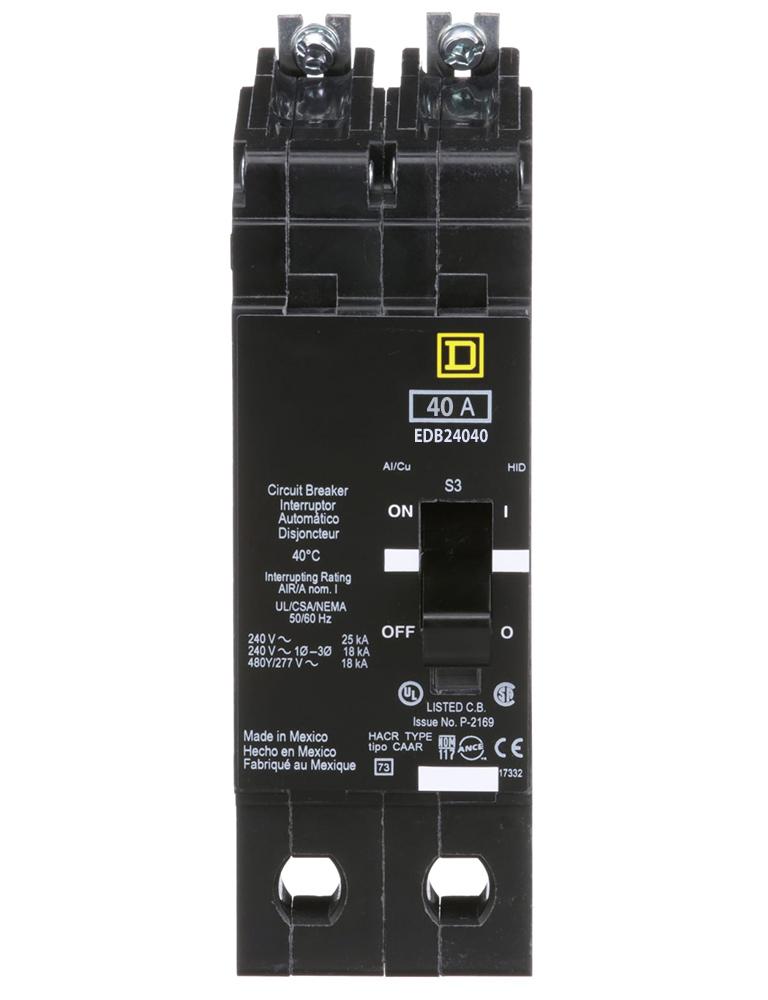

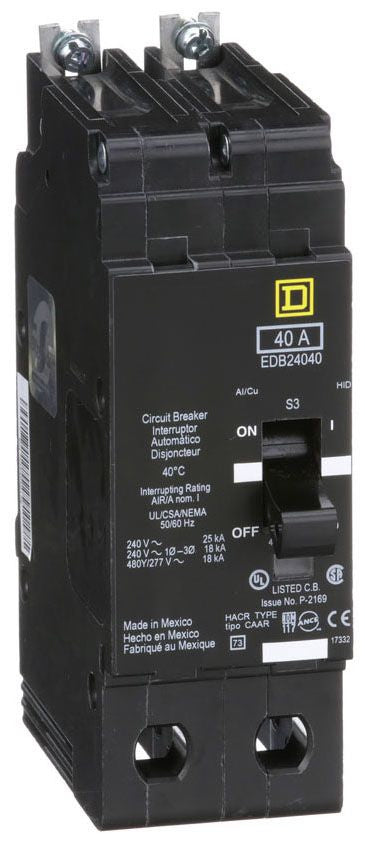

Square D EDB24040 Circuit Breaker | 480Y/277V 40A 2P 18kA@480V Bolt-on EDB Series

Product Description:
The Square D EDB24040 is a 2-pole molded case circuit breaker designed for 480Y/277 Volt systems. It has a 40 amp rating and provides reliable thermal magnetic protection. This circuit breaker features a bolt-on connection and is suitable for use in NF panelboards.

Key Features:
✔ Part Number: EDB24040
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: EDB Series
✔ Type: EDB
✔ Voltage: 480Y/277
✔ Amperage: 40
✔ Poles: 2
✔ AIC rating: 18kA@480V
✔ Connection: Bolt-on
✔ Protection: Thermal Magnetic
✔ Frame Size: 125A/EDB
✔ Wire Size: Min. 12 AWG (Al), 14 AWG (Cu) Max. 6 AWG
✔ Certification: cULus
✔ UPC: 785901879060
✔ GTIN: 00785901879060
✔ Country of Origin: Mexico
✔ Dimensions: 1.96 in x 5.66 in x 5.66 in
✔ Weight: 1.15
✔ Panel Type: NF panelboard
