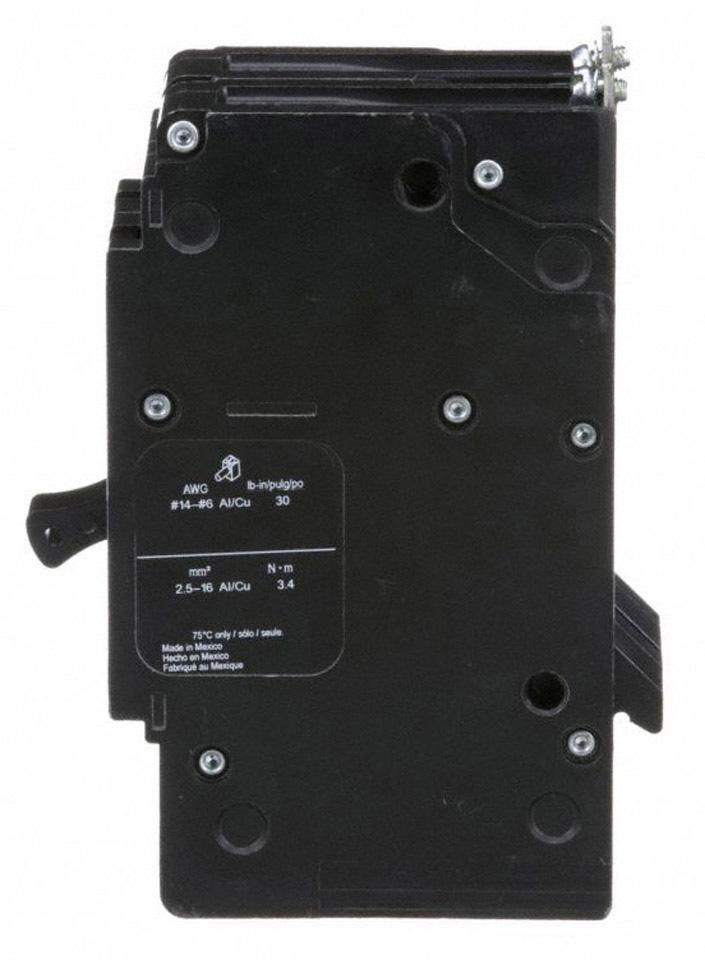

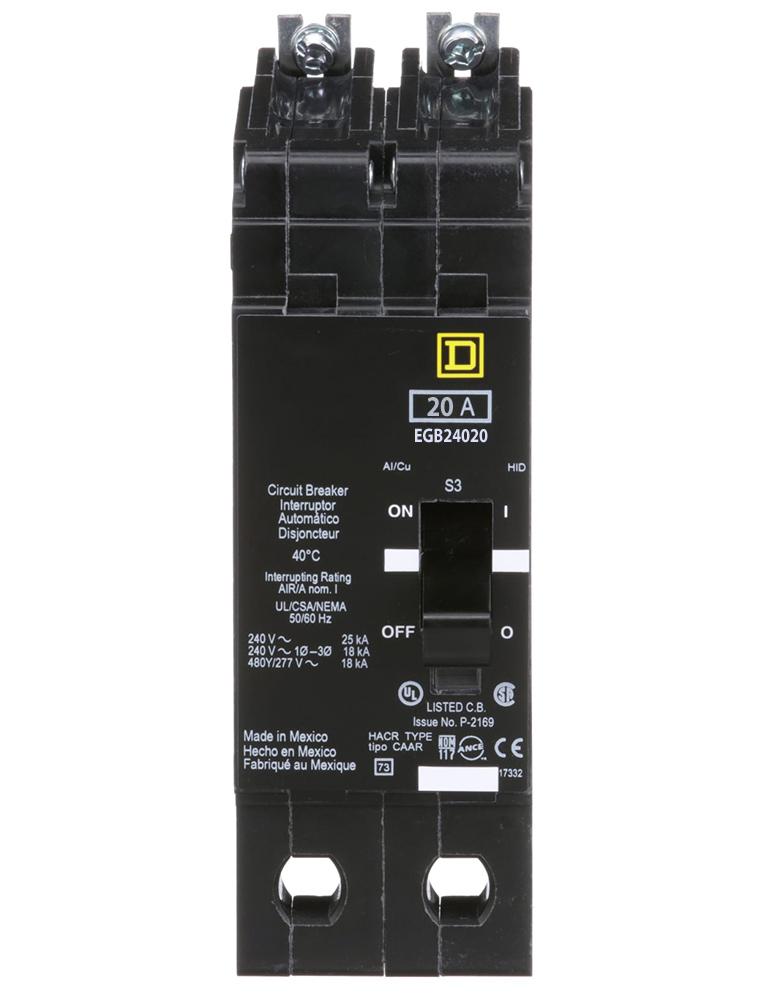

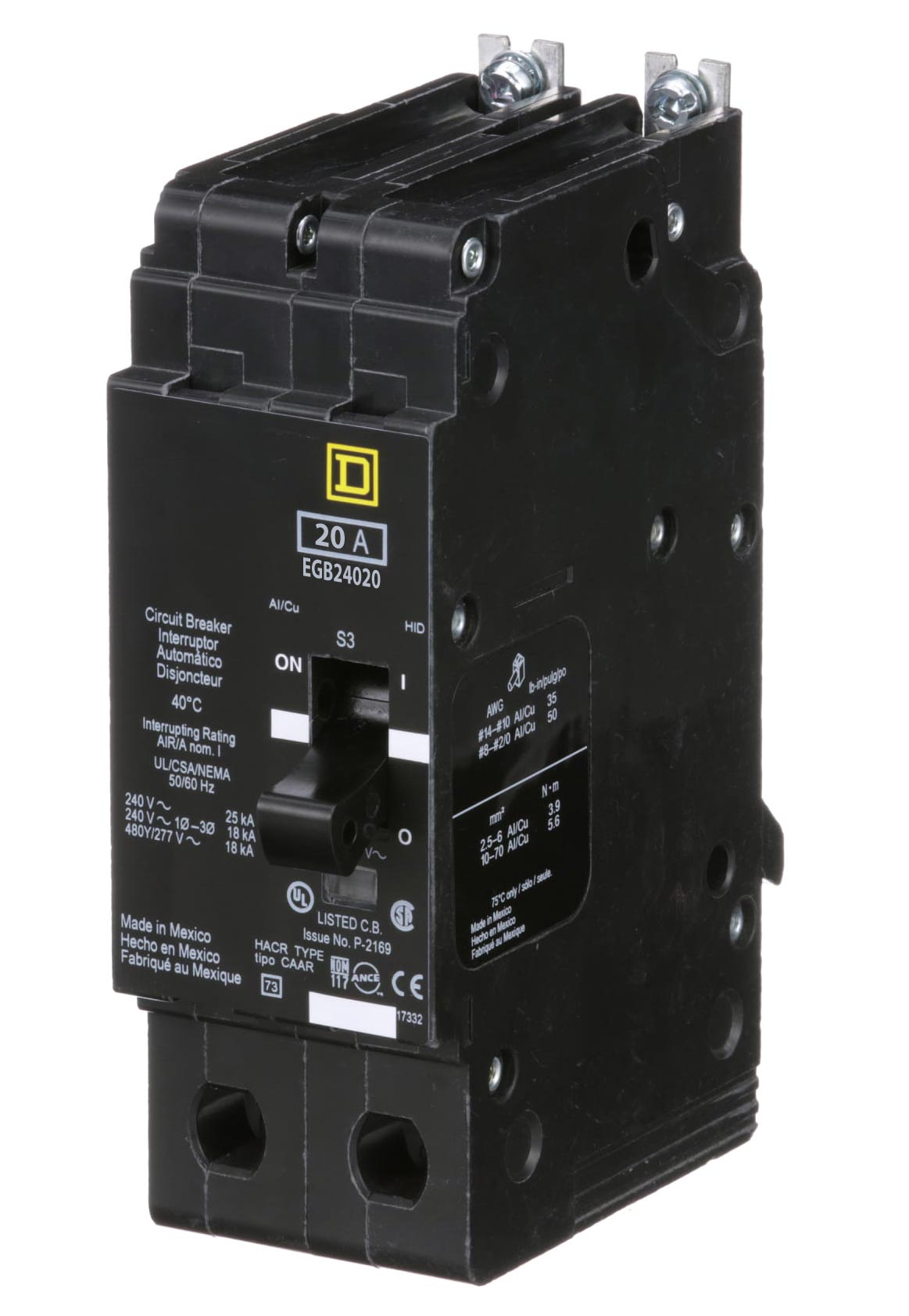

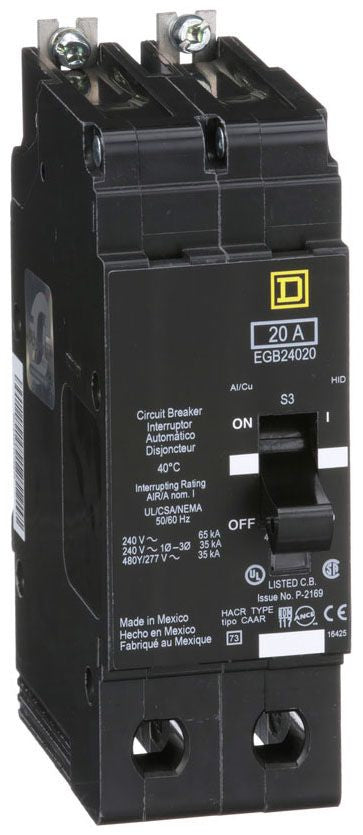

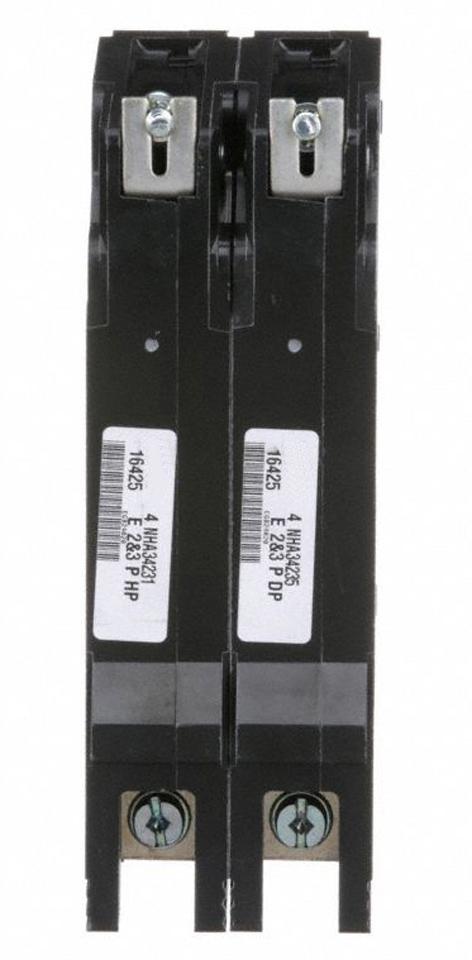

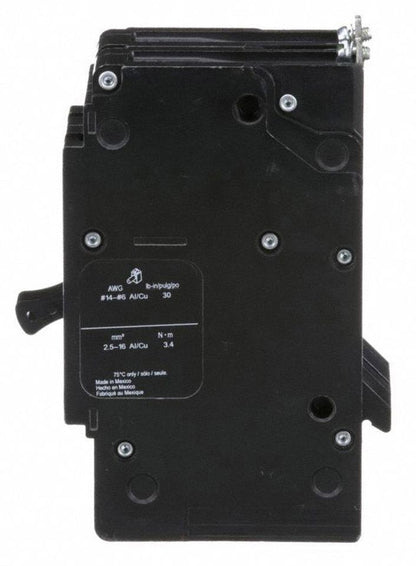

Square D EGB24020 Circuit Breaker | 480V 20A 2P 35kA@480V Bolt-on EGB Series

Product Description:
The Square D EGB24020 is a Molded Case Circuit Breaker from the EGB Series. It features a 2-pole design with a 480V voltage rating and 20A amperage. This breaker offers Thermal Magnetic protection and has an AIC rating of 35kA@480V. It uses a Bolt-on connection for secure installation.

Key Features:
✔ Part Number: EGB24020
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: EGB Series
✔ Type: EGB
✔ Voltage: 480
✔ Amperage: 20
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 35kA@480V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: G; E-Frame
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG (Cu/Al)
✔ Protection: Thermal Magnetic
✔ UPC: 785901311119
✔ GTIN: 00785901311119
✔ Country of Origin: Mexico
✔ Dimensions: 1.96 in x 5.66 in
✔ Weight: 1.19
✔ Panel Type: NF panelboard
✔ Standards: cULus
✔ Certification: cULus
✔ Wire Size: AWG 12...AWG 6 aluminum, AWG 14...AWG 6 copper
