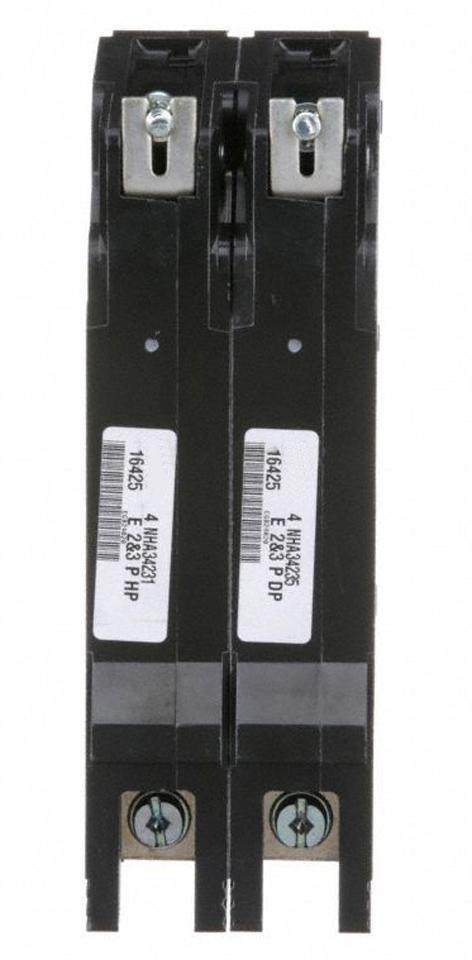

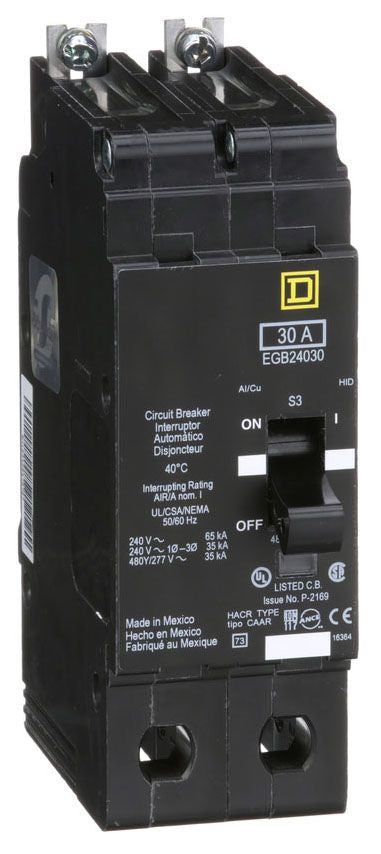

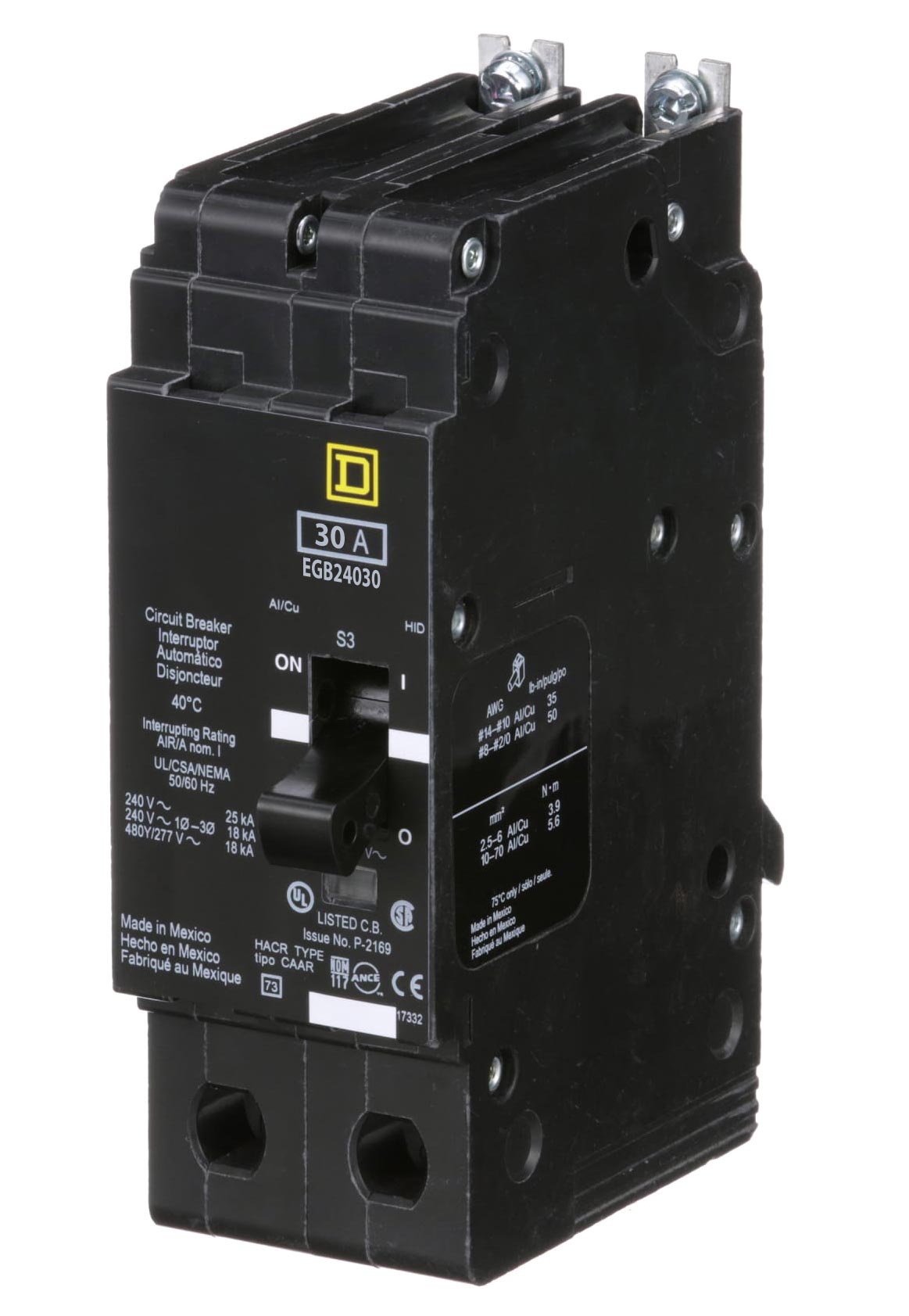

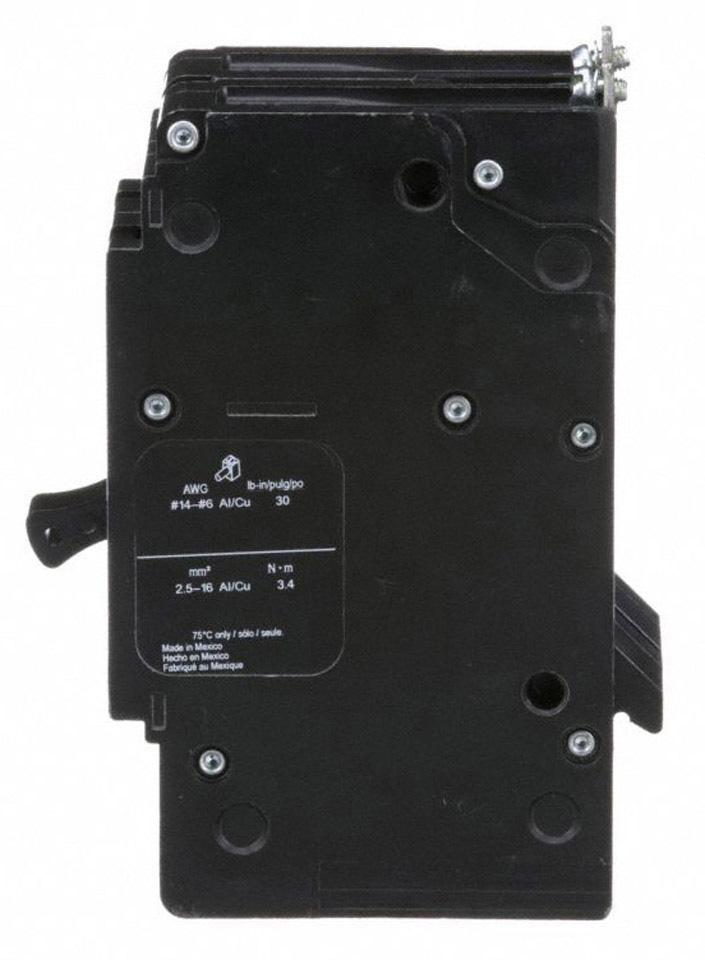

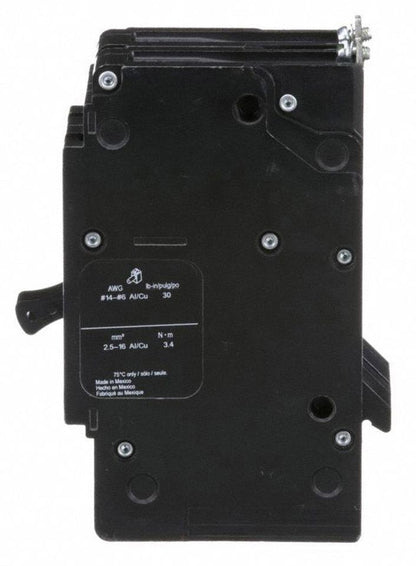

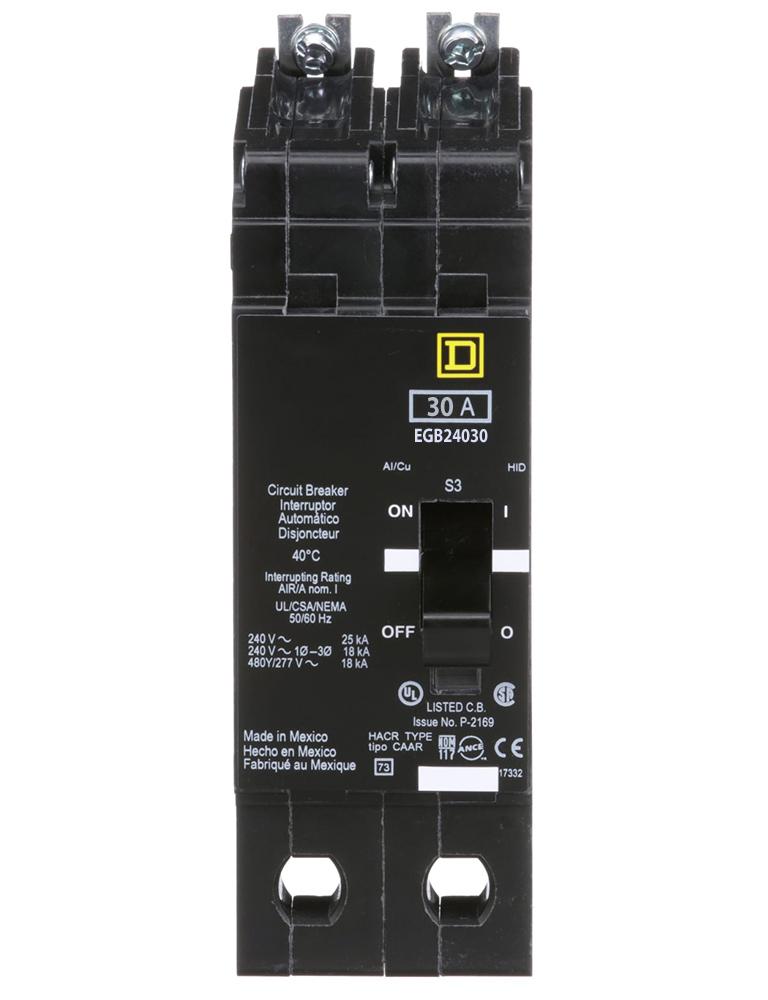

Square D EGB24030 Circuit Breaker | 480V 30A 2 Pole 35kA@480V EGB Series

Product Description:
The Square D EGB24030 is a reliable molded case circuit breaker designed for efficient electrical distribution. It features a 2-pole configuration with a 480 Volt, 30 amp rating, and an AIC rating of 35kA@480V. This circuit breaker utilizes a bolt-on connection and includes thermal magnetic protection for enhanced safety.

Key Features:
✔ Part Number: EGB24030
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: EGB Series
✔ Type: EGB
✔ Voltage: 480
✔ Amperage: 30
✔ Certification: cULus
✔ UPC: 785901397694
✔ GTIN: 00785901397694
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 35kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: G; E-Frame
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG (Cu/Al)
✔ Protection: Thermal Magnetic
✔ Dimensions: 1.96 in x 5.66 in
✔ Weight: 2.54
✔ Panel Type: NF panelboard
✔ Country of Origin: Mexico
