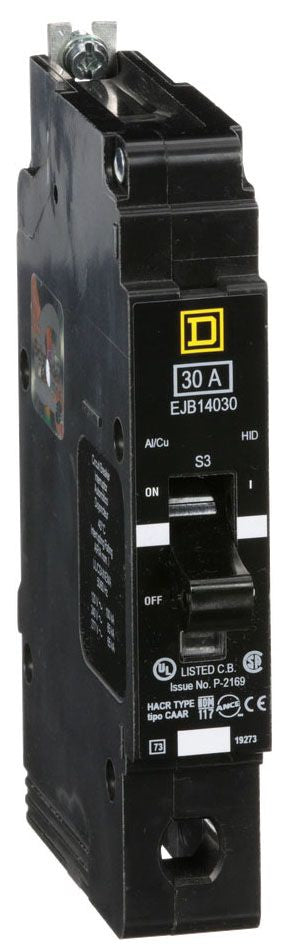

Square D EJB14030 Circuit Breaker | 277V 30A 1P 65kA@480V Bolt-On EJB Series

Product Description:
The Square D EJB14030 is a Molded Case Circuit Breaker from the EJB Series. It features a 1-pole design with a 277V voltage rating and 30A amperage capacity. This breaker offers Thermal Magnetic protection and has an AIC rating of 65kA@480V. It uses a Bolt-On connection for secure installation.

Key Features:
✔ Part Number: EJB14030
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: EJB Series
✔ Type: EJB
✔ Voltage: 277
✔ Amperage: 30
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 65kA@480V
✔ Connection: Bolt-On
✔ Protection: Thermal Magnetic
✔ UPC: 785901130529
✔ GTIN: 00785901130529
✔ Country of Origin: United States
✔ Dimensions: Height 6.64 in (168.66 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Panel Type: NF panelboard
✔ Certification: cULus
✔ Wire Size: AWG 12...AWG 6 aluminum
AWG 14...AWG 6 copper
