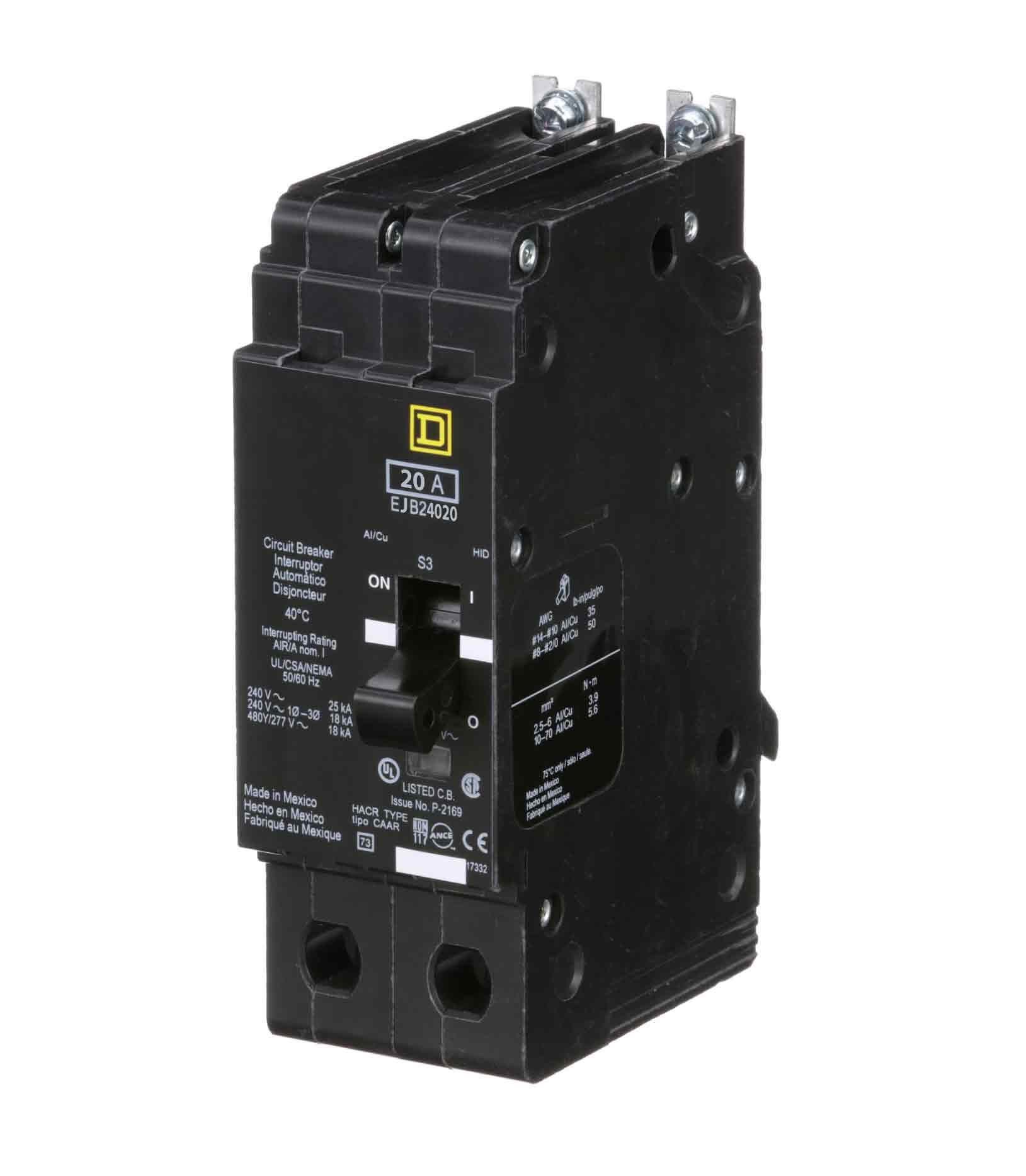

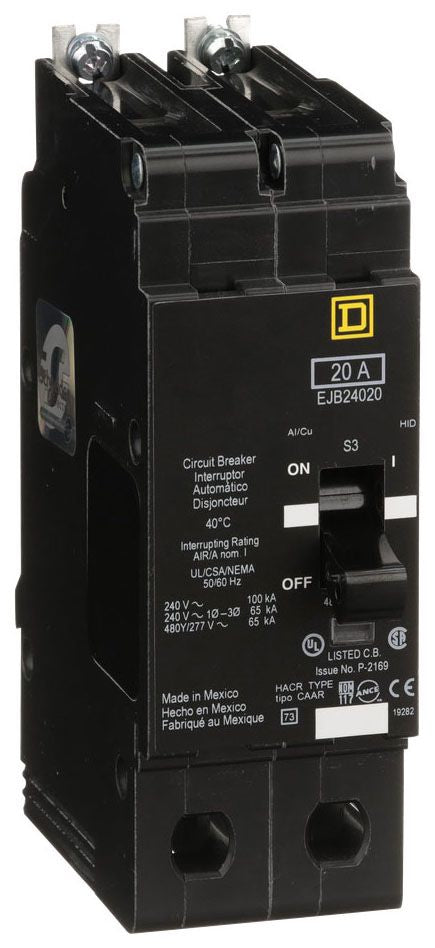

Square D EJB24020 Molded Case Circuit Breaker | 480V 20A 2P 65kA@480V Bolt-On EJB Series

Product Description:
The Square D EJB24020 is a molded case circuit breaker designed for reliable electrical protection. It operates at 480 volts with a 20 amp rating and features thermal magnetic protection for safety. This 2-pole breaker is part of the EJB Series and uses a bolt-on connection for secure installation.

Key Features:
✔ Part Number: EJB24020
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: EJB Series
✔ Type: EJB
✔ Voltage: 480
✔ Amperage: 20
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 65kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Protection: Thermal Magnetic
✔ UPC: 785901335214
✔ GTIN: 00785901335214
✔ Country of Origin: United States
✔ Dimensions: Height 5.66 in (143.76 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Panel Type: NF panelboard
✔ Certification: cULus
✔ Wire Size: AWG 12...AWG 6 aluminum
AWG 14...AWG 6 copper
