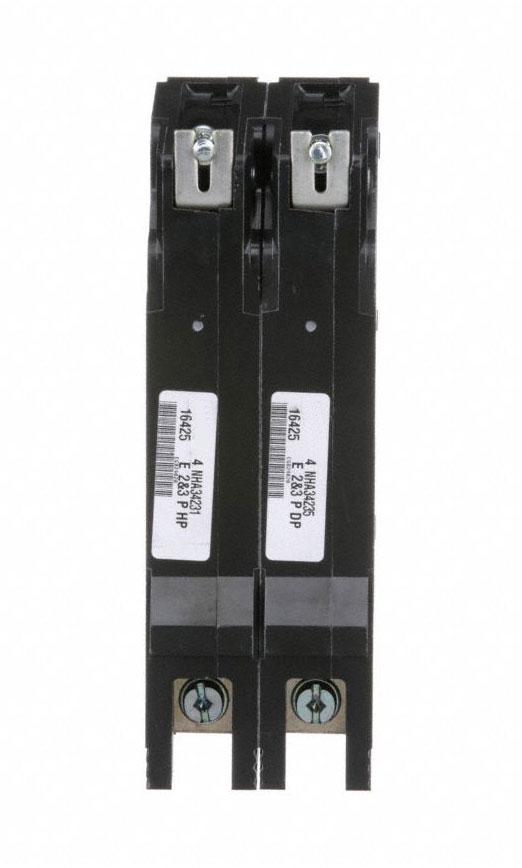

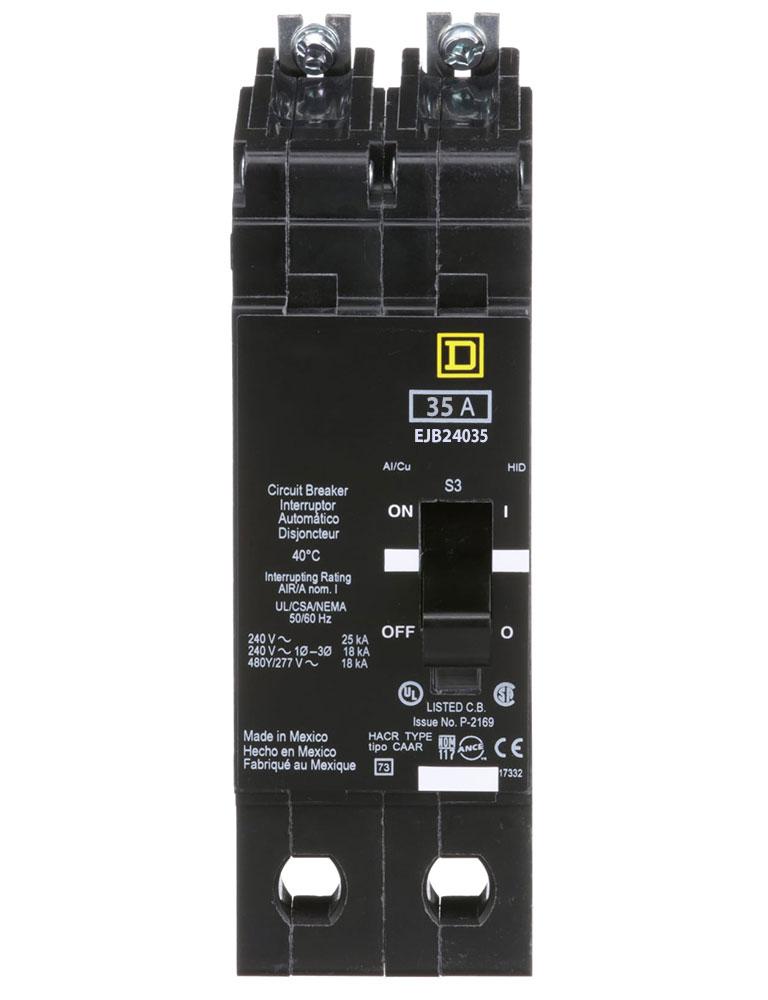

Square D EJB24035 Circuit Breaker | 480V 35A 2P 65kA@480V Bolt-On EJB Series

Product Description:
The Square D EJB24035 is a Molded Case Circuit Breaker from the EJB Series. It features a 2-pole design with a 480V voltage rating and 35A amperage capacity. This breaker offers Thermal Magnetic protection and has an AIC rating of 65kA@480V. It uses a Bolt-On connection for secure installation.

Key Features:
✔ Part Number: EJB24035
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: EJB Series
✔ Type: EJB
✔ Voltage: 480
✔ Amperage: 35
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 65kA@480V
✔ Connection: Bolt-On
✔ Protection: Thermal Magnetic
✔ UPC: 785901128779
✔ GTIN: 00785901128779
✔ Country of Origin: Mexico
✔ Dimensions: Height 5.66 in (143.76 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 1.12
✔ Panel Type: NF panelboard
✔ Certification: cULus
✔ Wire Size: AWG 12...AWG 2/0 aluminum, AWG 14...AWG 2/0 copper
