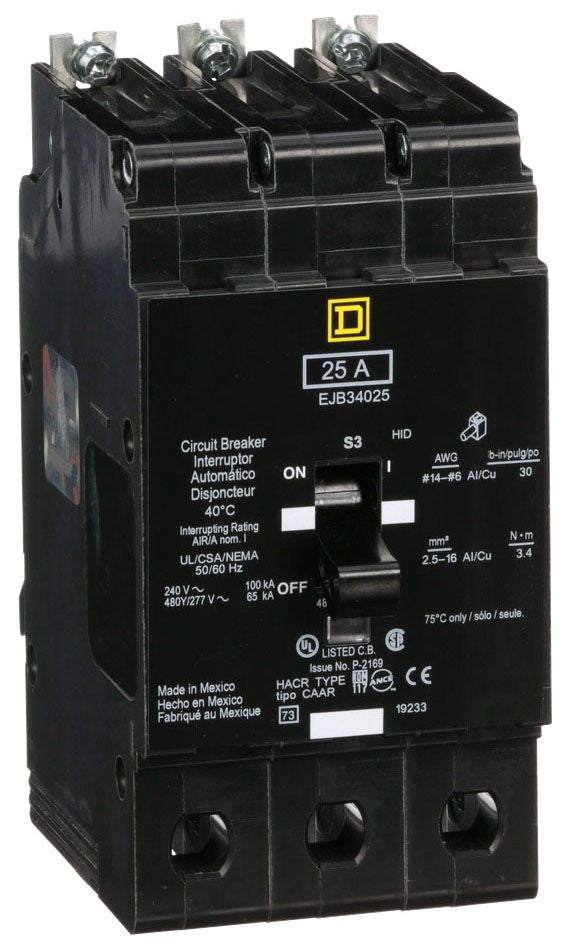

Square D EJB34025 Circuit Breaker | 480V 25A 3P 65kA@480V Bolt-On EJB Series

Product Description:
The Square D EJB34025 is a 3-pole molded case circuit breaker designed for 480V applications. It offers a 25 amp rating and a high interrupting capacity of 65kA at 480V. This thermal magnetic circuit breaker provides reliable protection with bolt-on connections for secure installation.

Key Features:
✔ Part Number: EJB34025
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: EJB Series
✔ Type: EJB
✔ Voltage: 480
✔ Amperage: 25
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 65kA@480V
✔ Connection: Bolt-On
✔ Protection: Thermal Magnetic
✔ UPC: 785901128830
✔ GTIN: 00785901128830
✔ Country of Origin: Mexico
✔ Dimensions: Height 5.66 in (143.76 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 1.7
✔ Panel Type: NF panelboard
✔ Certification: cULus
✔ Wire Size: AWG 12...AWG 6 aluminum
AWG 14...AWG 6 copper
