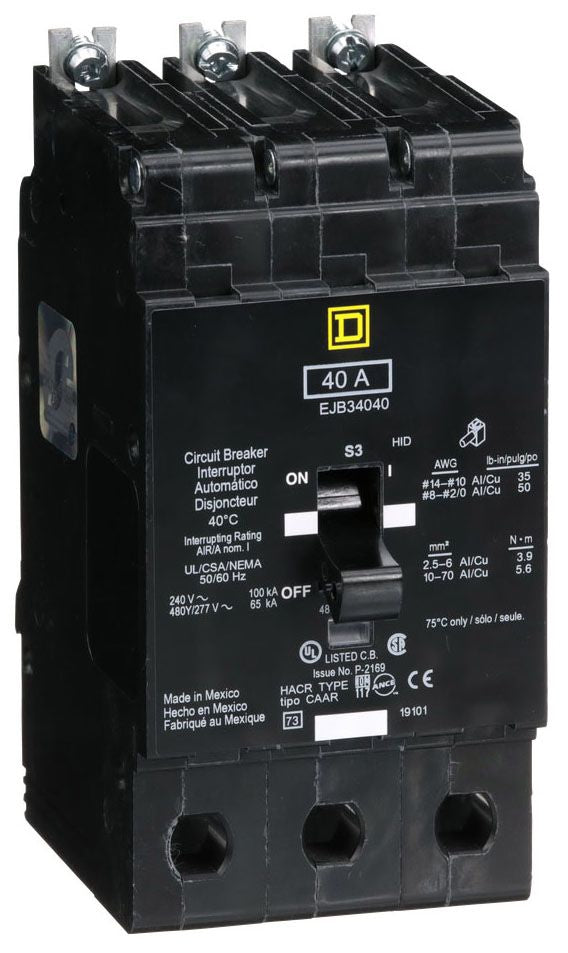

Square D EJB34040 Circuit Breaker | 480V 40A 3P 65kA@480V Bolt-On EJB Series

Product Description:
The Square D EJB34040 is a 3-pole molded case circuit breaker with a 480V, 40A rating and 65kA@480V AIC rating. It features thermal magnetic protection and a bolt-on connection for secure installation. This breaker is part of the EJB Series and is designed for industrial and commercial electrical systems.

Key Features:
✔ Part Number: EJB34040
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: EJB Series
✔ Type: EJB
✔ Voltage: 480
✔ Amperage: 40
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 65kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: J; E-Frame
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 2/0 AWG (Cu/Al)
✔ Protection: Thermal Magnetic
✔ UPC: 785901397700
✔ GTIN: 00785901397700
✔ Country of Origin: Mexico
✔ Dimensions: 2.94 in x 5.66 in
✔ Weight: 1.63
✔ Panel Type: NF panelboard
✔ Standards: cULus
✔ Certification: cULus
✔ Wire Size: AWG 12...AWG 2/0 aluminum, AWG 14...AWG 2/0 copper
