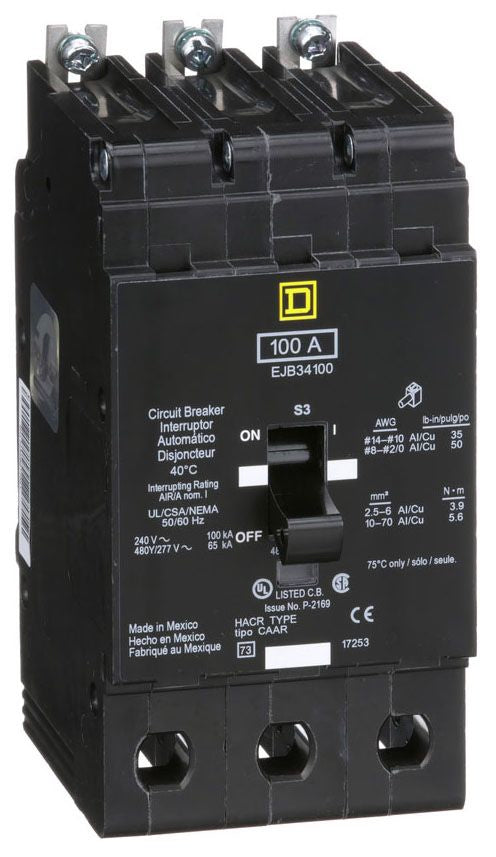

Square D EJB34100 Circuit Breaker | 480V 100A 3P 65kA@480V Bolt-On EJB Series

Product Description:
The Square D EJB34100 is a 3-pole molded case circuit breaker designed for 480V electrical systems. It provides reliable protection with a 100 amp rating and a 65kA interrupting capacity at 480V. This thermal magnetic circuit breaker features a bolt-on connection for secure installation. It is part of the EJB Series family and is suitable for industrial and commercial applications.

Key Features:
✔ Part Number: EJB34100
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: EJB Series
✔ Type: EJB
✔ Voltage: 480
✔ Amperage: 100
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 65kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: J; E-Frame
✔ Wire Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 2/0 AWG (Cu/Al)
✔ Protection: Thermal Magnetic
✔ UPC: 785901090854
✔ GTIN: 00785901090854
✔ Country of Origin: Mexico
✔ Dimensions: 2.94 in x 5.66 in
✔ Weight: 1.66
✔ Panel Type: NF panelboard
✔ Standards: cULus
✔ Certification: cULus
