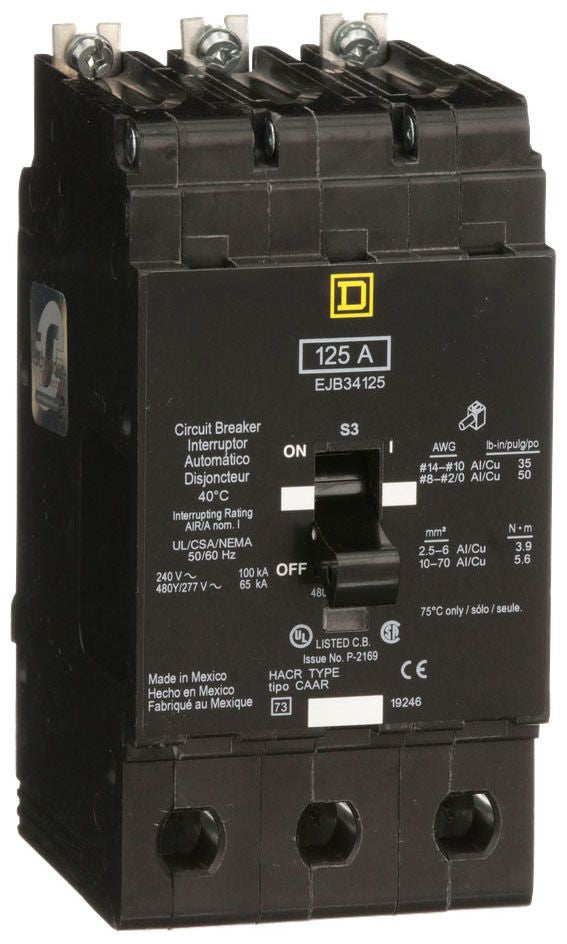

Square D EJB34125 Circuit Breaker | 480V 125A 3P 65kA@480V Bolt-On EJB Series

Product Description:
The Square D EJB34125 is a 3-pole molded case circuit breaker designed for 480V applications. It provides reliable circuit protection with a 125 amp rating and a 65kA interrupting capacity. This thermal magnetic breaker features a bolt-on connection for secure installation in industrial and commercial settings.

Key Features:
✔ Part Number: EJB34125
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: EJB Series
✔ Type: EJB
✔ Voltage: 480
✔ Amperage: 125
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 65kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Protection: Thermal Magnetic
✔ UPC: 785901161240
✔ GTIN: 00785901161240
✔ Country of Origin: Mexico
✔ Dimensions: Height 5.66 in (143.76 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 1.62
✔ Panel Type: NF panelboard
✔ Certification: cULus
✔ Wire Size: AWG 12...AWG 2/0 aluminum
AWG 14...AWG 2/0 copper
