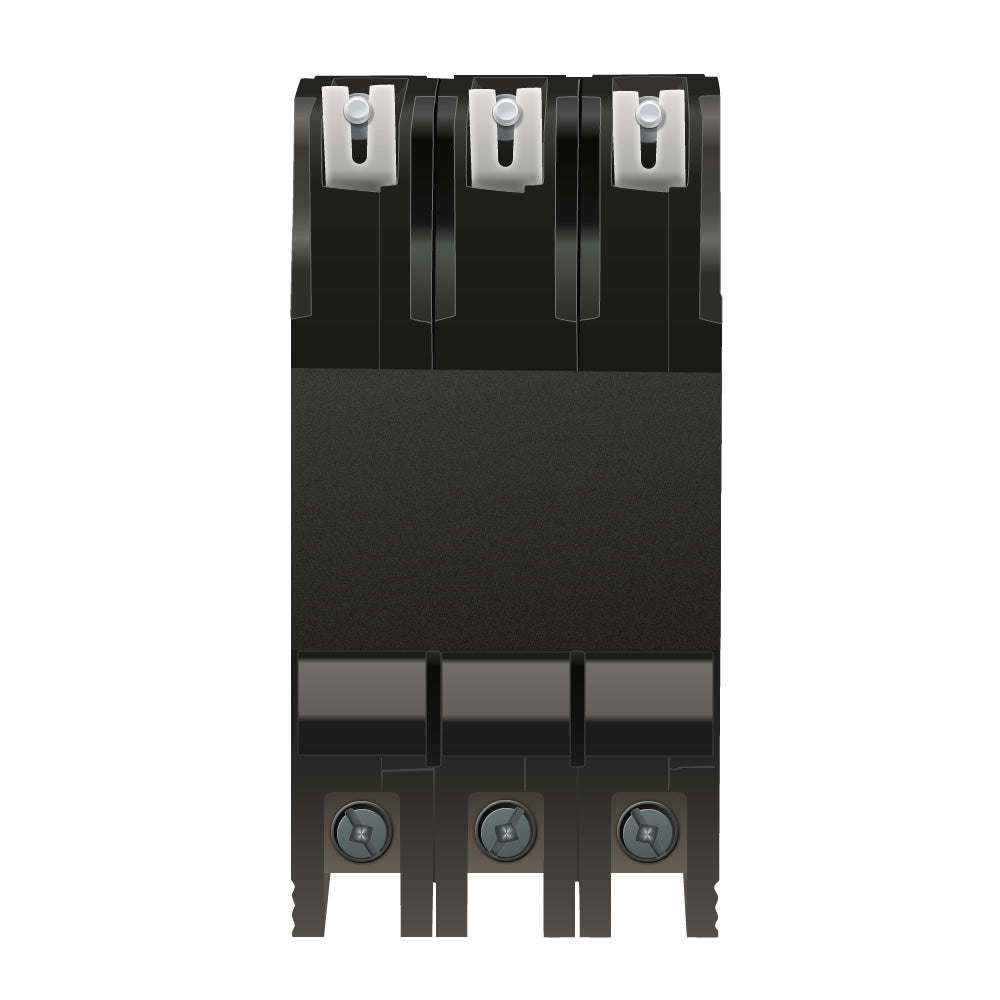

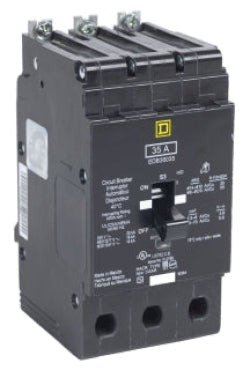

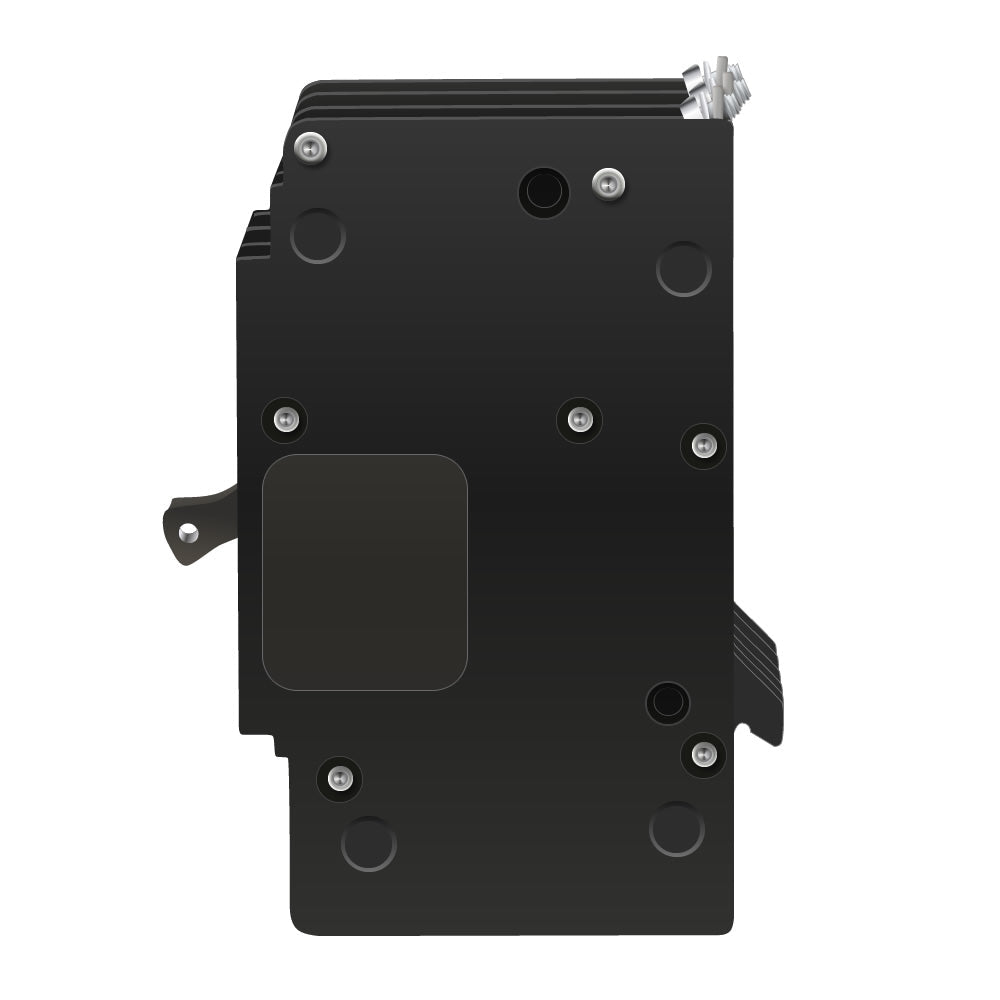

Square D EJB36040 Circuit Breaker | 600V 40A 3P 65kA@480V Bolt-On EJB Series

Product Description:
The Square D EJB36040 is a Molded Case Circuit Breaker from the EJB Series. It features a 3-pole design with a 600V, 40A rating and a 65kA@480V AIC rating. This circuit breaker uses a Bolt-On connection and provides Thermal Magnetic protection for reliable performance.

Key Features:
✔ Part Number: EJB36040
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: EJB Series
✔ Type: EJB
✔ Voltage: 600
✔ Amperage: 40
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 65kA@480V
✔ Connection: Bolt-On
✔ Protection: Thermal Magnetic
✔ UPC: 785901406709
✔ GTIN: 00785901406709
✔ Country of Origin: United States
✔ Dimensions: Height 5.66 in (143.76 mm) x Depth 5.38 in (136.65 mm) x Width 5.64 in (143.26 mm)
✔ Weight: 1.63
✔ Panel Type: NF panelboard
✔ Certification: cULus
✔ Wire Size: AWG 12...AWG 2/0 aluminum, AWG 14...AWG 2/0 copper
