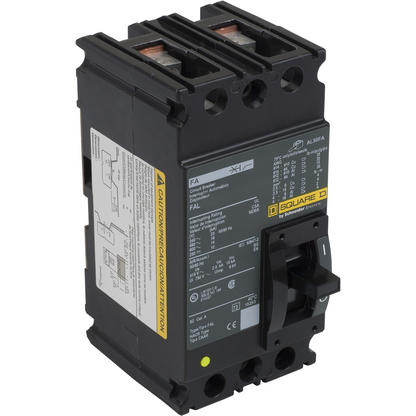

Square D FAL22030 Circuit Breaker | 240V 30A 2P 10kA@240V Feed-Thru FAL Series

Product Description:
The Square D FAL22030 is a Molded Case Circuit Breaker from the FAL Series family. It features a 2-pole design with a 240V, 30A rating and a 10kA@240V AIC rating. This breaker uses Feed-Thru connections and offers Thermal Magnetic protection for reliable performance.

Key Features:
✔ Part Number: FAL22030
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: FAL Series
✔ Type: FAL
✔ Voltage: 240
✔ Amperage: 30
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 10kA@240V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: F Frame
✔ Protection: Thermal Magnetic
✔ UPC: 785901254621
✔ GTIN: 00785901254621
✔ Dimensions: Depth 4.13 in (104.90 mm) Width 3 in (76.20 mm) Height 6.4 in (162.56 mm)
✔ Weight: 3
✔ Certification: UL, CSA
