Product Description:

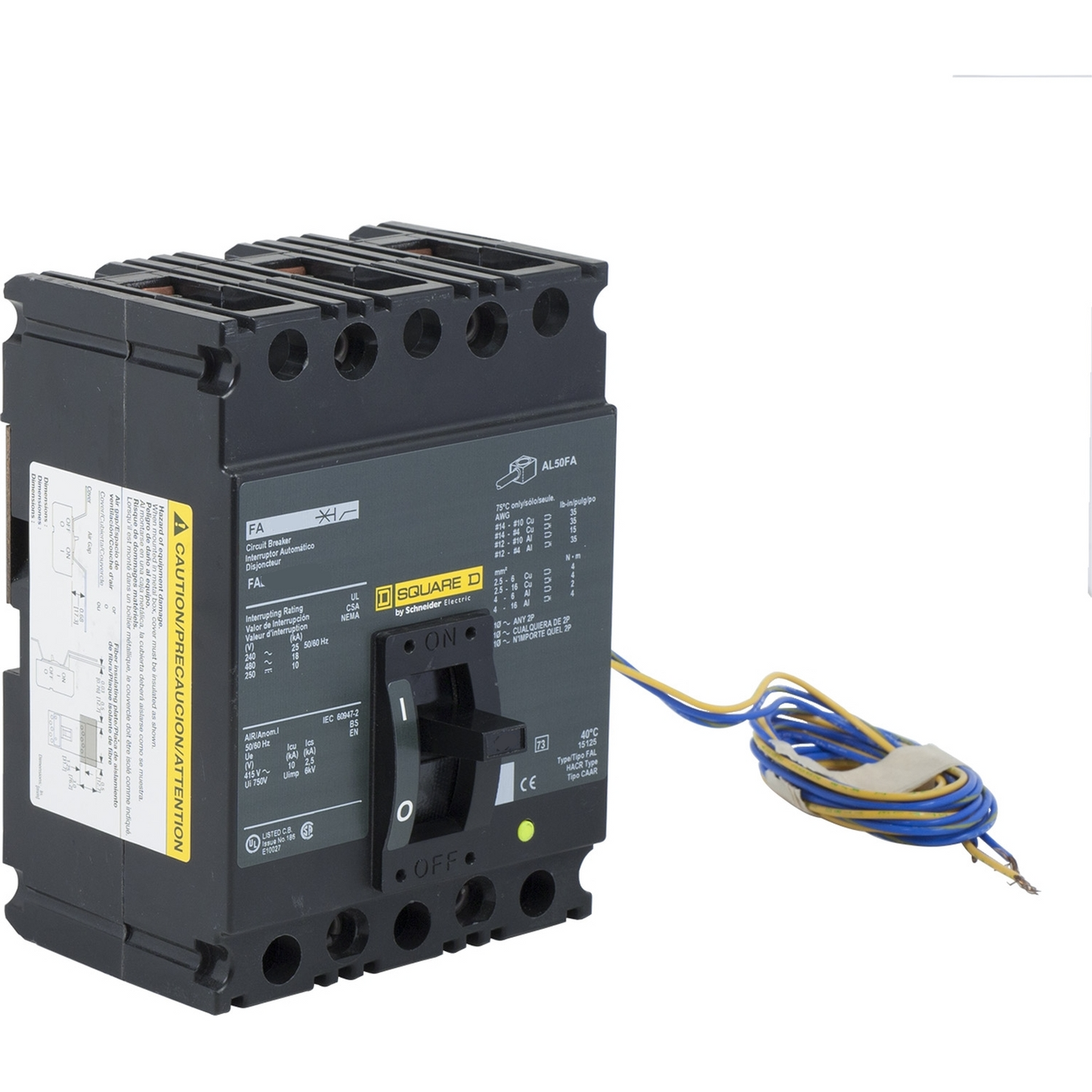

The Square D FAL341001422 is a Molded Case Circuit Breaker from the FAL Series family. It features a 3-pole design with a 480V voltage rating and 100 amp capacity, offering an AIC rating of 18kA@480V. This breaker uses a Feed-Thru connection and includes Thermal Magnetic protection for reliable performance.
Key Features:
✔ Part Number: FAL341001422
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: FAL Series
✔ Type: FAL
✔ Voltage: 480
✔ Amperage: 100
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 18kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: F Frame
✔ Protection: Thermal Magnetic
✔ GTIN: 00785901074625
✔ Dimensions: Depth 4.13 in (104.90 mm) Width 4.5 in (114.30 mm) Height 6.4 in (162.56 mm)
✔ Weight: 5
