Square D FHL36000M4200 Circuit Breaker | 600V 100A 3P 25kA@480V Feed-Thru FHL Series

Product Description:

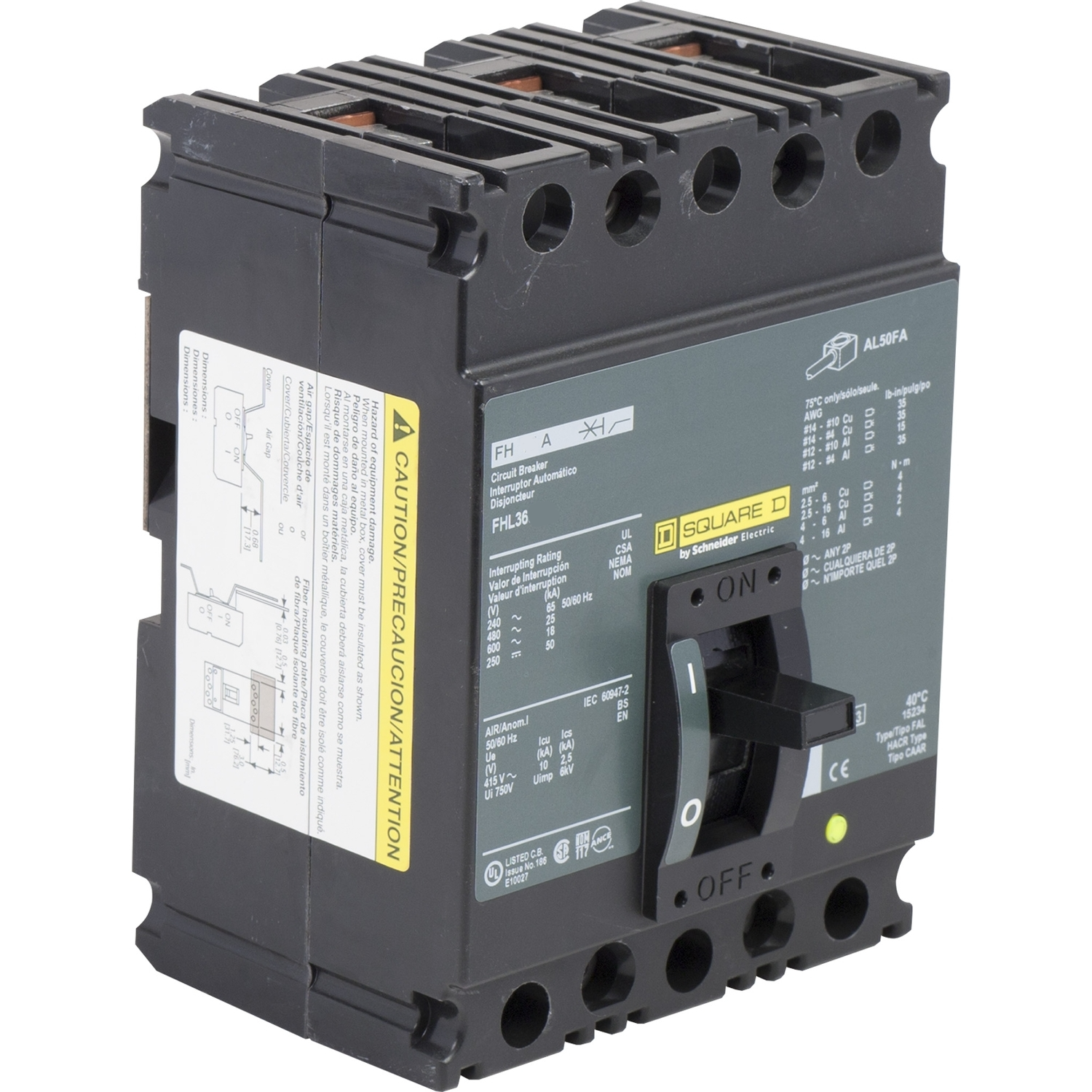

The Square D FHL36000M4200 is a Molded Case Circuit Breaker from the FHL Series. It features a 3-pole design with a 600V voltage rating and 100 amp capacity. This breaker has a 25kA@480V AIC rating and uses Feed-Thru connections for efficient installation. It includes Magnetic Only protection for reliable performance.

Key Features:
✔ Part Number: FHL36000M4200
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: FHL Series
✔ Type: FHL
✔ Voltage: 600
✔ Amperage: 100
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 25kA@480V
✔ Connection: Feed-Thru
✔ Functions: I - Instantaneous
✔ Frame Size: F Frame
✔ Protection: Magnetic Only
✔ UPC: 785901714514
✔ GTIN: 00785901714514
✔ Dimensions: Depth 4.13 in (104.90 mm) Width 4.5 in (114.30 mm) Height 6.4 in (162.56 mm)
✔ Weight: 5
✔ Certification: UL LISTED-CSA
