Product Description:

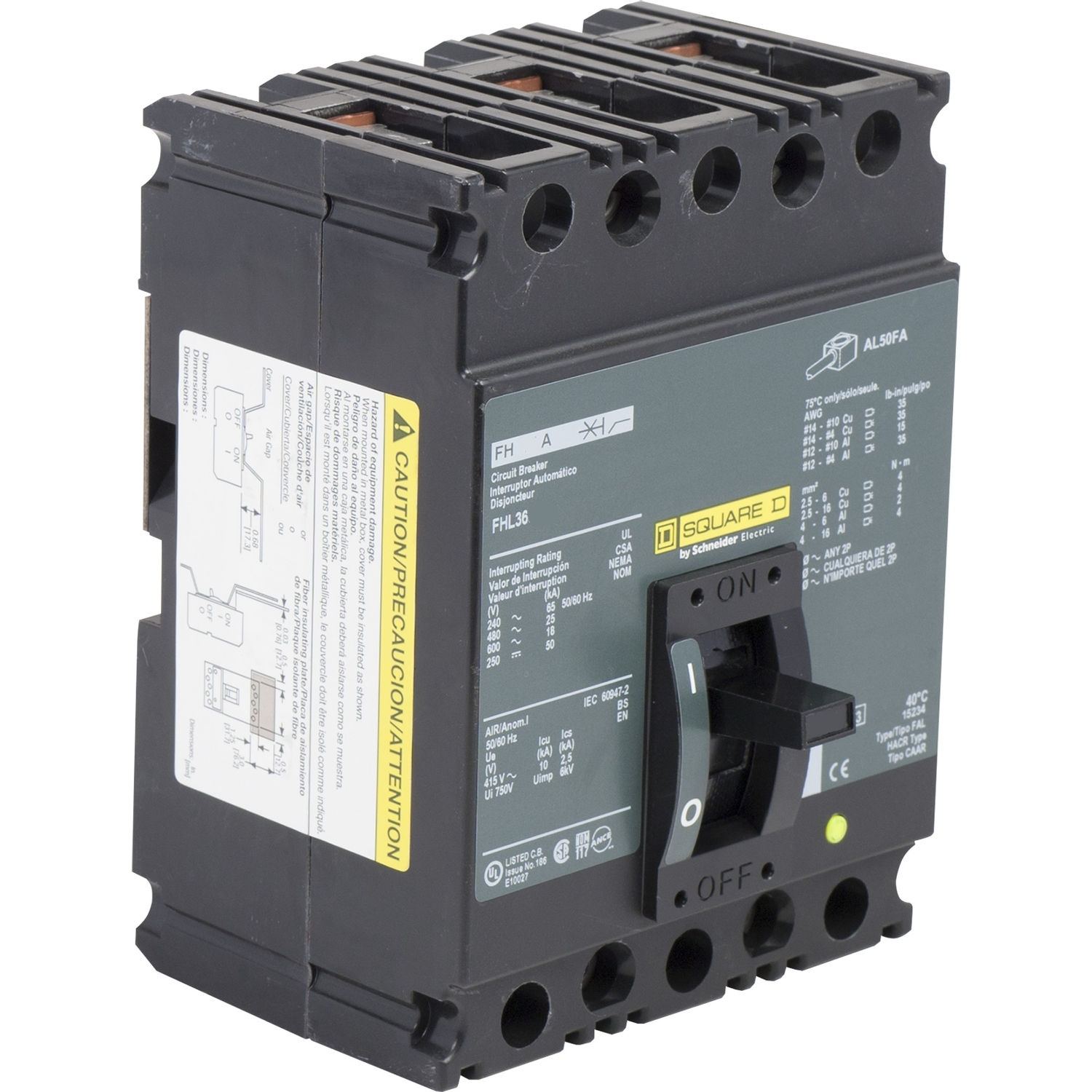

The Square D FHL36025 is a Molded Case Circuit Breaker from the FHL Series. It features a 3-pole design with a 600V, 25A rating and a 25kA@480V AIC rating. This breaker uses Feed-Thru connections and includes Thermal Magnetic protection for reliable performance.
Key Features:
✔ Part Number: FHL36025
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: FHL Series
✔ Type: FHL
✔ Voltage: 600V
✔ Amperage: 25A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 25kA@480V
✔ Connection: Feed-Thru
✔ Protection: Thermal Magnetic
✔ Frame Size: F Frame
✔ Certification: UL Listed, CSA Certified
✔ UPC: 785901563358
✔ GTIN: 00785901563358
✔ Dimensions: 4.13" D x 4.5" W x 6.4" H (104.90mm x 114.30mm x 162.56mm)
✔ Weight: 5 lbs
