Square D

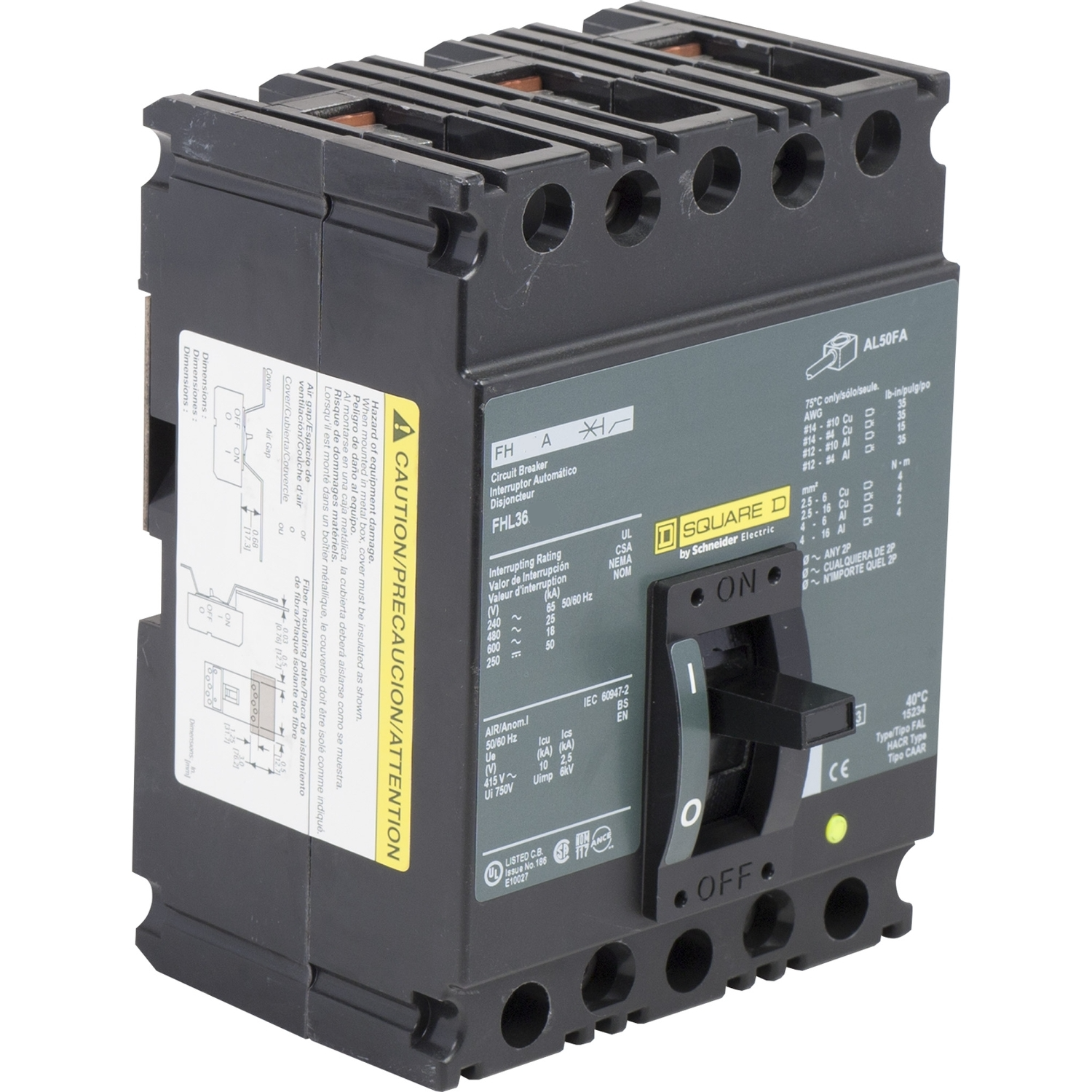

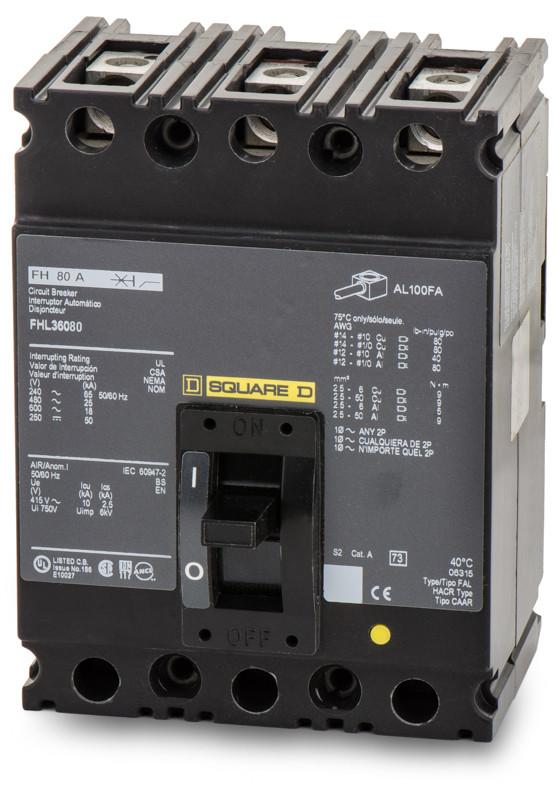

Square D FHL36080 Circuit Breaker | 600V 80A 3P 25kA@480V Feed-Thru FHL Series
Square D FHL36080 Circuit Breaker | 600V 80A 3P 25kA@480V Feed-Thru FHL Series
Price:
Sale
Sold out
Regular price
$890.48 USD
Regular price
$2,773.80 USD
Sale price
$890.48 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Low stock: 2 left
Couldn't load pickup availability
Product Description:
The Square D FHL36080 is a Molded Case Circuit Breaker from the FHL Series. It features 3 poles, 600V voltage, and 80A amperage with a 25kA@480V AIC rating. This breaker uses Feed-Thru connection and offers Thermal Magnetic protection. It is designed for industrial and commercial electrical systems.
Key Features:
✔ Part Number: FHL36080
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: FHL Series
✔ Type: FHL
✔ Voltage: 600
✔ Amperage: 80
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 25kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: F Frame
✔ Protection: Thermal Magnetic
✔ UPC: 785901563365
✔ GTIN: 00785901563365
✔ Dimensions: Depth 4.13 in (104.90 mm) Width 4.5 in (114.30 mm) Height 6.4 in (162.56 mm)
✔ Weight: 5
✔ Certification: CSA-UL LISTED
The Square D FHL36080 is a Molded Case Circuit Breaker from the FHL Series. It features 3 poles, 600V voltage, and 80A amperage with a 25kA@480V AIC rating. This breaker uses Feed-Thru connection and offers Thermal Magnetic protection. It is designed for industrial and commercial electrical systems.
Key Features:
✔ Part Number: FHL36080
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: FHL Series
✔ Type: FHL
✔ Voltage: 600
✔ Amperage: 80
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 25kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: F Frame
✔ Protection: Thermal Magnetic
✔ UPC: 785901563365
✔ GTIN: 00785901563365
✔ Dimensions: Depth 4.13 in (104.90 mm) Width 4.5 in (114.30 mm) Height 6.4 in (162.56 mm)
✔ Weight: 5
✔ Certification: CSA-UL LISTED
