Eaton GD3025 Circuit Breaker | Series C GD 480V 25A

Product Description:

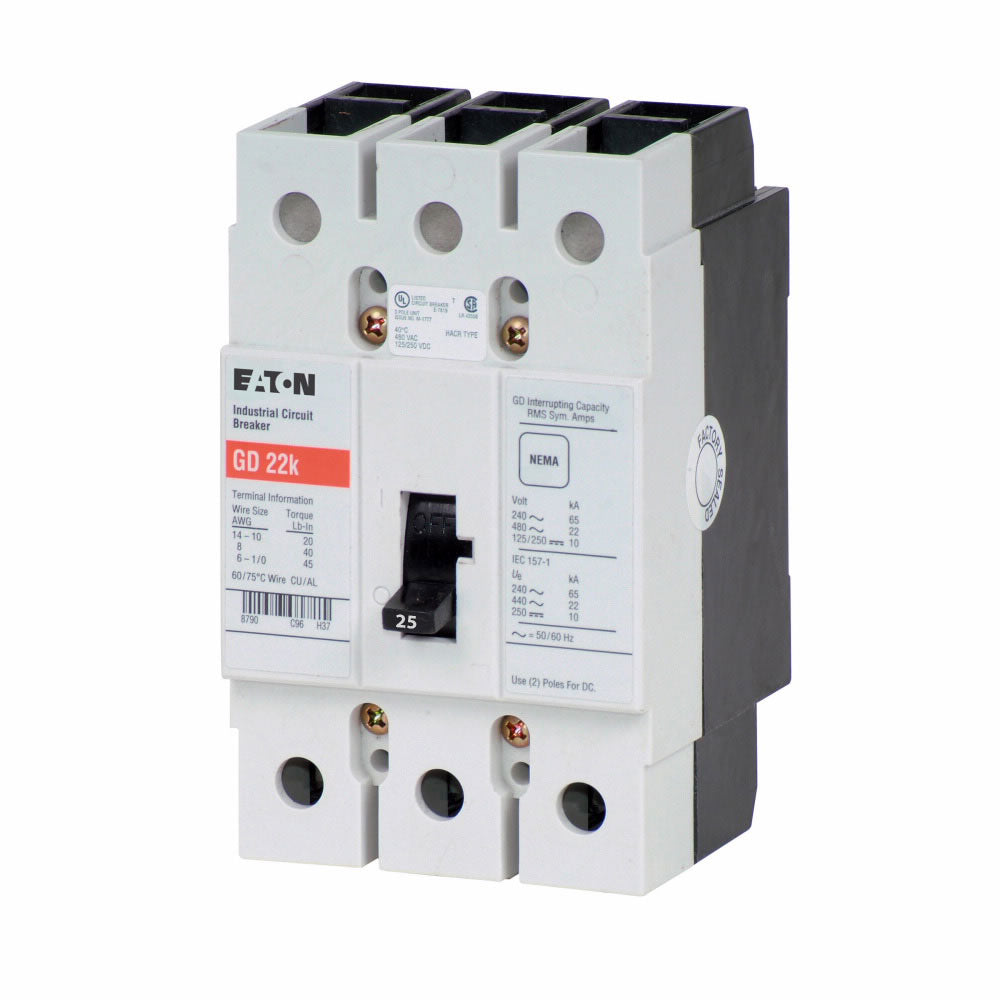

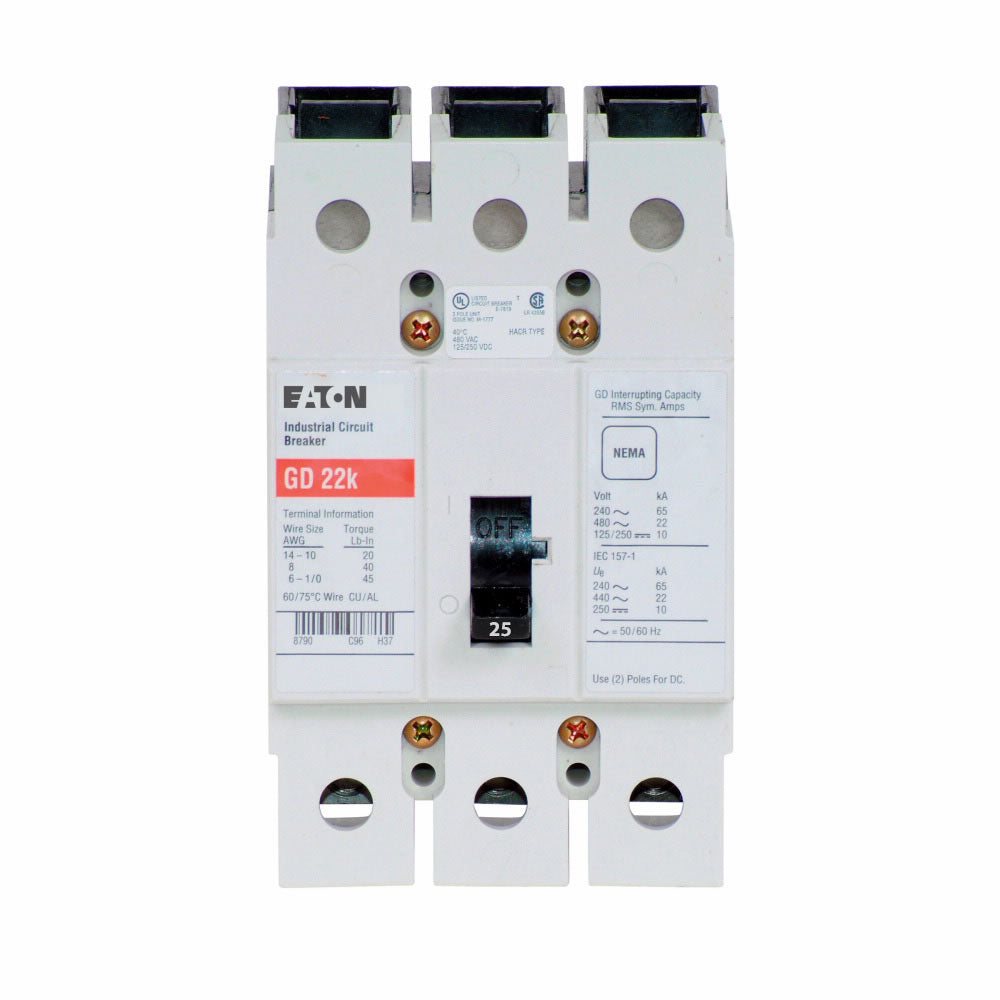

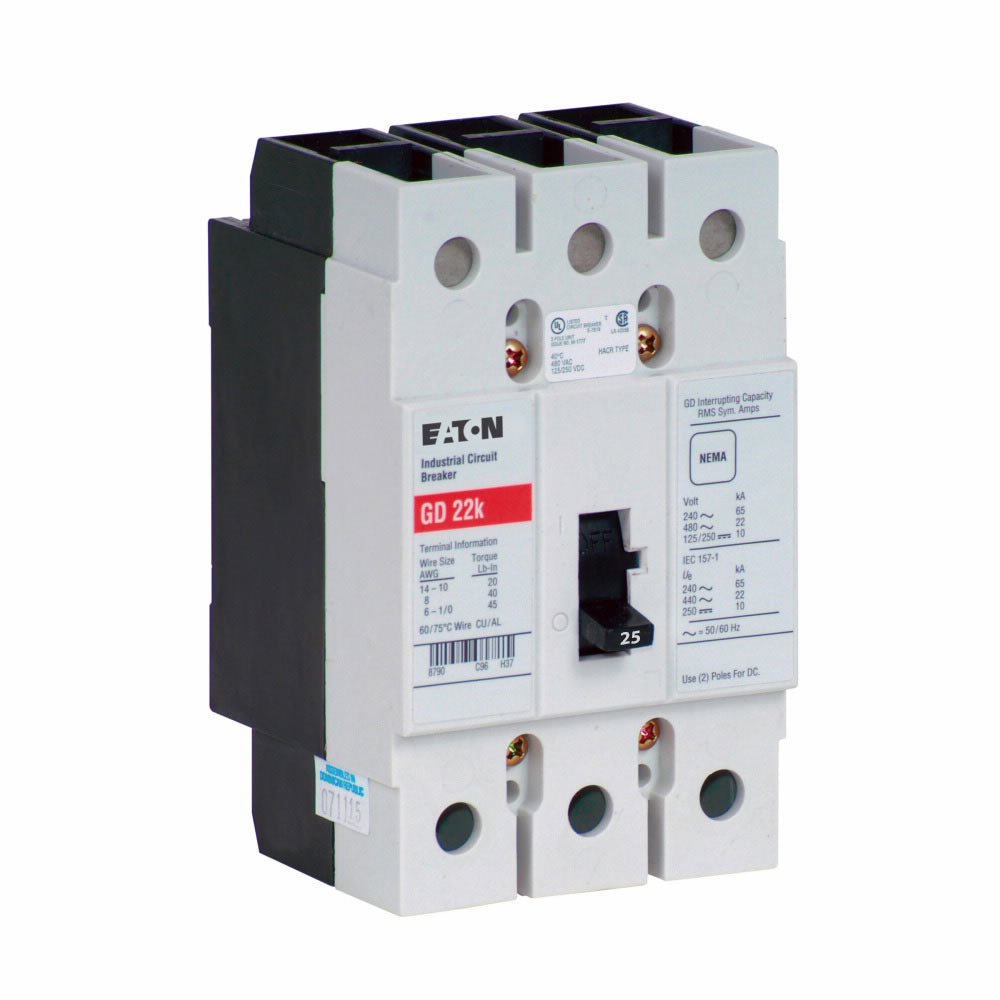

The Eaton GD3025 is a Molded Case Circuit Breaker from the Series C family. It features a 3-pole design with a 480V, 25A rating and a 22kA@480V AIC rating. This breaker uses a Feed-Thru connection and includes Thermal Magnetic protection. It is UL Listed for safety compliance.

Key Features:
✔ Part Number: GD3025
✔ Manufacturer: Eaton
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Series C
✔ Type: GD
✔ Voltage: 480V
✔ Amperage: 25A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 22kA@480V
✔ Connection: Feed-Thru
✔ Protection: Thermal Magnetic
✔ Frame Size: G Frame
✔ Certification: UL Listed
✔ UPC: 786679231043
✔ GTIN: 00786679231043
✔ Country of Origin: Dominican Republic
✔ Dimensions: 2.63in (L) x 4.88in (H) x 3in (W)
✔ Weight: 2 lbs
