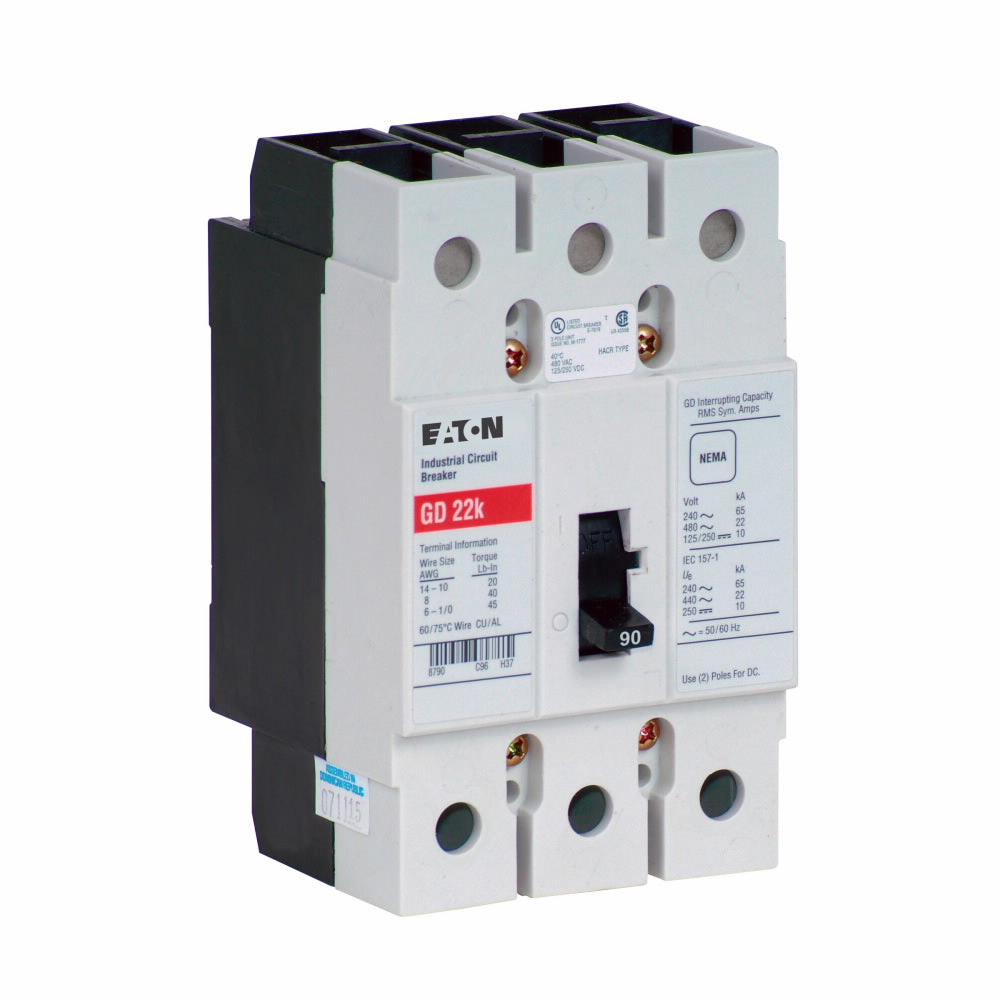

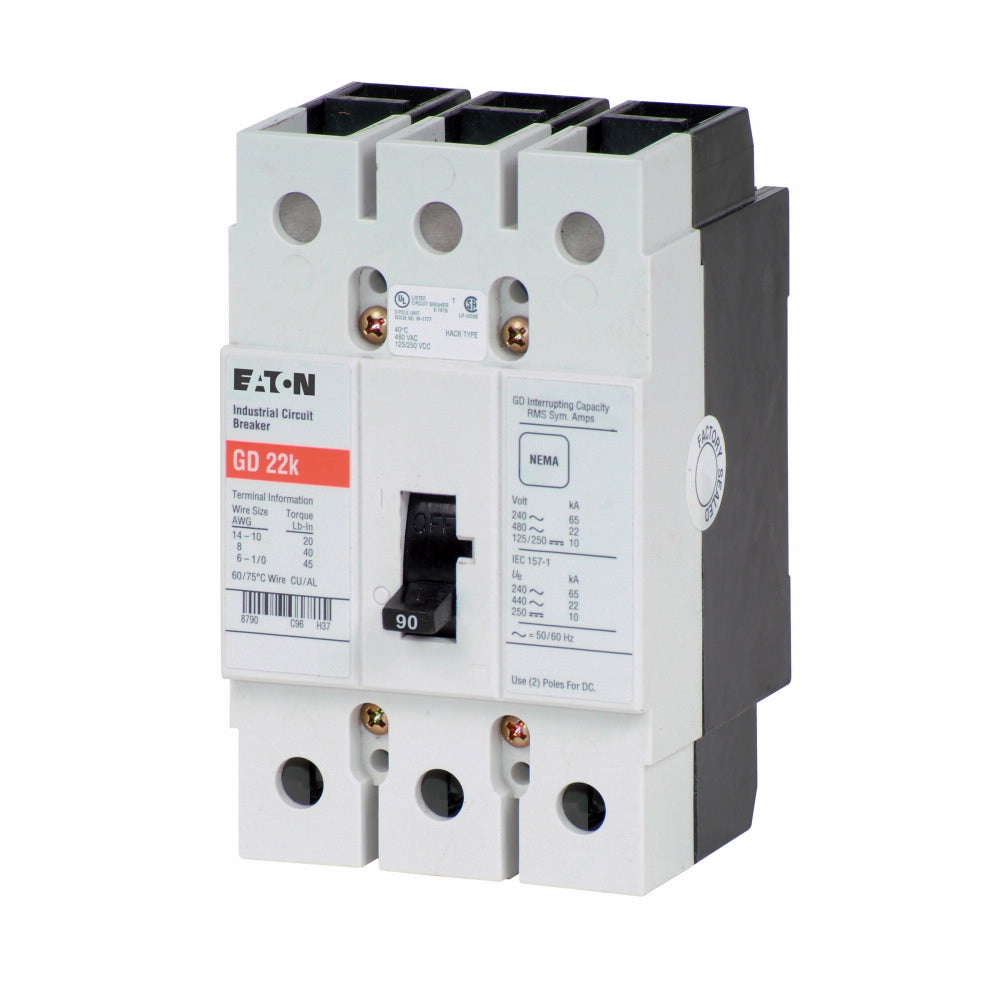

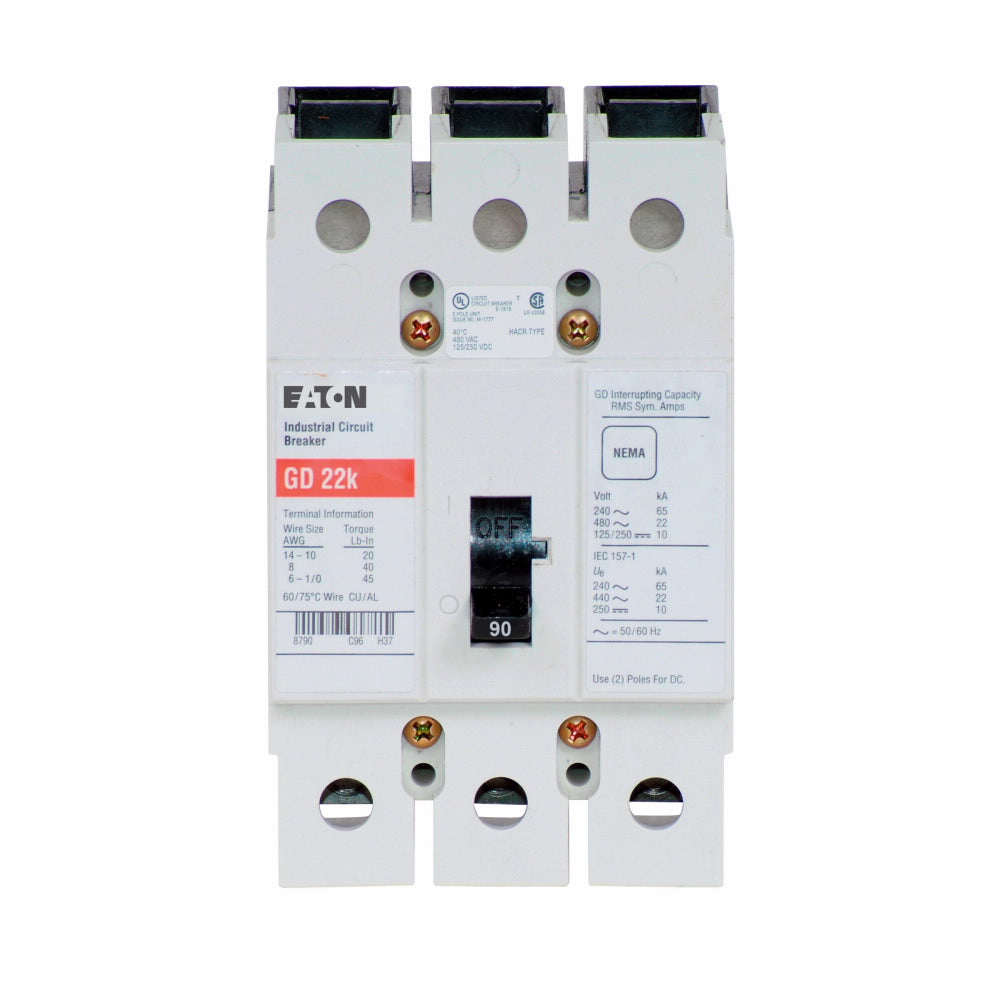

Cutler Hammer GD3090 Circuit Breaker | Series C GD 480V 90A

Product Description:
The Cutler Hammer GD3090 is a Molded Case Circuit Breaker from the Series C family. It features a 3-pole design with a 480V, 90A rating and an AIC rating of 22kA@480V. This breaker uses a Feed-Thru connection and includes Thermal Magnetic protection for reliable performance.

Key Features:
✔ Part Number: GD3090
✔ Manufacturer: Cutler Hammer
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Series C
✔ Type: GD
✔ Voltage: 480V
✔ Amperage: 90A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 22kA@480V
✔ Connection: Feed-Thru
✔ Protection: Thermal Magnetic
✔ Frame Size: G Frame
✔ Certification: UL Listed
✔ UPC: 786679231227
✔ GTIN: 00786679231227
✔ Country of Origin: Dominican Republic
✔ Dimensions: 2.63in (L) x 4.88in (H) x 3in (W)
✔ Weight: 2.1 lbs
