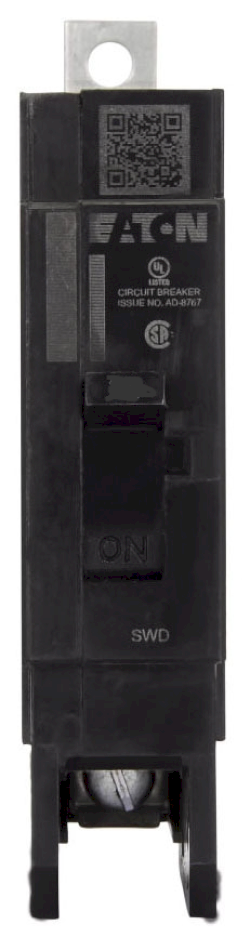

Cutler Hammer GHB1015 Circuit Breaker | Series C GHB 480V 15A

Product Description:
The Cutler Hammer GHB1015 is a Molded Case Circuit Breaker from the Series C family. It is a 1-pole, 480V, 15A breaker with a 14kA@277V AIC rating and Bolt-On connection. This breaker features Thermal Magnetic protection and is compatible with Eaton Powerline Panelboards. It is CSA Certified and UL Listed for safety compliance.

Key Features:
✔ Part Number: GHB1015
✔ Manufacturer: Cutler Hammer
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Series C
✔ Type: GHB
✔ Voltage: 480V
✔ Amperage: 15A
✔ Phase: 1
✔ Poles: 1
✔ AIC Rating: 14kA@277V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Screw Clamp
✔ Frame Size: 100/GHB
✔ MCM Size: Min. Wire Size 14 AWG, Max. Wire Size 10 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Certification: CSA Certified, UL Listed
✔ UPC: 786679023617
