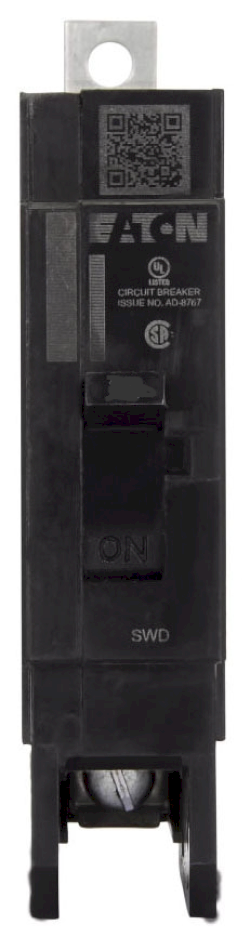

Cutler Hammer GHB1025 Circuit Breaker | Series C GHB 480V 25A

Product Description:
The Cutler Hammer GHB1025 is a Molded Case Circuit Breaker from the Series C family. It is a 1-pole breaker rated for 480V and 25A, with a 14kA@277V AIC rating. This thermal magnetic breaker features a bolt-on connection and is CSA Certified and UL Listed.

Key Features:
✔ Part Number: GHB1025
✔ Manufacturer: Cutler Hammer
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Series C
✔ Type: GHB
✔ Voltage: 480V
✔ Amperage: 25A
✔ Phase: 1
✔ Poles: 1
✔ AIC Rating: 14kA@277V
✔ Connection: Bolt-on
✔ Protection: Thermal Magnetic
✔ Terminal Connection: Screw Clamp
✔ Frame Size: 100/GHB
✔ Wire Size: 14 AWG (Min), 10 AWG (Max)
✔ Certification: CSA Certified, UL Listed
✔ UPC: 786679023631
✔ GTIN: 00786679023631
✔ Country of Origin: Dominican Republic
✔ Dimensions: 1 in x 4 in x 2 in
