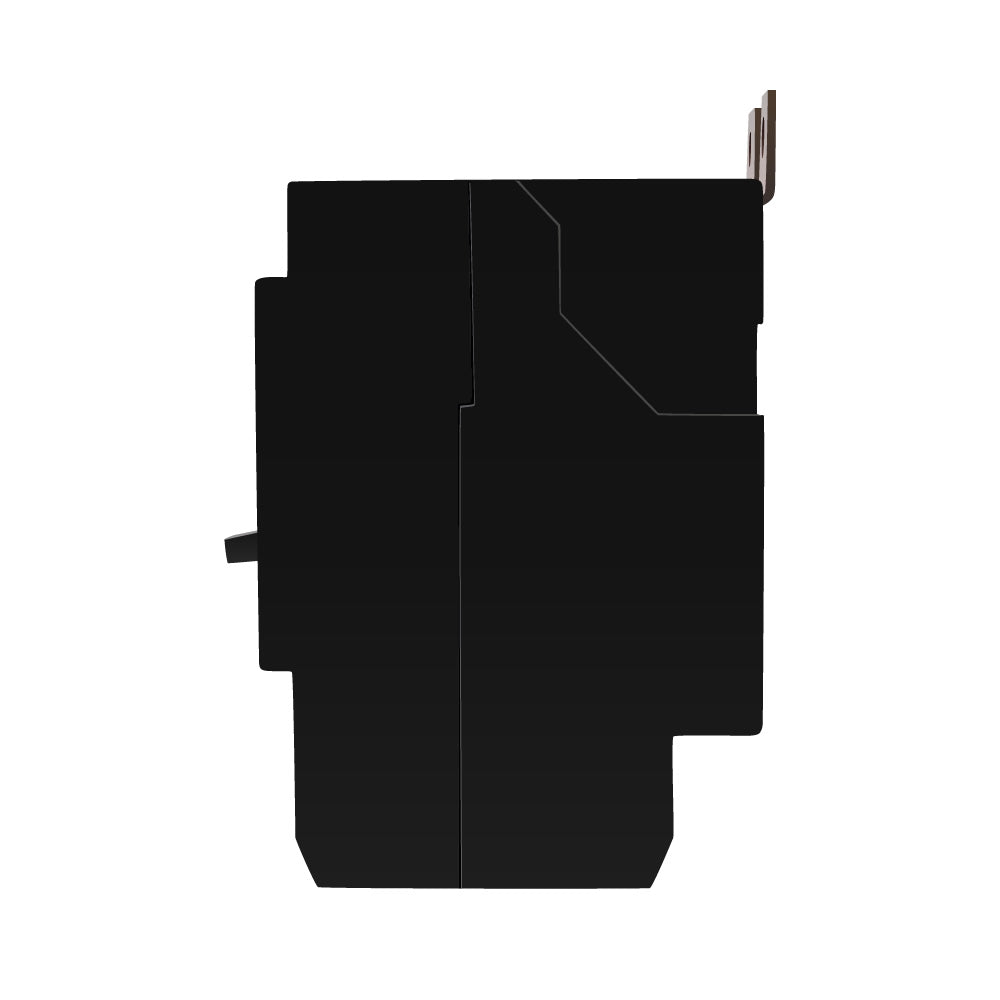

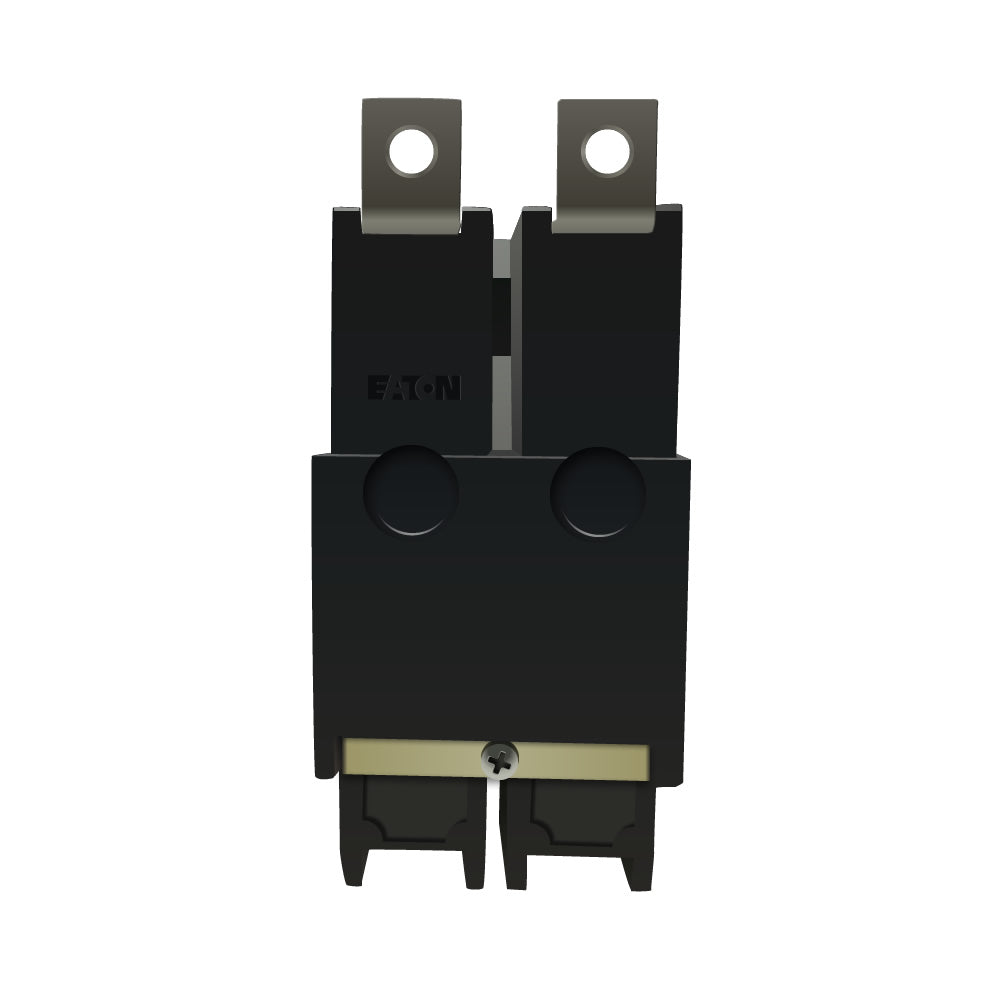

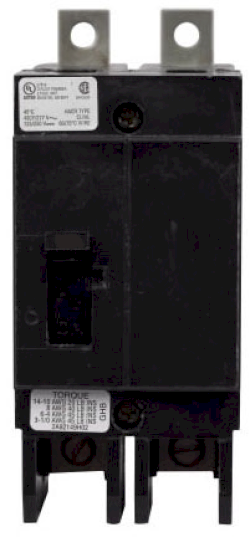

Eaton GHB2015 Circuit Breaker | 15A 2P 480V 14kA@480V GHB

Product Description:
The GHB2015 is a 15 amp, 2-pole molded case circuit breaker designed for reliable protection of branch and feeder circuits. This bolt-on style breaker features a thermal-magnetic trip unit and durable construction for secure mounting in panelboards. It supports operation up to 480V and is UL listed with an interrupt rating of 14kA@480V for consistent, high-performance protection in commercial and industrial applications.

Key Features:
✔ Part Number: GHB2015
✔ Manufacturer: Cutler Hammer
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Series C
✔ Type: GHB
✔ Voltage: 480
✔ Amperage: 15
✔ Poles: 2
✔ AIC rating: 14kA@480V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Screw Clamp
✔ Frame Size: 100/GHB
✔ MCM Size: Min. Wire Size 10 AWG Max. Wire Size 1/0 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 786679911198
✔ GTIN: 00786679911198
✔ Country of Origin: Dominican Republic
✔ Dimensions: 2 in x 4 in x 4 in
✔ Weight: 1
✔ Panel Type: Eaton Powerline Panelboards
✔ Standards: CSA Certified, UL Listed
✔ Certification: CSA Certified, UL Listed
