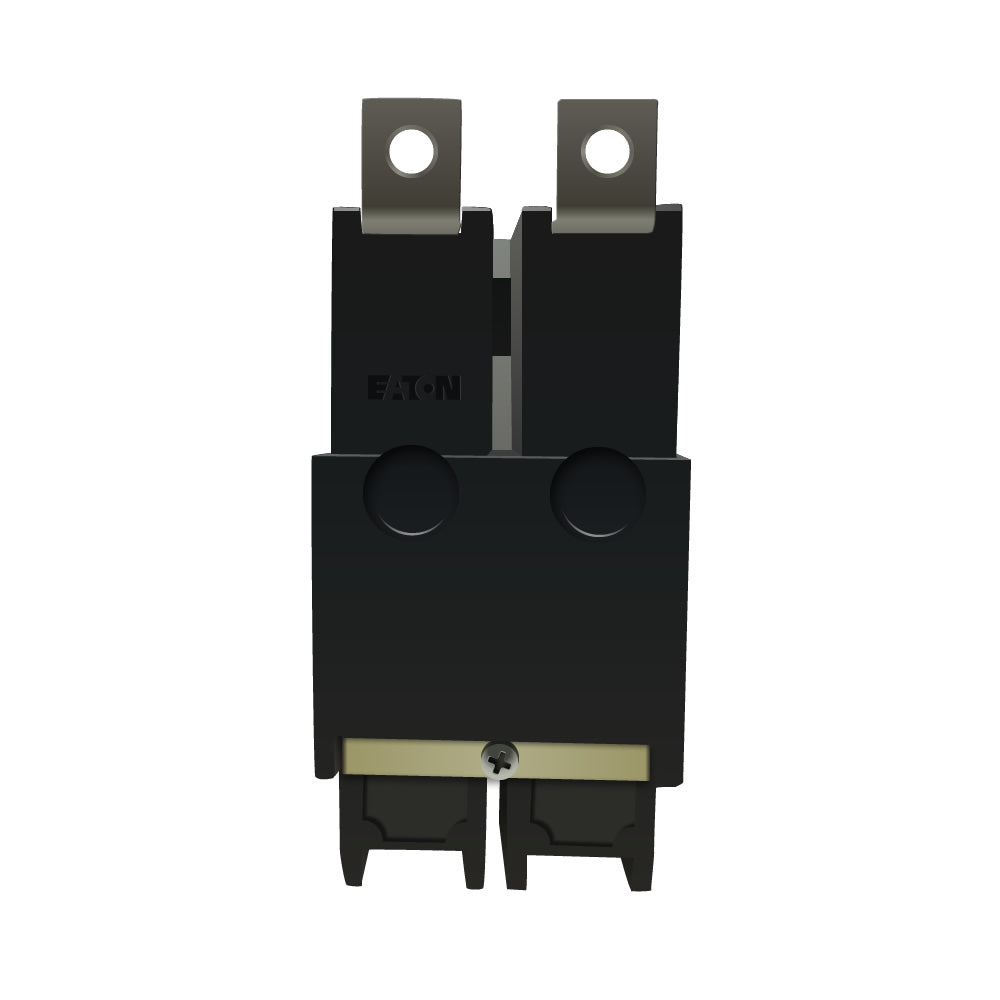

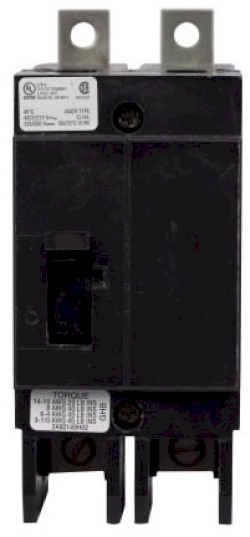

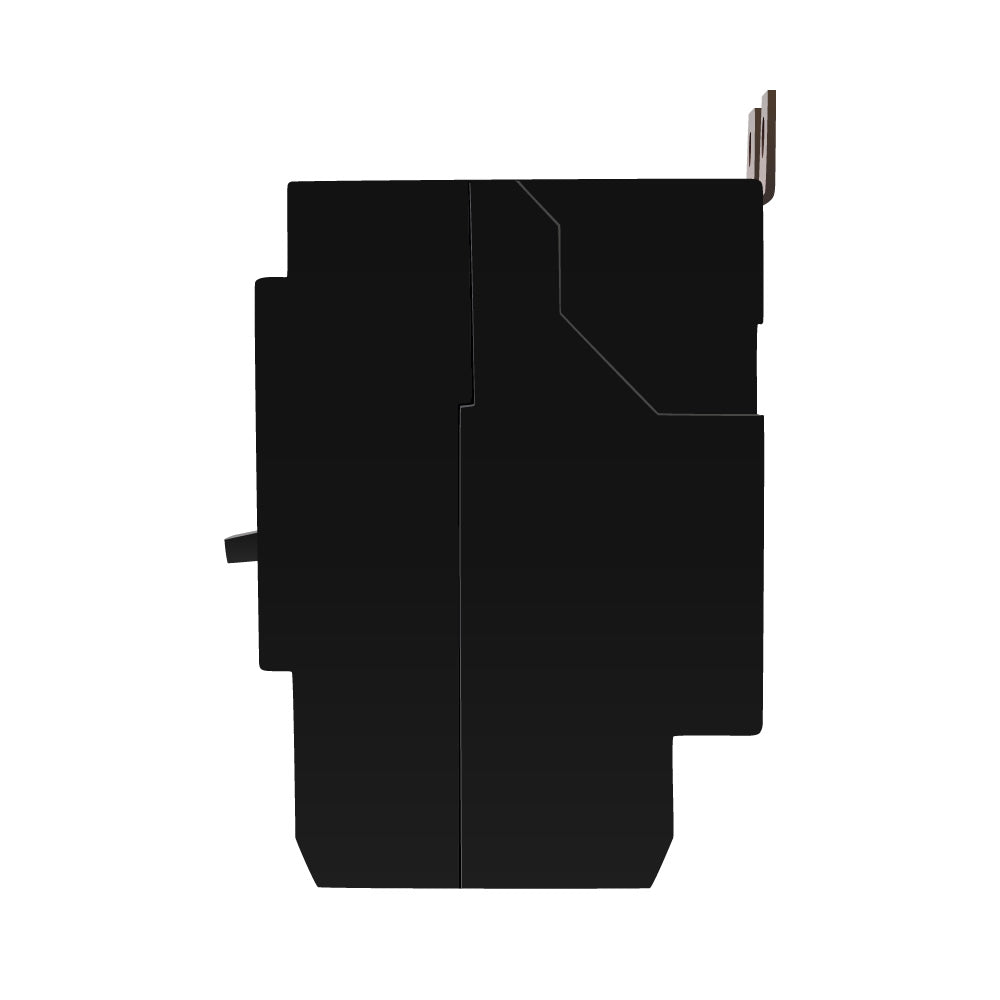

Eaton GHB2025 Circuit Breaker | 480V 25A 2P 14kA@480V Bolt-On GHB

Product Description:
The GHB2025 is a 25 amp, 2-pole molded case circuit breaker from Eaton Cutler Hammer, designed for reliable protection of branch and feeder circuits. It features a bolt-on connection for secure mounting in commercial and industrial panelboards. This thermal-magnetic trip unit breaker operates up to 480V with an interrupt rating of 14kA@480V for consistent performance.

Key Features:
✔ Part Number: GHB2025
✔ Manufacturer: Cutler Hammer
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Series C
✔ Type: GHB
✔ Voltage: 480
✔ Amperage: 25
✔ Poles: 2
✔ AIC rating: 14kA@480V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Screw Clamp
✔ Frame Size: 100/GHB
✔ MCM Size: Min. Wire Size 10 AWG Max. Wire Size 1/0 AWG
✔ Protection: Thermal Magnetic
✔ Frequency: 50/60 Hz
✔ UPC: 786679172452
✔ GTIN: 00786679172452
✔ Country of Origin: Dominican Republic
✔ Dimensions: 2 in x 4 in x 3 in
✔ Weight: 1.21
✔ Panel Type: Eaton Powerline Panelboards
✔ Standards: UL 489
✔ Certification: CSA Certified, UL Listed
✔ Wire Size: 10 to 1/0 AWG
