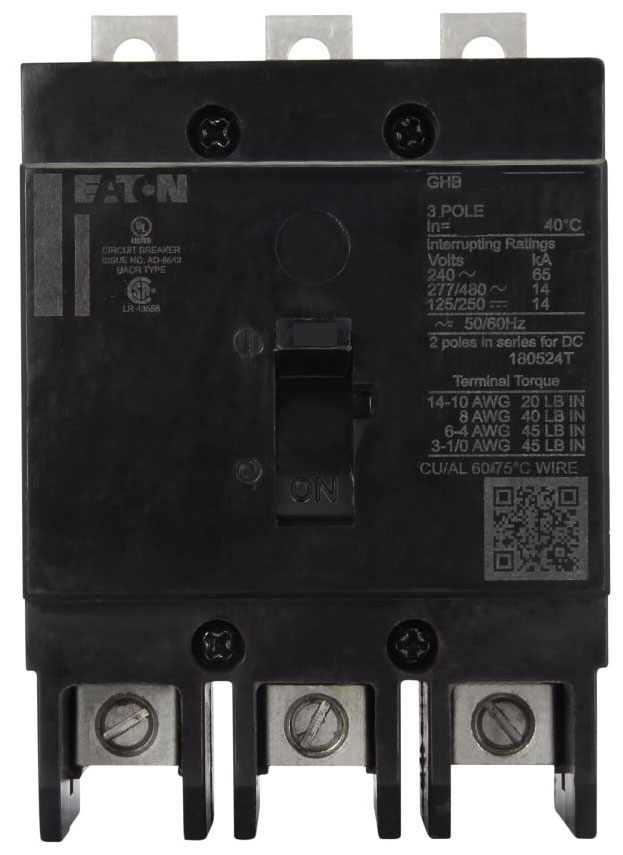

Eaton GHB3020 Circuit Breaker | 20A 3P 480V 14kA@480V Bolt-On GHB

Product Description:
The GHB3020 is a 20 amp, 3-pole molded case circuit breaker from Eaton's GHB Series, designed for reliable protection of branch and feeder circuits in commercial and industrial panelboards. It features a thermal-magnetic trip unit and a secure bolt-on connection for dependable performance. This breaker operates up to 480V and is UL listed with an interrupt rating of 14kA@480V.

Key Features:
✔ Part Number: GHB3020
✔ Manufacturer: Cutler Hammer
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Series C
✔ Type: GHB
✔ Voltage: 480
✔ Amperage: 20
✔ Poles: 3
✔ AIC Rating: 14kA@480V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Screw Clamp
✔ Frame Size: 100/GHB
✔ MCM Size: Min. Wire Size 10 AWG Max. Wire Size 1/0 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Frequency: 50/60 Hz
✔ Certification: CSA Certified, UL Listed
✔ Wire Size: 10 to 1/0 AWG
