Westinghouse GHQ1015 Circuit Breaker | Series C GHQ 277V 15A

Product Description:

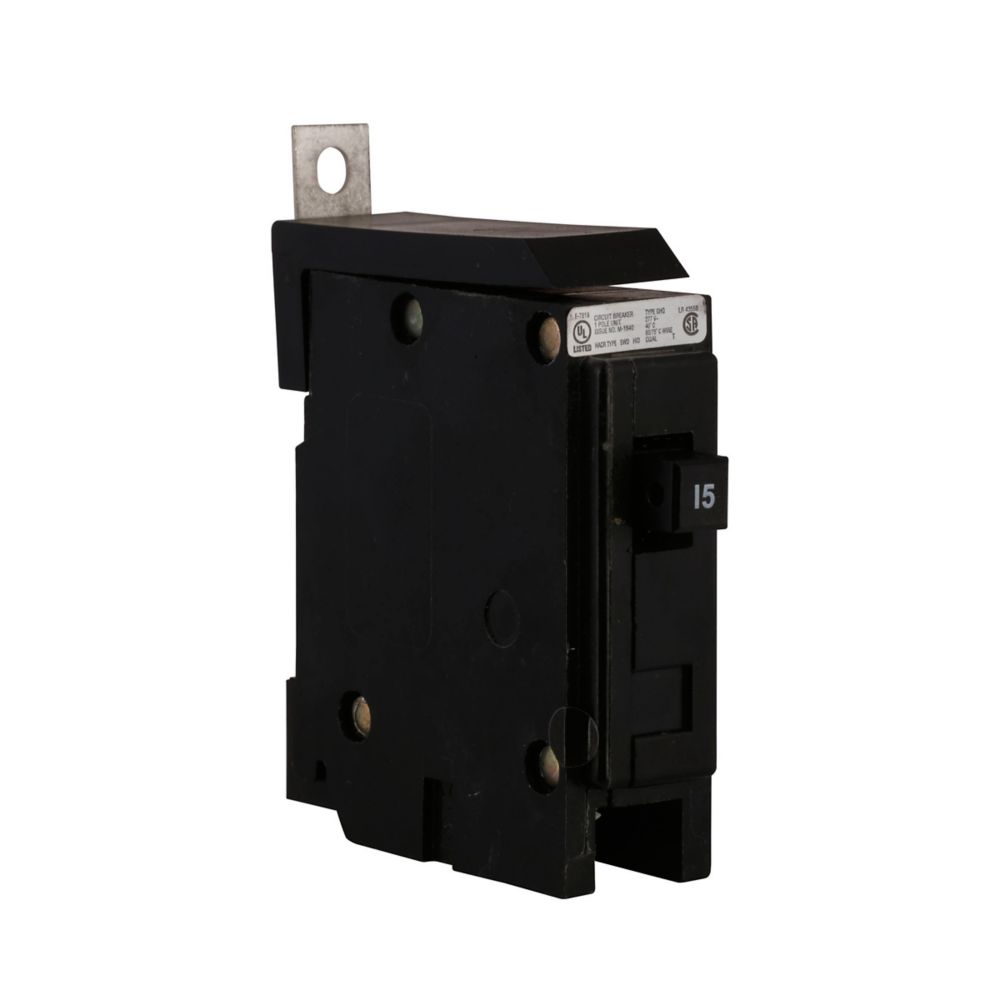

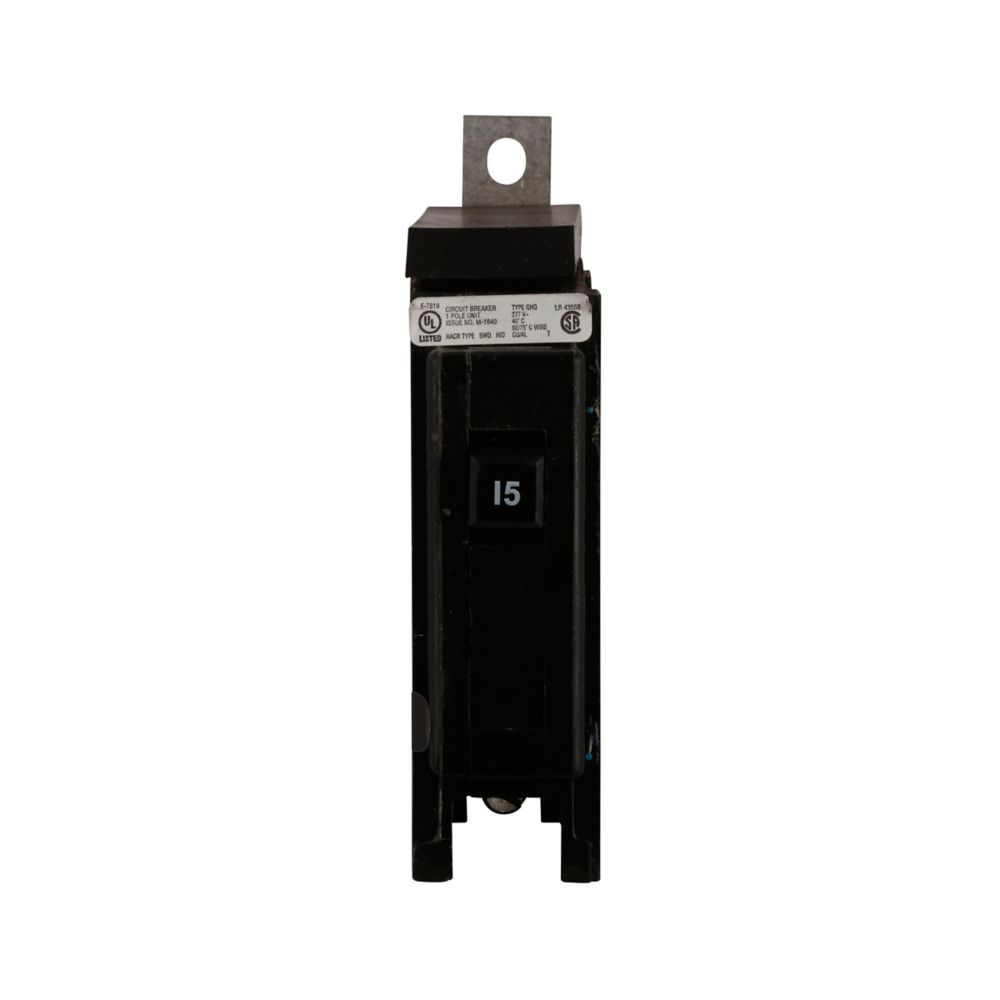

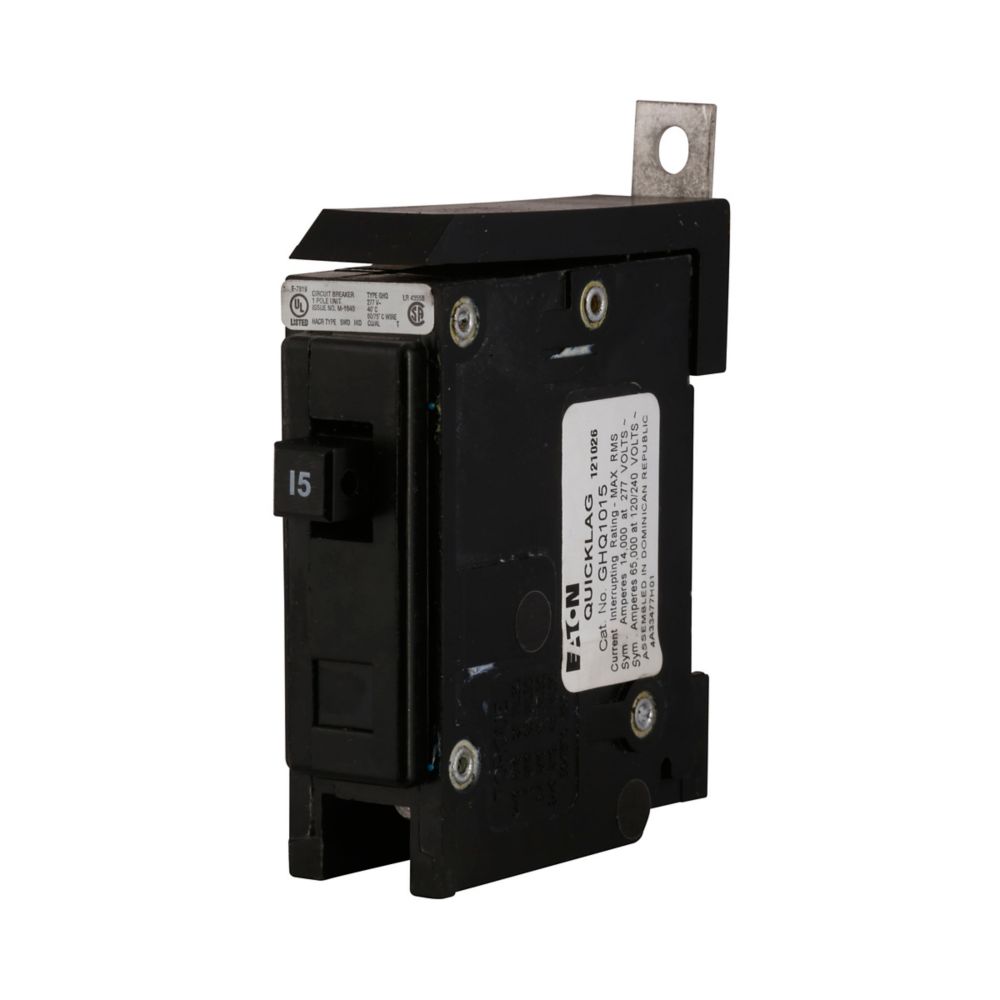

The Cutler Hammer GHQ1015 is a Molded Case Circuit Breaker from the Series C family. It features a 1-pole design with a 277V, 15A rating and a 14kA@277V AIC rating. This breaker uses a bolt-on connection and includes thermal magnetic protection.

Key Features:
✔ Part Number: GHQ1015
✔ Manufacturer: Westinghouse
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Series C
✔ Type: GHQ
✔ Voltage: 277V
✔ Amperage: 15A
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 14kA@277V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Screw Clamp
✔ Frame Size: 30A/G
✔ MCM Size: Min. Wire Size 14 AWG, Max. Wire Size 1/0 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: A
✔ Certification: CSA Certified, IEC Rated, UL Listed
✔ UPC: 782114985106
✔ GTIN: 007
