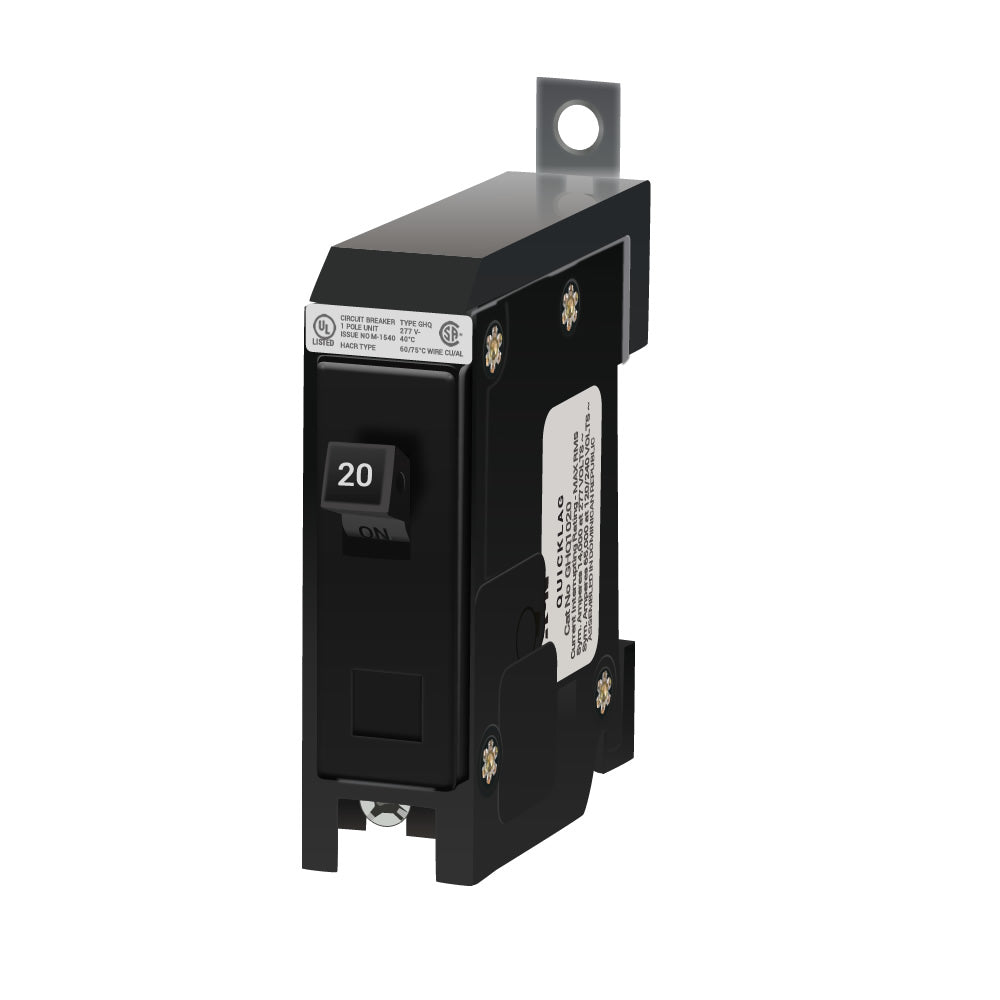

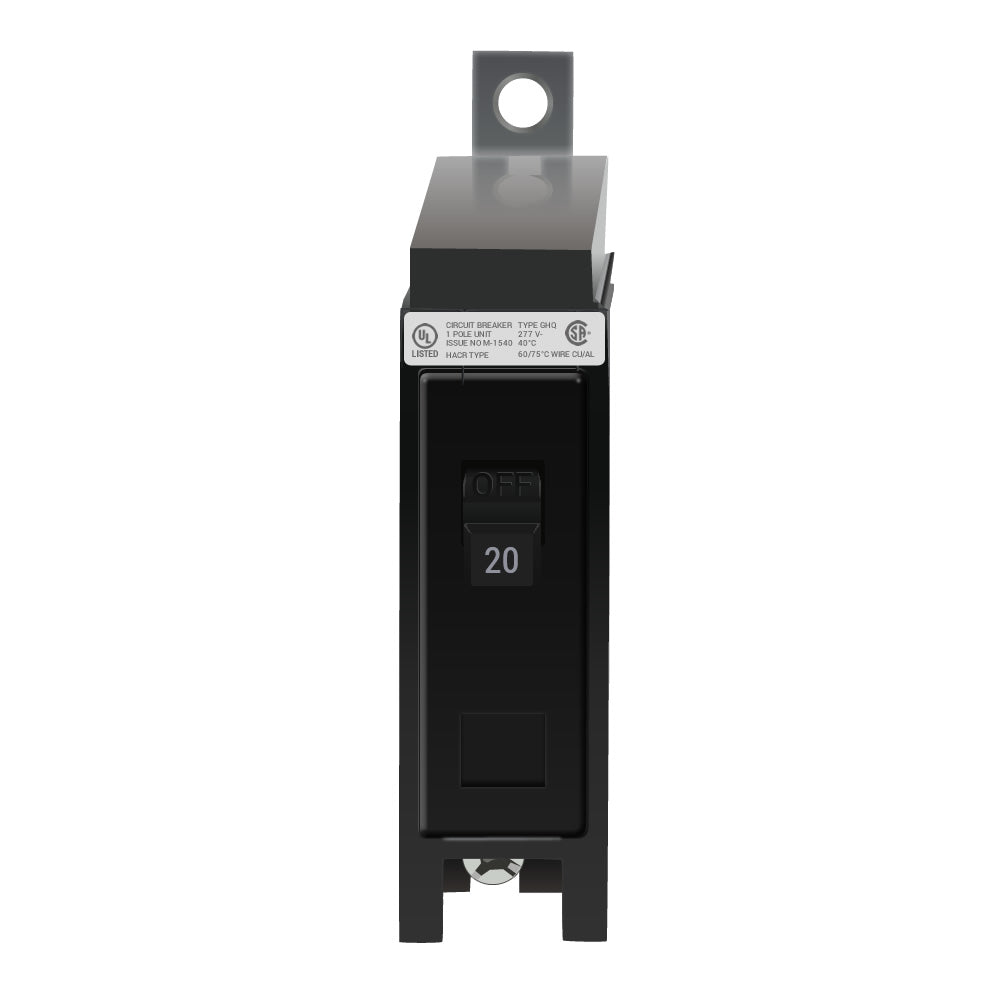

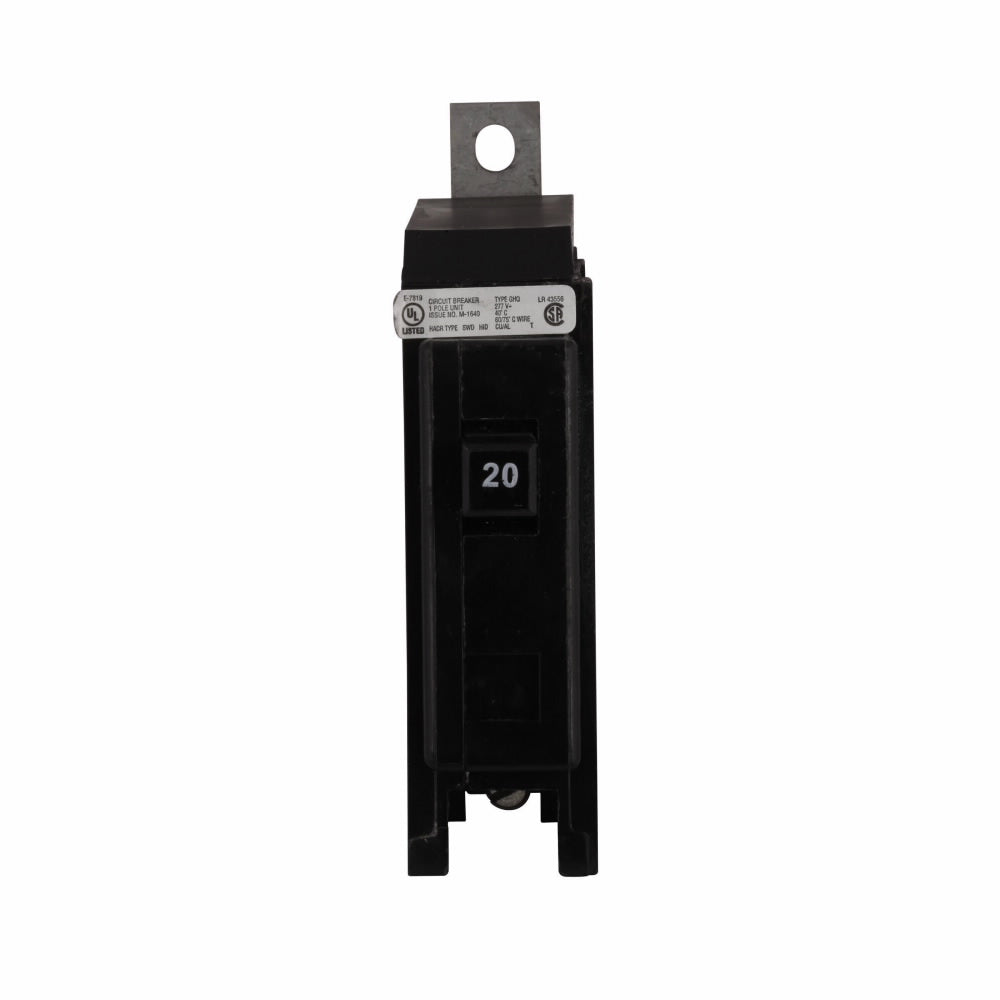

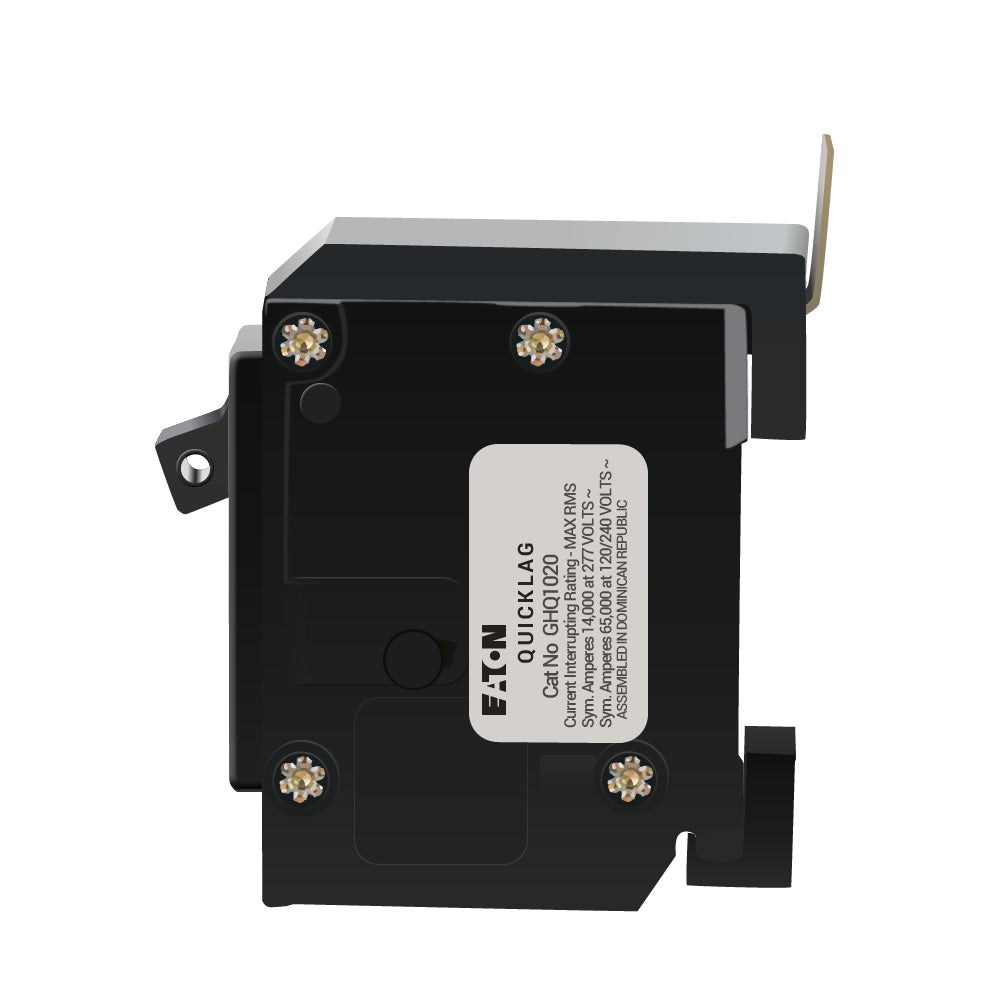

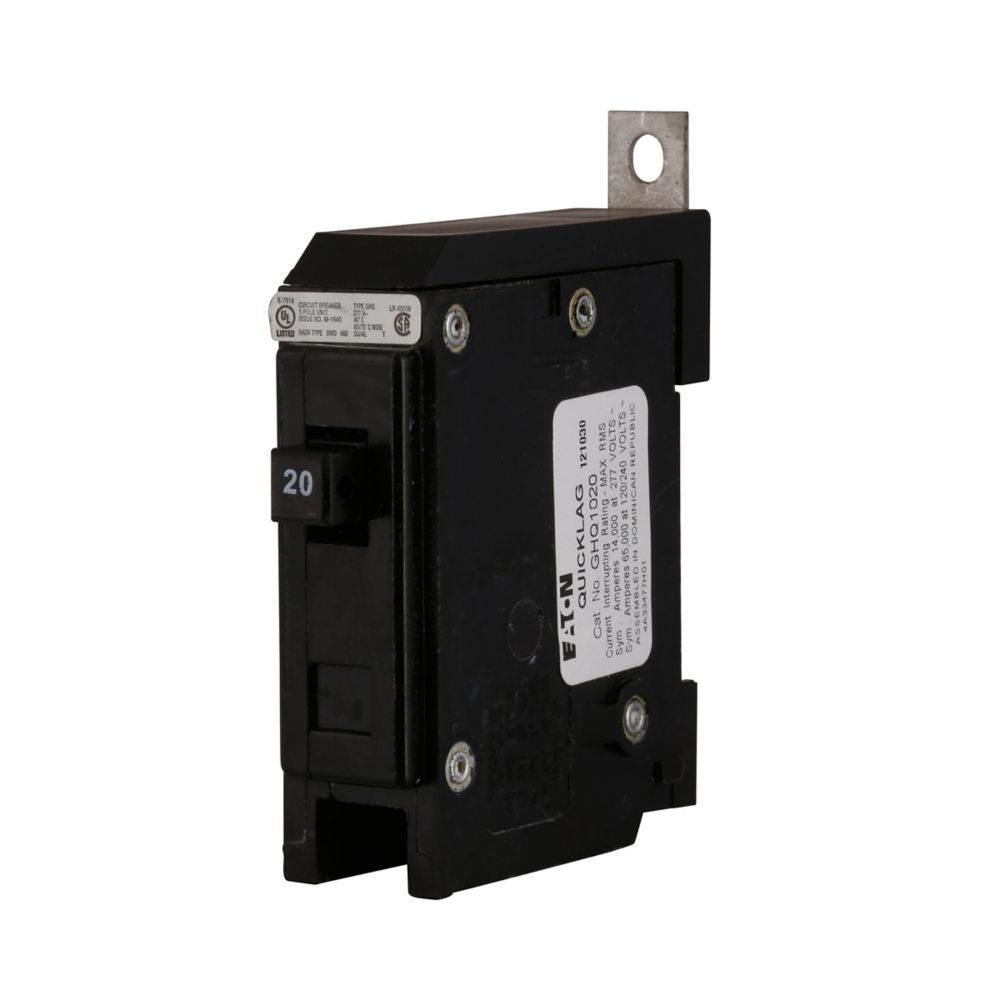

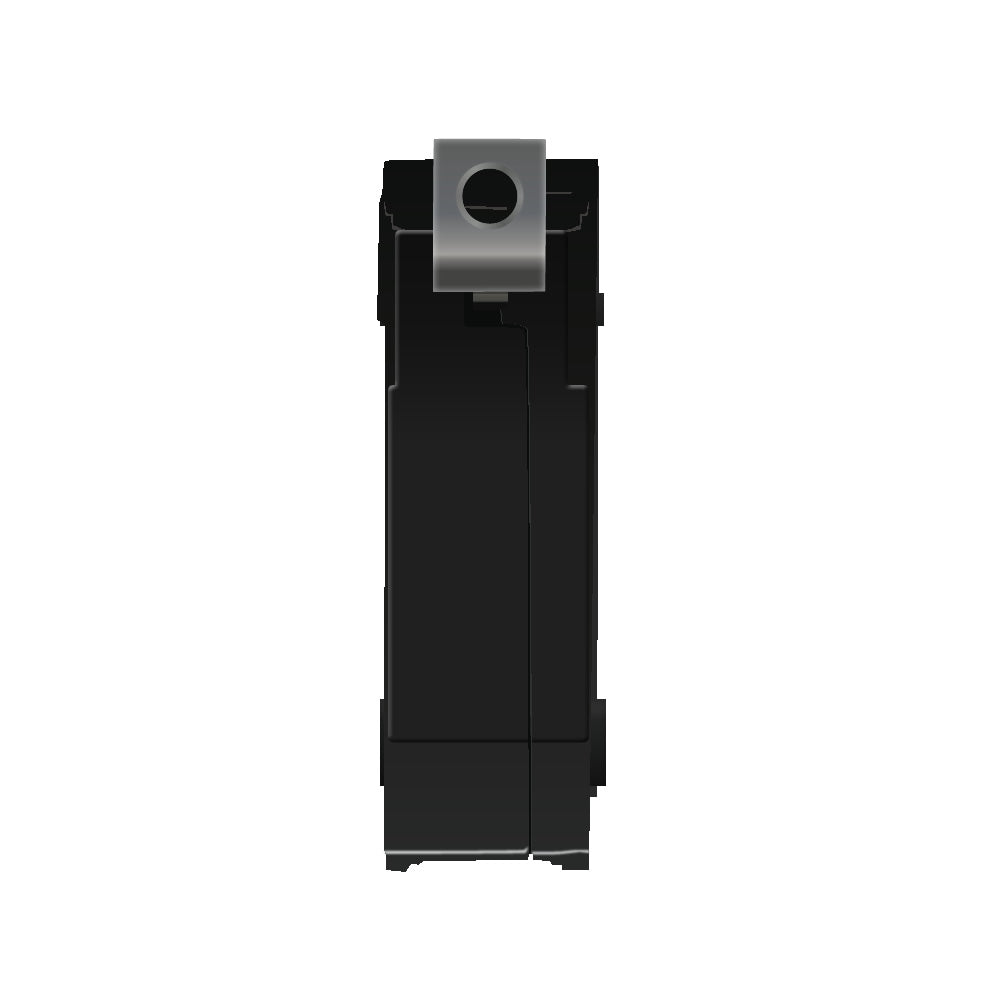

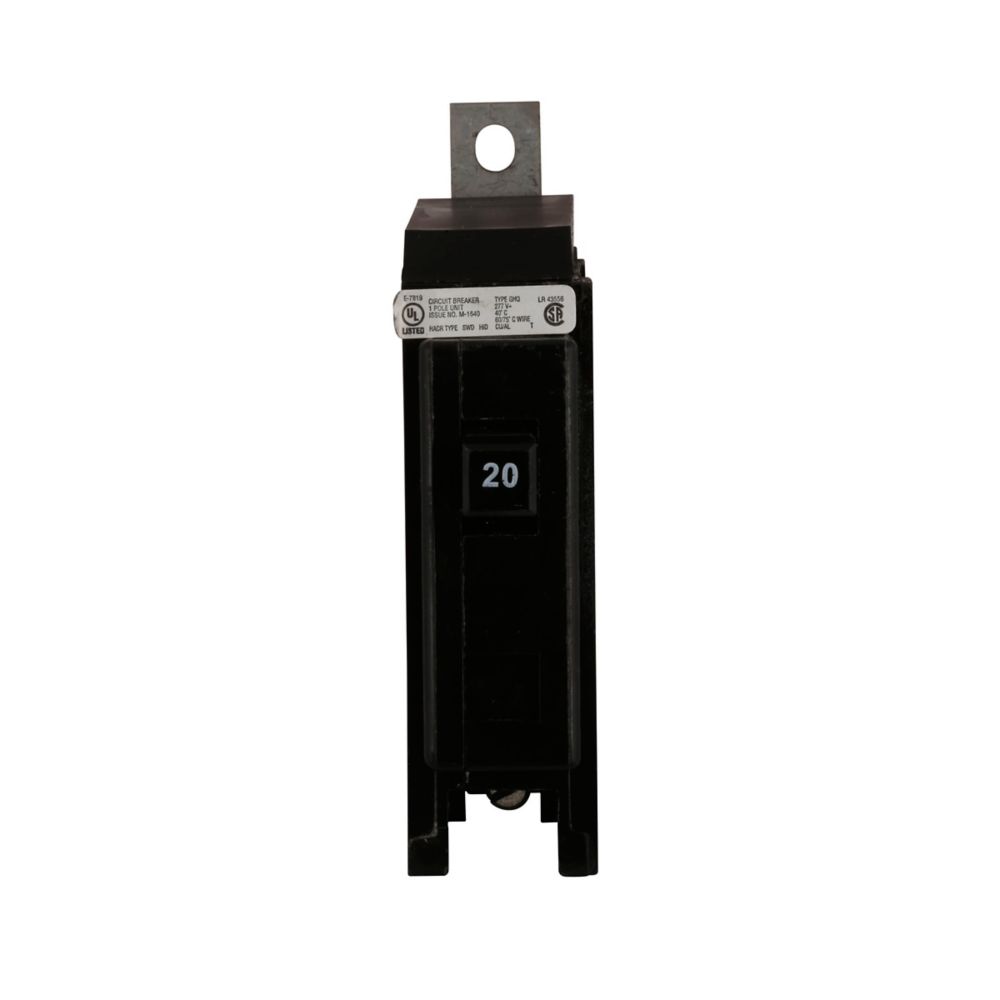

Cutler Hammer GHQ1020 Molded Case Circuit Breaker | 480V 20A 1P 14kA@277V Bolt-On Series C

Product Description:
The Cutler Hammer GHQ1020 is a Molded Case Circuit Breaker from the Series C family. It is a 1-pole, 20 amp breaker rated for 480 volts with a 14kA@277V AIC rating. This circuit breaker features a bolt-on connection and provides thermal magnetic protection for reliable operation.

Key Features:
✔ Part Number: GHQ1020
✔ Manufacturer: Cutler Hammer
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Series C
✔ Type: GHQ
✔ Voltage: 480
✔ Amperage: 20
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 14kA@277V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Screw Clamp
✔ Frame Size: 30A/G
✔ MCM Size: Min. Wire Size 14 AWG Max. Wire Size 1/0 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: A
✔ UPC: 782114985113
✔ GTIN: 00782114985113
✔ Country of Origin: Dominican Republic
✔ Dimensions: 1 in x 2.9 in
✔ Weight: 0.4
✔ Panel Type: Allen Bradley MCC, Eaton MCC Eaton, Rockwell Automation Enclosed Control, Switchboard, Westinghouse
✔ Standards: CSA Certified, IEC Rated, UL Listed
✔ Certification: CSA Certified, IEC Rated, UL Listed
