Product Description:

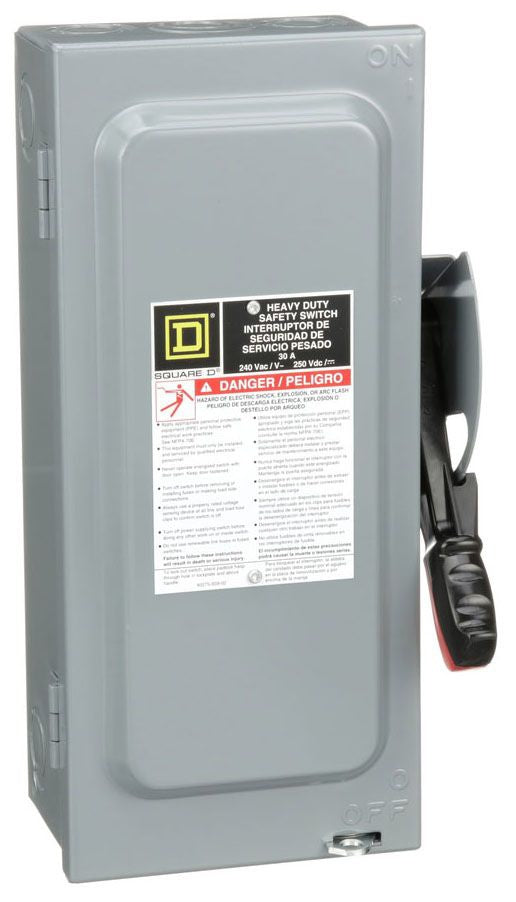

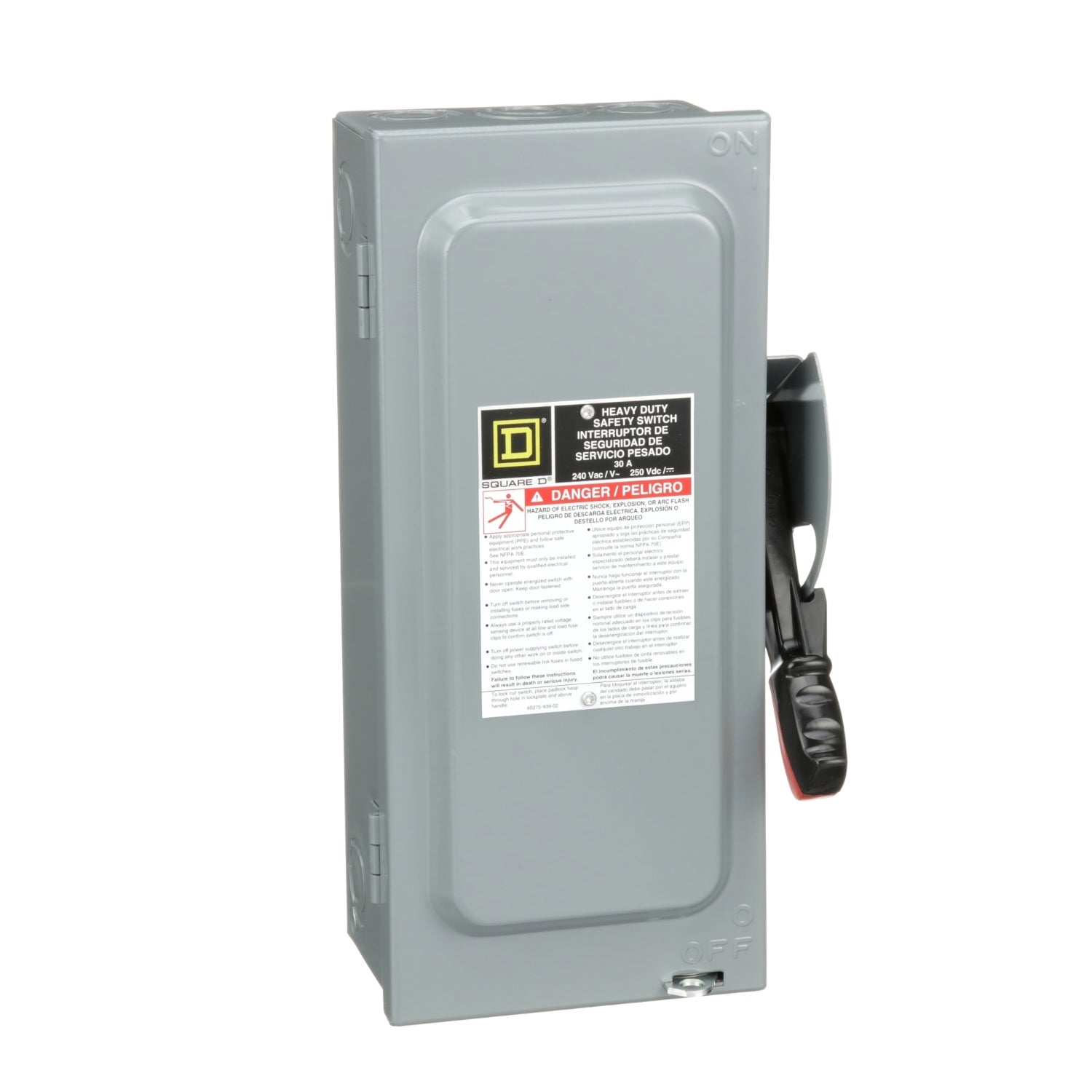

The Square D H221N is a 1-phase, 2-pole disconnect switch rated for 240V and 30A. It features a NEMA 1 enclosure and a high AIC rating of 200kA@240V. Designed for fusible applications, this switch is part of the Series F family and compatible with FAP frames.
Key Features:
✔ Part Number: H221N
✔ Manufacturer: Square D
✔ Category: Switch
✔ Subcategory: Disconnect
✔ Family: Series F
✔ Type: H
✔ Voltage: 240
✔ Amperage: 30
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 200kA@240V
✔ Fuse Class: R
✔ Configuration: Single
✔ Switch Style: Fusible
✔ Nema Rating: 1
✔ Compatible Frames: FAP
✔ UPC: 785901477686
✔ GTIN: 00785901477686
✔ Dimensions: Depth 4.88 in (123.95 mm) Width 6.5 in (165.10 mm) Height 14.6 in (370.84 mm)
✔ Weight: 3.54
