Product Description:

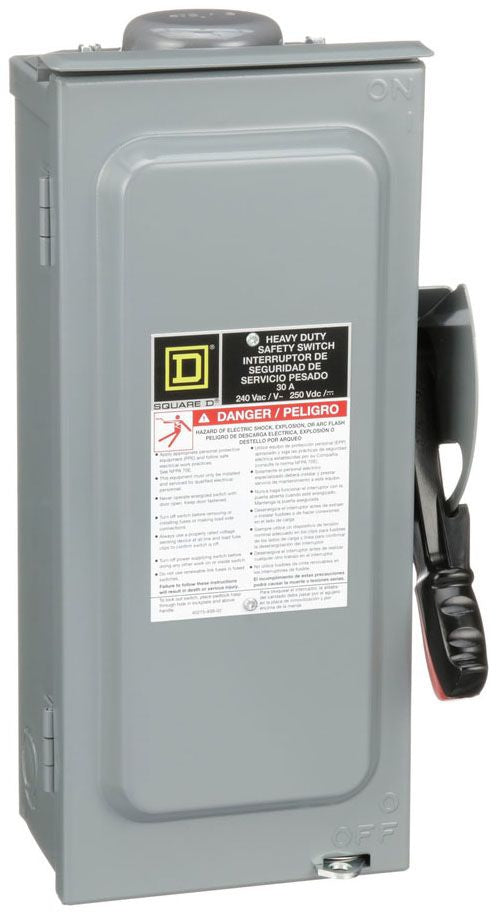

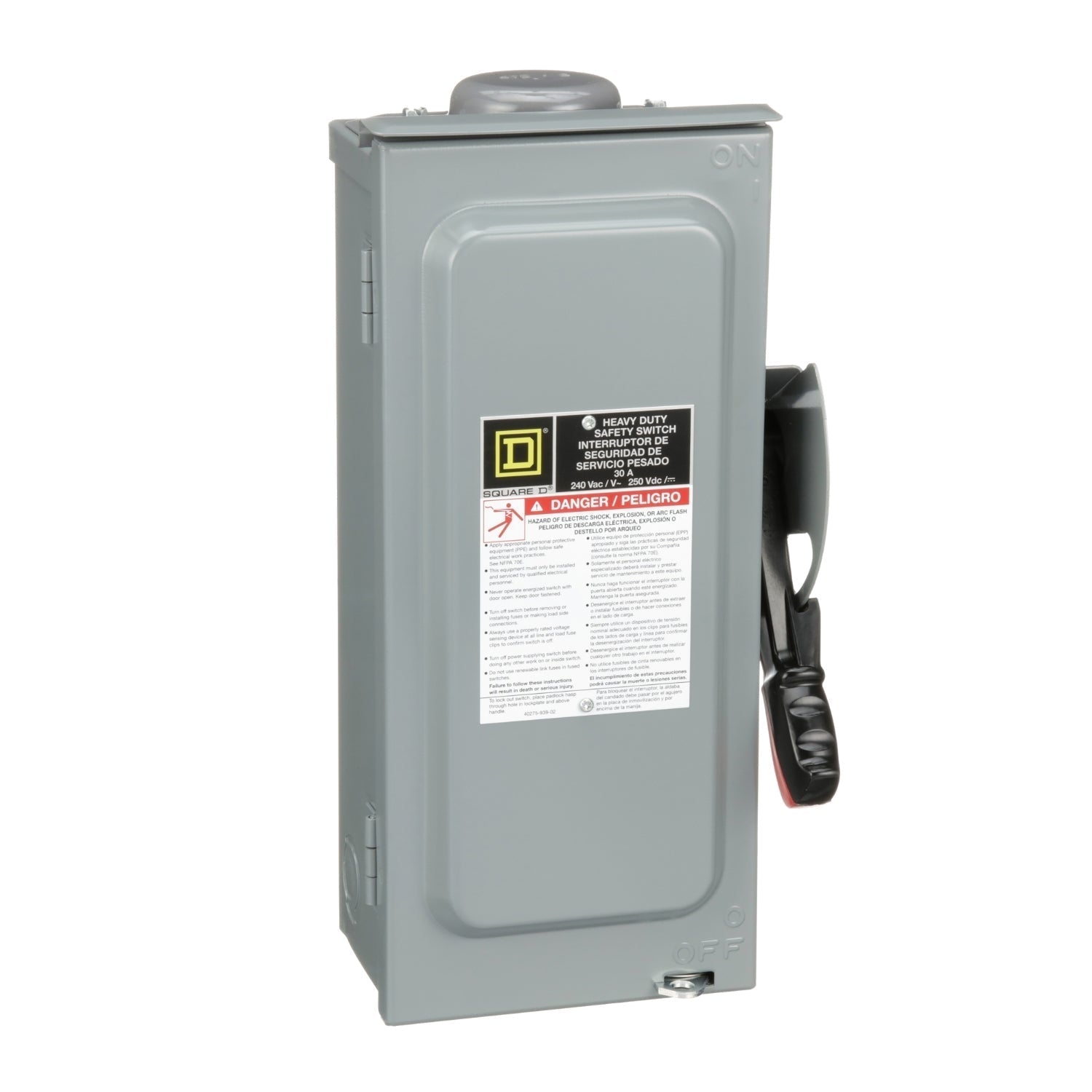

The Square D H221NRB is a 1-phase, 2-pole disconnect switch rated for 240V and 30A. It features a NEMA 3R enclosure rating and a high 200kA@240V AIC rating for reliable protection. This fusible switch is part of the Series F family and is designed for single-switch configurations.
Key Features:
✔ Part Number: H221NRB
✔ Manufacturer: Square D
✔ Category: Switch
✔ Subcategory: Disconnect
✔ Family: Series F
✔ Type: H
✔ Voltage: 240
✔ Amperage: 30
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 200kA@240V
✔ Fuse Class: R
✔ Configuration: Single
✔ Switch Style: Fusible
✔ Nema Rating: 3R
✔ Compatible Frames: FAP
✔ UPC: 785901478010
✔ GTIN: 00785901478010
✔ Dimensions: Depth 4.88 in (123.95 mm) Width 6.63 in (168.40 mm) Height 14.88 in (377.95 mm)
✔ Weight: 3.81
✔ Certification: UL Listed
