Product Description:

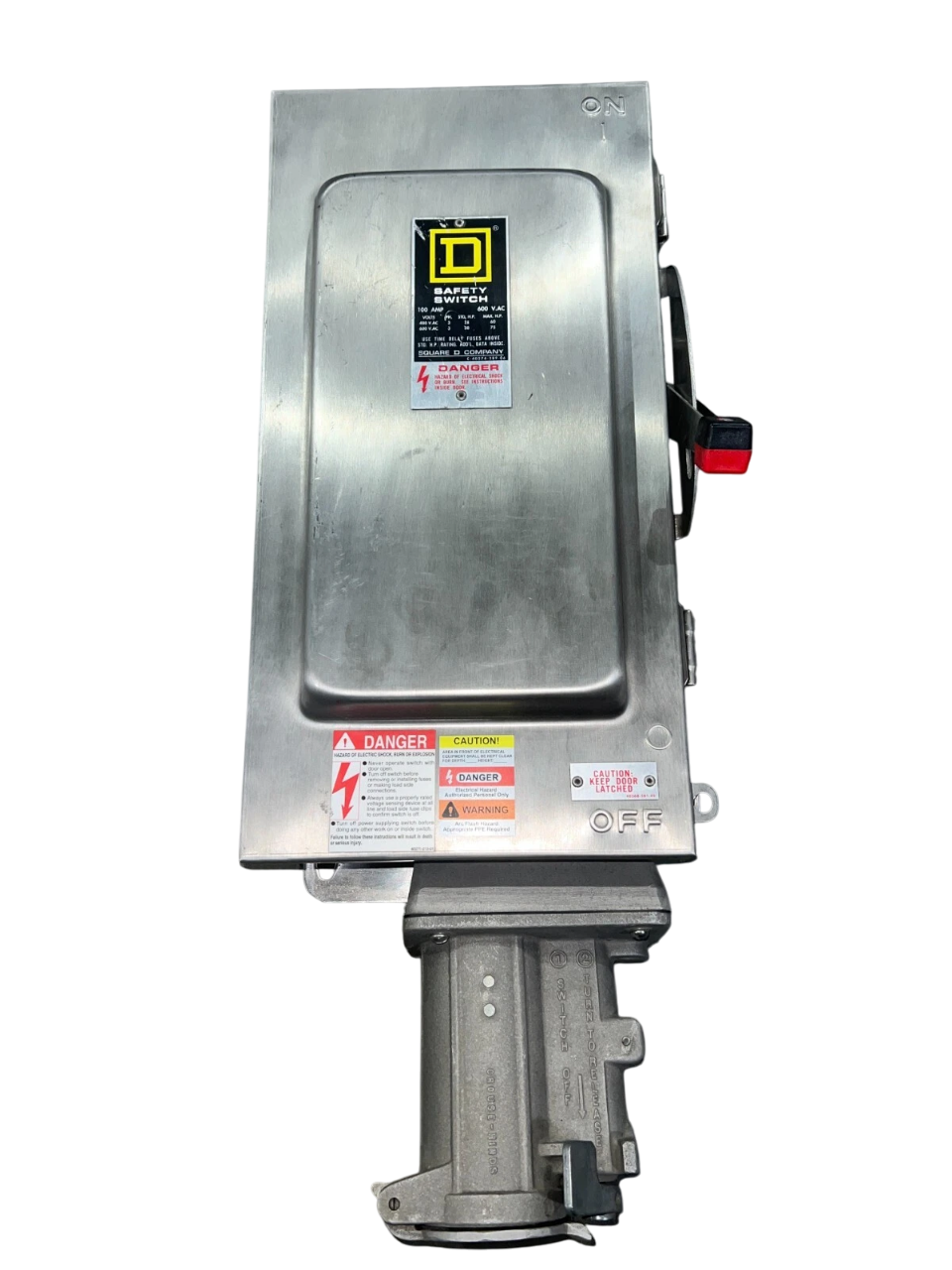

The Square D H363DSWC is a 3-phase, 3-pole disconnect switch rated for 600V and 100A. It features a NEMA 3/3R/4/4X/5/12 rating and a high AIC rating of 200kA@600V. This fusible switch is designed for industrial and commercial applications requiring reliable power disconnection.
Key Features:
✔ Part Number: H363DSWC
✔ Manufacturer: Square D
✔ Category: Switch
✔ Subcategory: Disconnect
✔ Family: Series F
✔ Type: H
✔ Voltage: 600
✔ Amperage: 100
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 200kA@600V
✔ Fuse Class: J,R
✔ Configuration: Single
✔ Switch Style: Fusible
✔ NEMA Rating: 3/3R/4/4X/5/12
✔ Compatible Frames: FD
✔ UPC: 785901220626
✔ GTIN: 00785901220626
✔ Dimensions: Depth 6.97 in (177.04 mm) Width 11.25 in (285.75 mm) Height 28.00 in (711.20 mm)
✔ Weight: 30
✔ Certification: UL LISTED
