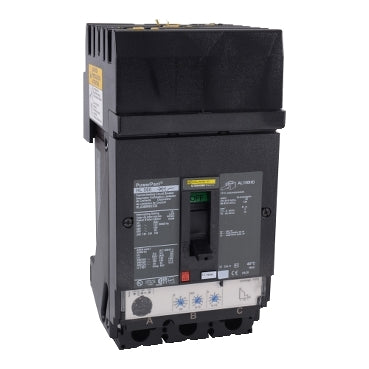

Square D HDA36060U44X Circuit Breaker | 600V 60A 3P 18kA@480V I-Line Style Plug-In Powerpact
Square D HDA36060U44X Circuit Breaker | 600V 60A 3P 18kA@480V I-Line Style Plug-In Powerpact
Price:
Sale
Sold out
Regular price
$2,596.90 USD
Regular price
$2,902.00 USD
Sale price
$2,596.90 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Out of stock
Couldn't load pickup availability
Product Description:
The Square D HDA36060U44X is a Molded Case Circuit Breaker from the Powerpact family. It features 3 poles, 600V voltage, and a 60 amp rating with an 18kA@480V AIC rating. This breaker uses I-Line Style Plug-In connections and offers solid-state protection with LSIG functions.
Key Features:
✔ Part Number: HDA36060U44X
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HDA
✔ Voltage: 600
✔ Amperage: 60
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 18kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
✔ Terminal Connection: I-Line, Lug
✔ Frame Size: H
✔ Wire Size: Min. 14 AWG (Cu/Al) Max. 3/0 AWG (Cu/Al)
✔ Protection: Solid State
✔ Phase Connection: ABC
✔ UPC: 078590194392
✔ GTIN: 00785901943921
✔ Country of Origin: United States
✔ Dimensions: 4.12 in x 6.4 in
✔ Weight: 3.63
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
The Square D HDA36060U44X is a Molded Case Circuit Breaker from the Powerpact family. It features 3 poles, 600V voltage, and a 60 amp rating with an 18kA@480V AIC rating. This breaker uses I-Line Style Plug-In connections and offers solid-state protection with LSIG functions.
