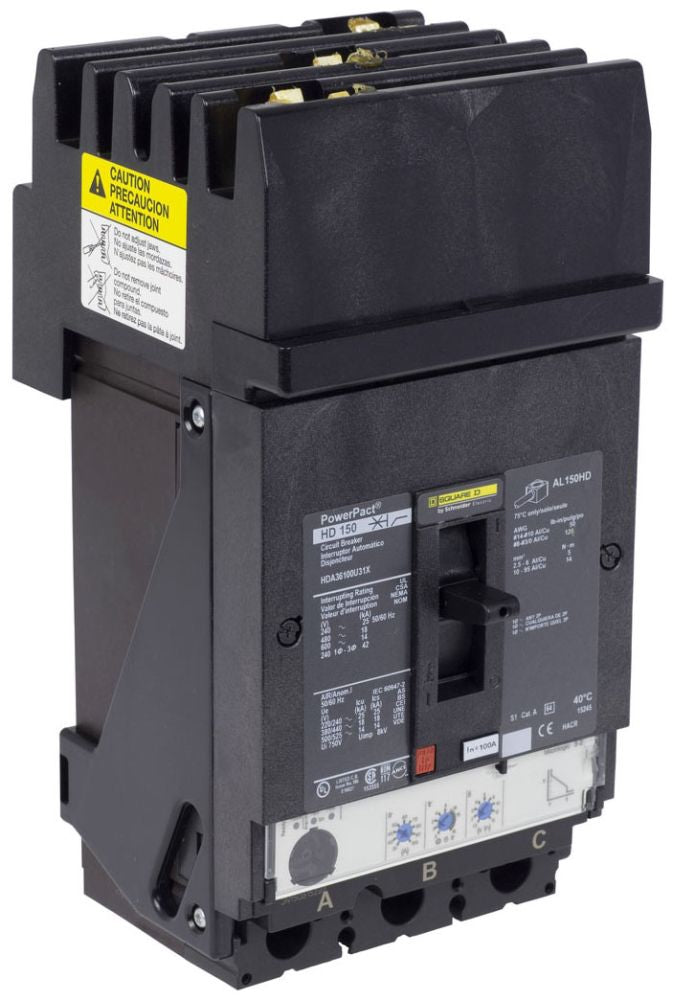

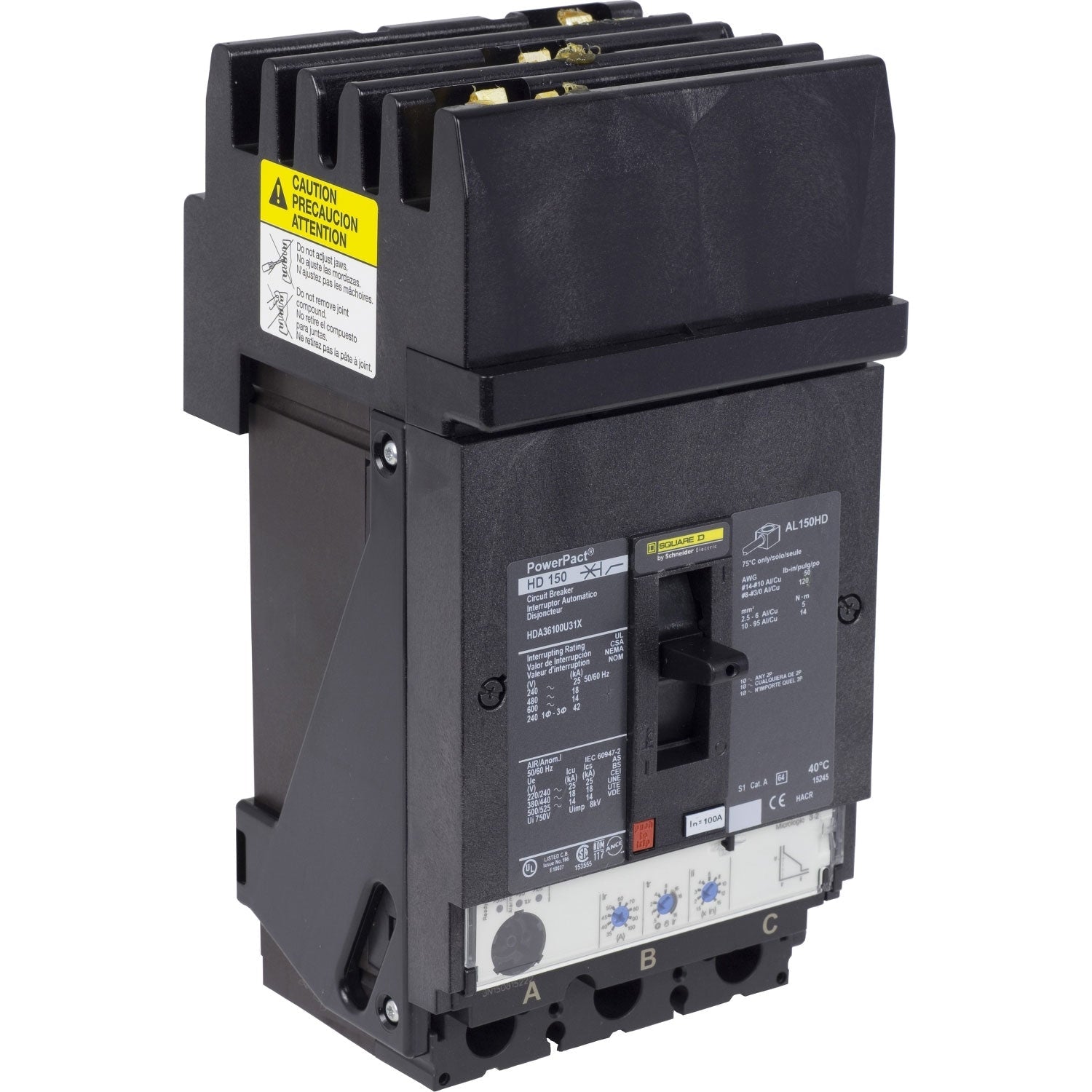

Square D HDA36100U31X Circuit Breaker | 600V 100A 3P 18kA@480V I-Line Style Plug-In Powerpact

Product Description:
The Square D HDA36100U31X is a Molded Case Circuit Breaker from the Powerpact family. It features 3 poles, 600V voltage, and a 100 amp rating with an 18kA@480V AIC rating. This breaker uses an I-Line Style Plug-In connection and includes solid-state protection for reliable performance.

Key Features:
✔ Part Number: HDA36100U31X
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HDA
✔ Voltage: 600
✔ Amperage: 100
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 18kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: I-Line, Lug
✔ Frame Size: H
✔ Wire Size: AWG 14...AWG 3/0 aluminum/copper terminal
✔ Protection: Solid State
✔ Phase Connection: ABC
✔ UPC: 785901154426
✔ GTIN: 00785901154426
✔ Country of Origin: Mexico

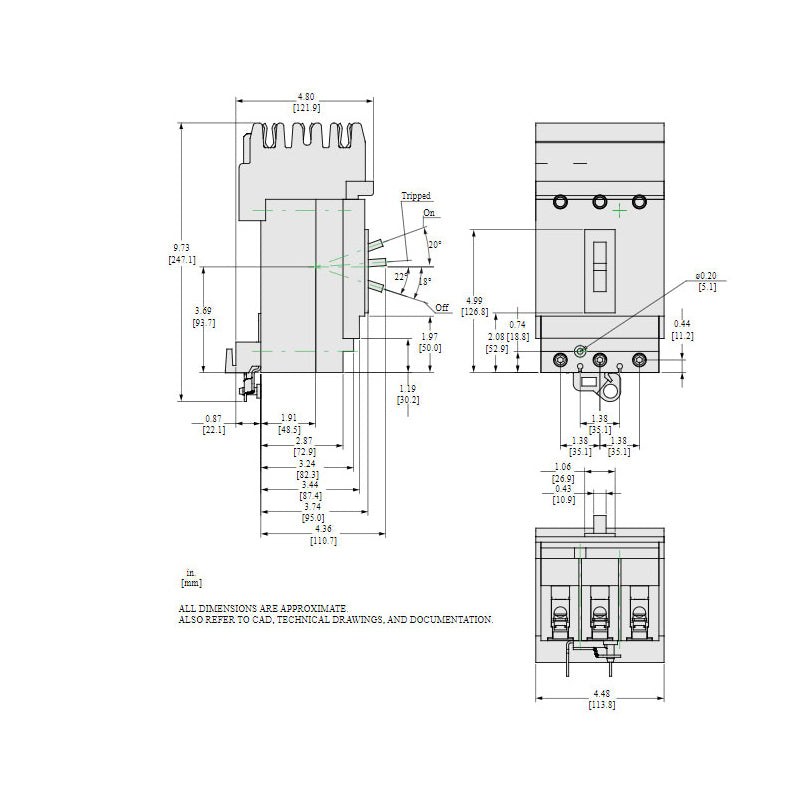

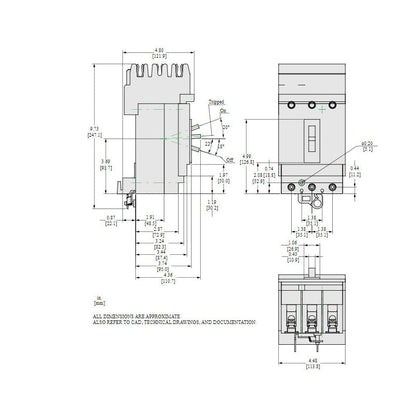

✔ Dimensions: 4.12 in x 6.4 in
✔ Weight: 2.91
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
