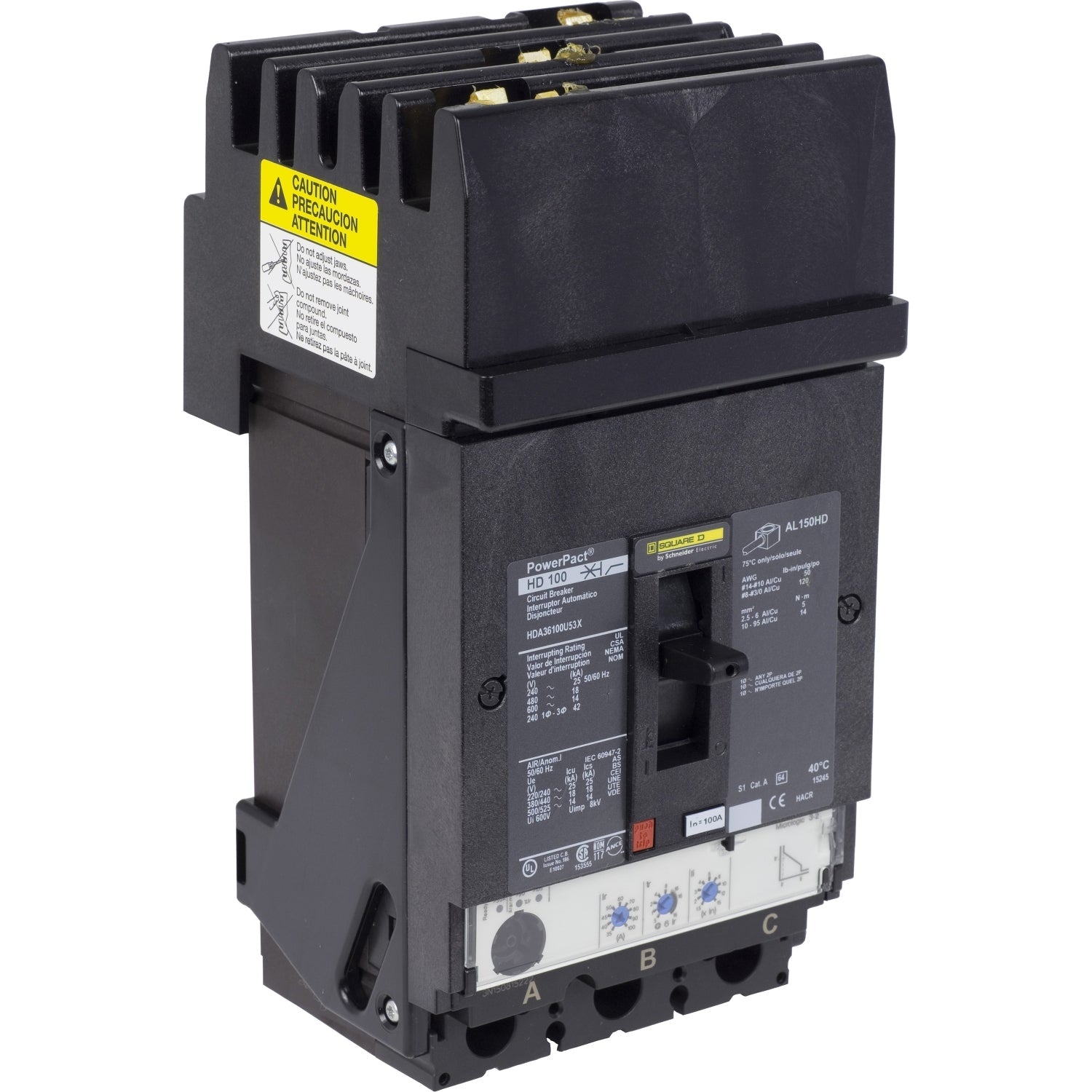

Schneider Electric HDA36100U53X Circuit Breaker | 600V 100A 3P 18kA@480V I-Line Style Plug-In Powerpact

Product Description:
The Schneider Electric HDA36100U53X is a Molded Case Circuit Breaker from the Powerpact family. It features 3 poles, 600V voltage, and 100A amperage with an 18kA@480V AIC rating. This breaker uses an I-Line Style Plug-In connection and includes solid-state protection for reliable performance.

Key Features:
✔ Part Number: HDA36100U53X
✔ Manufacturer: Schneider Electric
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HDA
✔ Voltage: 600
✔ Amperage: 100
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 18kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LSI - Long-Time, Short-Time and Instantaneous
✔ Frame Size: H Frame
✔ Protection: Solid State
✔ UPC: 60648628237
✔ GTIN: 03606486282373

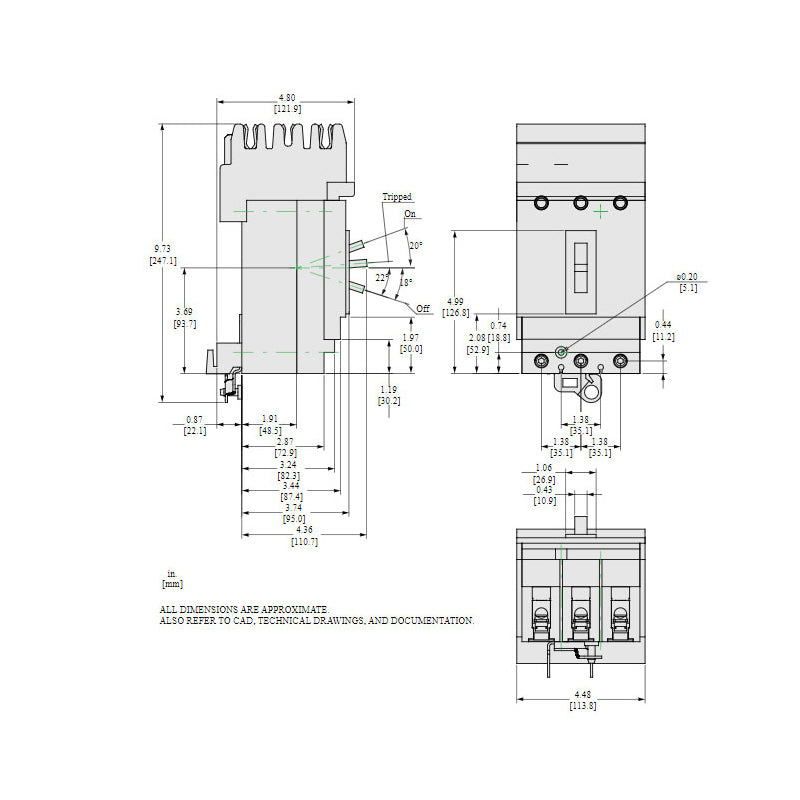

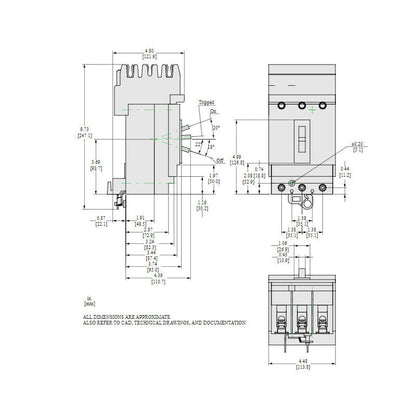

✔ Dimensions: Height 6.42 in (163 mm) x Depth 5.38 in (136.65 mm) x Width 5.64 in (143.26 mm)
✔ Weight: 3.63
✔ Wire Size: AWG 14...AWG 3/0 aluminum/copper terminal
