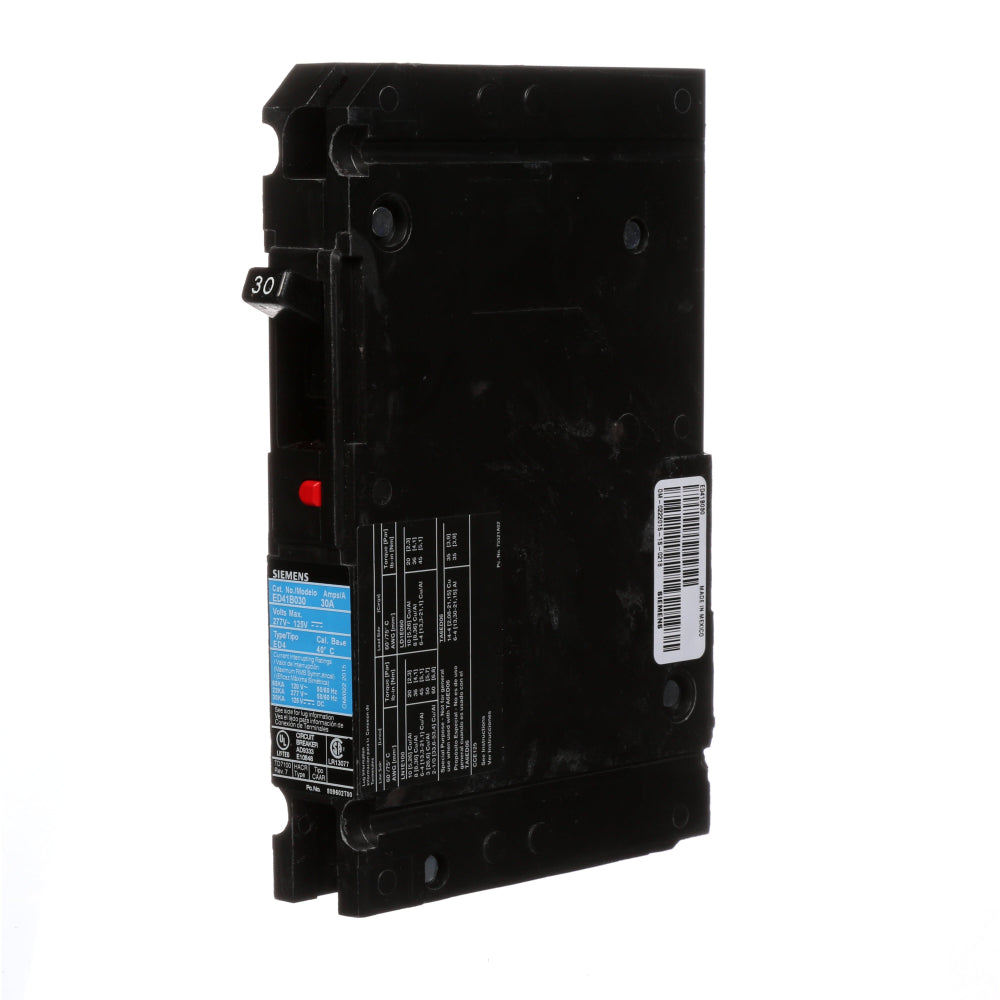

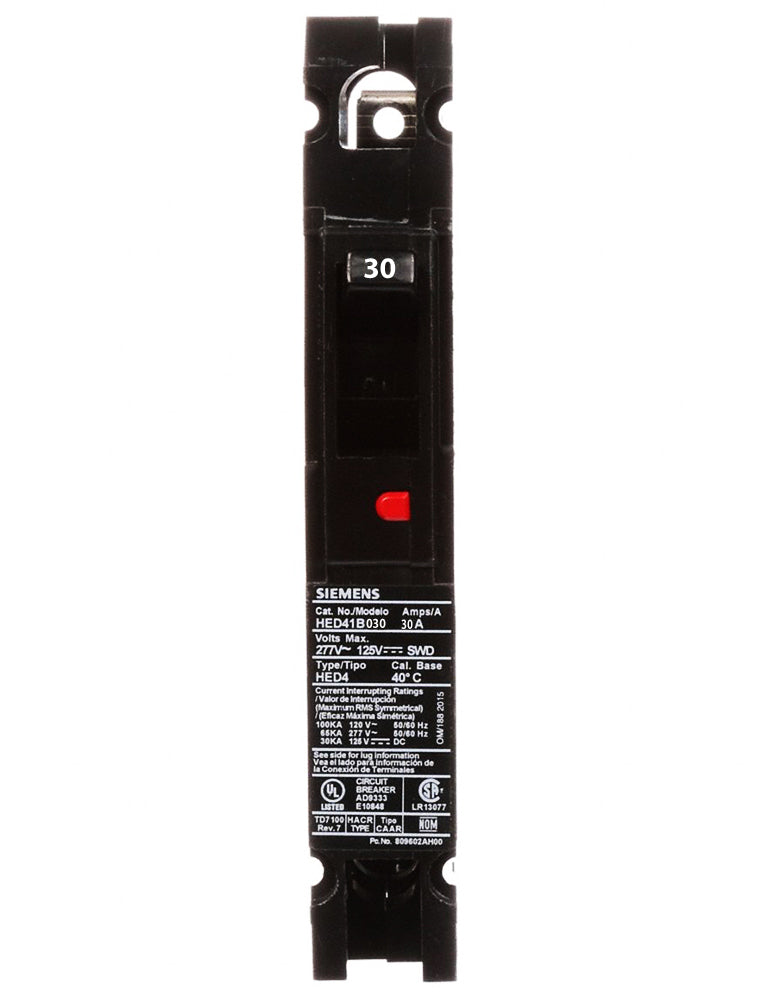

Siemens HED41B030 Circuit Breaker | 277V 30A 1P 65kA@277V Sentron Series

Product Description:
The Siemens HED41B030 is a Molded Case Circuit Breaker from the Sentron Series family. It is a 1-pole, 30 amp breaker rated for 277 volts with an interrupting capacity of 65kA. This thermal magnetic circuit breaker uses a lug-in panelboard connection for reliable electrical protection.

Key Features:
✔ Part Number: HED41B030
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Sentron Series
✔ Type: HED
✔ Voltage: 277
✔ Amperage: 30
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 65kA@277V
✔ Connection: Lug In Panelboard
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Load Side Lug
✔ Frame Size: 125A/ED
✔ MCM Size: Min. Wire Size 10 AWG Max. Wire Size 4 AWG
✔ Breaker Type: High Interrupting Capacity
✔ Protection: Thermal Magnetic
✔ Phase Connection: Any
✔ UPC: 783643209848
✔ GTIN: 00783643209848
✔ Country of Origin: United States
✔ Dimensions: 1 in x 6.35 in
✔ Weight: 3
✔ Panel Type: SB Switchboards, Sentron Panelboards
✔ Standards: IEC 60947-2, UL 489
✔ Certification: IEC 60947-2, UL 489
