Images are for reference only
Siemens
Siemens HED42B040 Circuit Breaker | 480V 40A 2P 42kA@480V Lug In Panelboard Sentron Series
Siemens HED42B040 Circuit Breaker | 480V 40A 2P 42kA@480V Lug In Panelboard Sentron Series
Price:
Sale
Sold out
Regular price
$273.62 USD
Regular price
$2,113.00 USD
Sale price
$273.62 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Low stock: 3 left
Couldn't load pickup availability
Product Description:

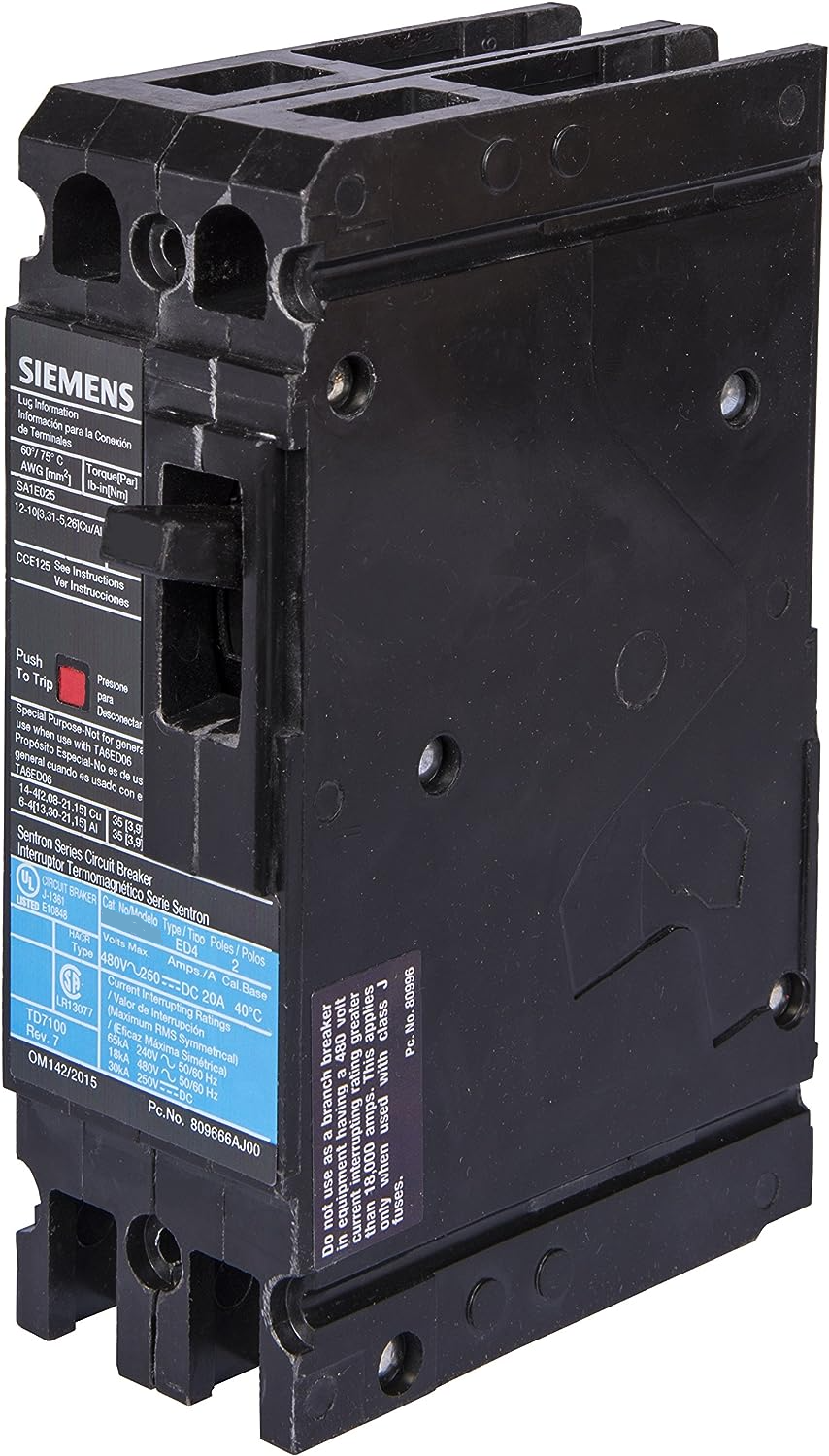

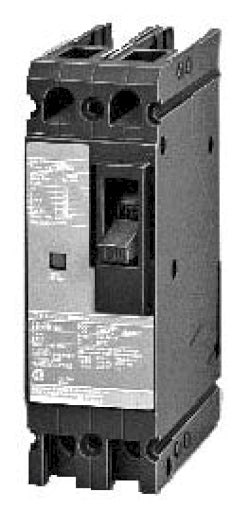

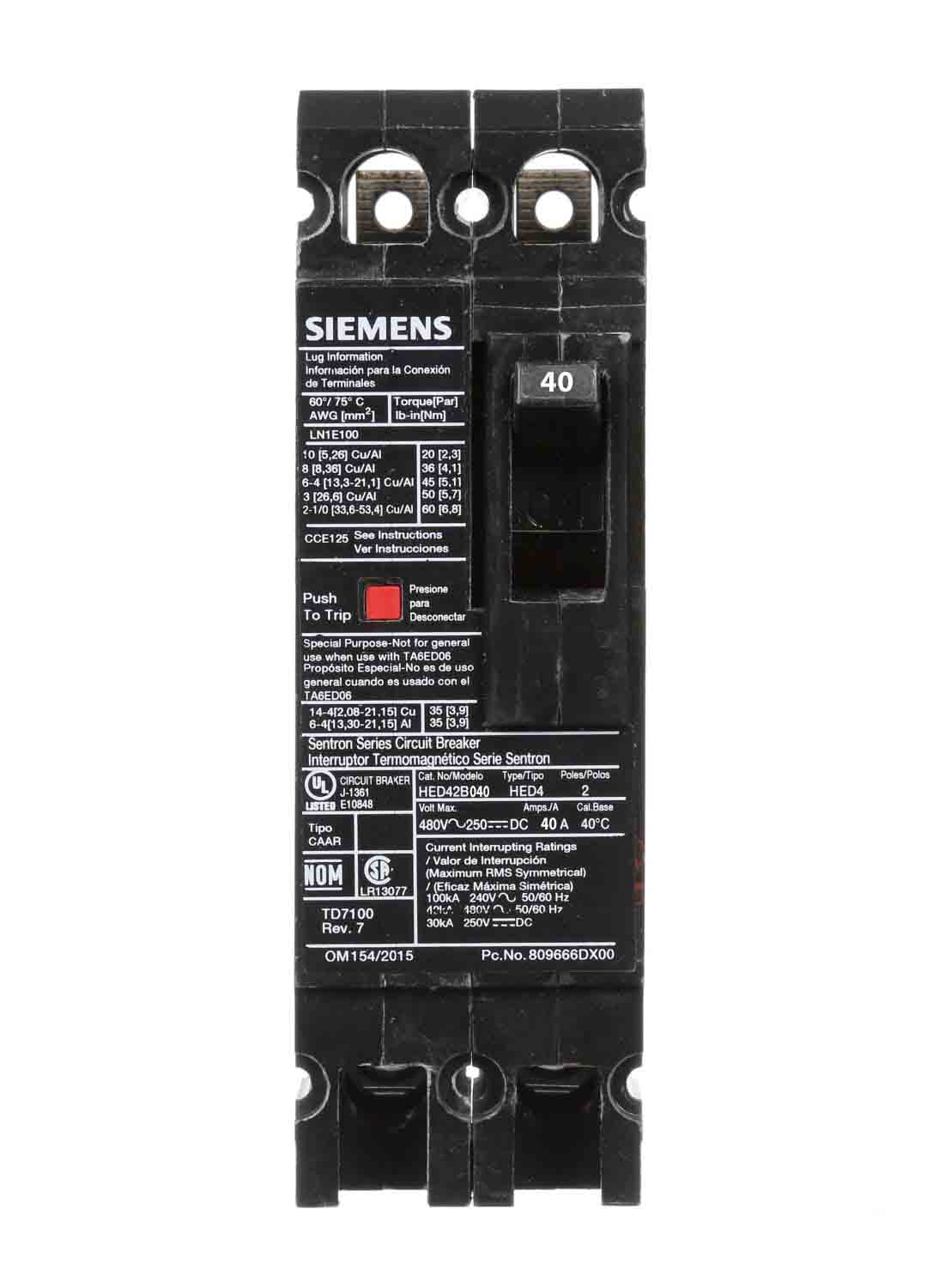

The Siemens HED42B040 is a Molded Case Circuit Breaker from the Sentron Series family. It features a 2-pole design with a 480V voltage rating and 40 amp capacity, offering a 42kA@480V AIC rating. This breaker uses a Lug In Panelboard connection and provides Thermal Magnetic protection for reliable performance.
Key Features:
✔ Part Number: HED42B040
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Sentron Series
✔ Type: HED
✔ Voltage: 480
✔ Amperage: 40
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 42kA@480V
✔ Connection: Lug In Panelboard
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Load Side Lug
✔ Frame Size: 125A/ED
✔ MCM Size: Min. Wire Size 10 AWG Max. Wire Size 1/0 AWG
✔ Breaker Type: High Interrupting Capacity
✔ Protection: Thermal Magnetic
✔ Phase Connection: Any
✔ UPC: 783643209992
✔ GTIN: 00783643209992
✔ Country of Origin: Mexico
✔ Dimensions: 2 in x 6.34 in
✔ Weight: 5
✔ Panel Type: SB Switchboards, Sentron Panelboards
✔ Standards: HACR Rated, UL Listed
✔ Certification: HACR Rated, UL Listed
