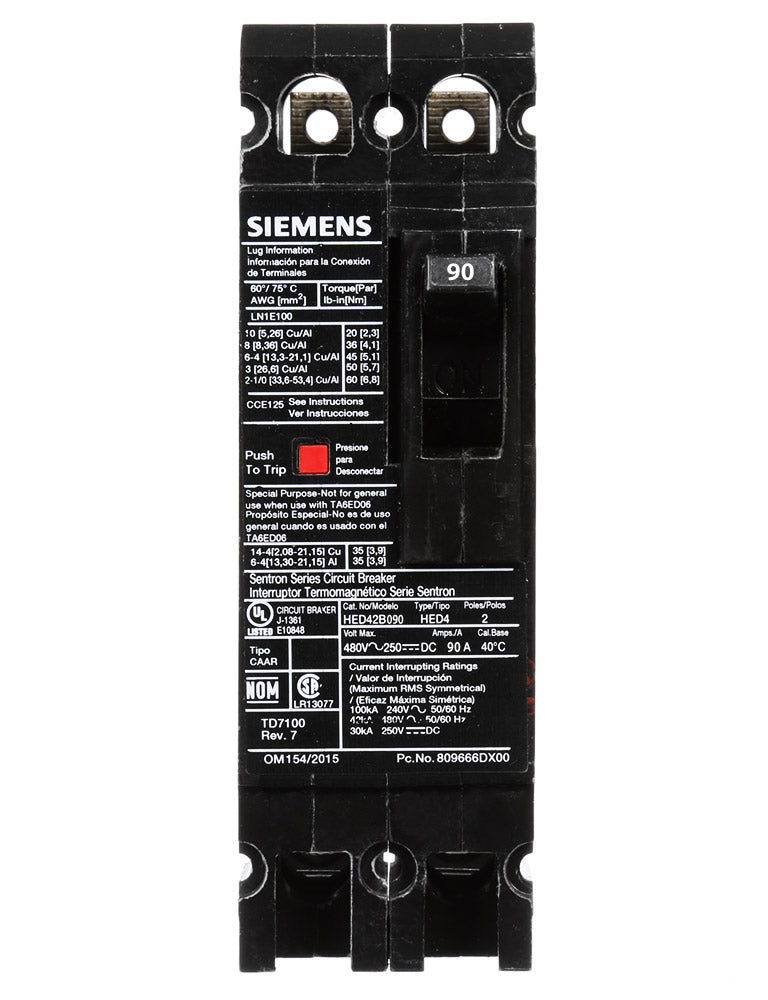

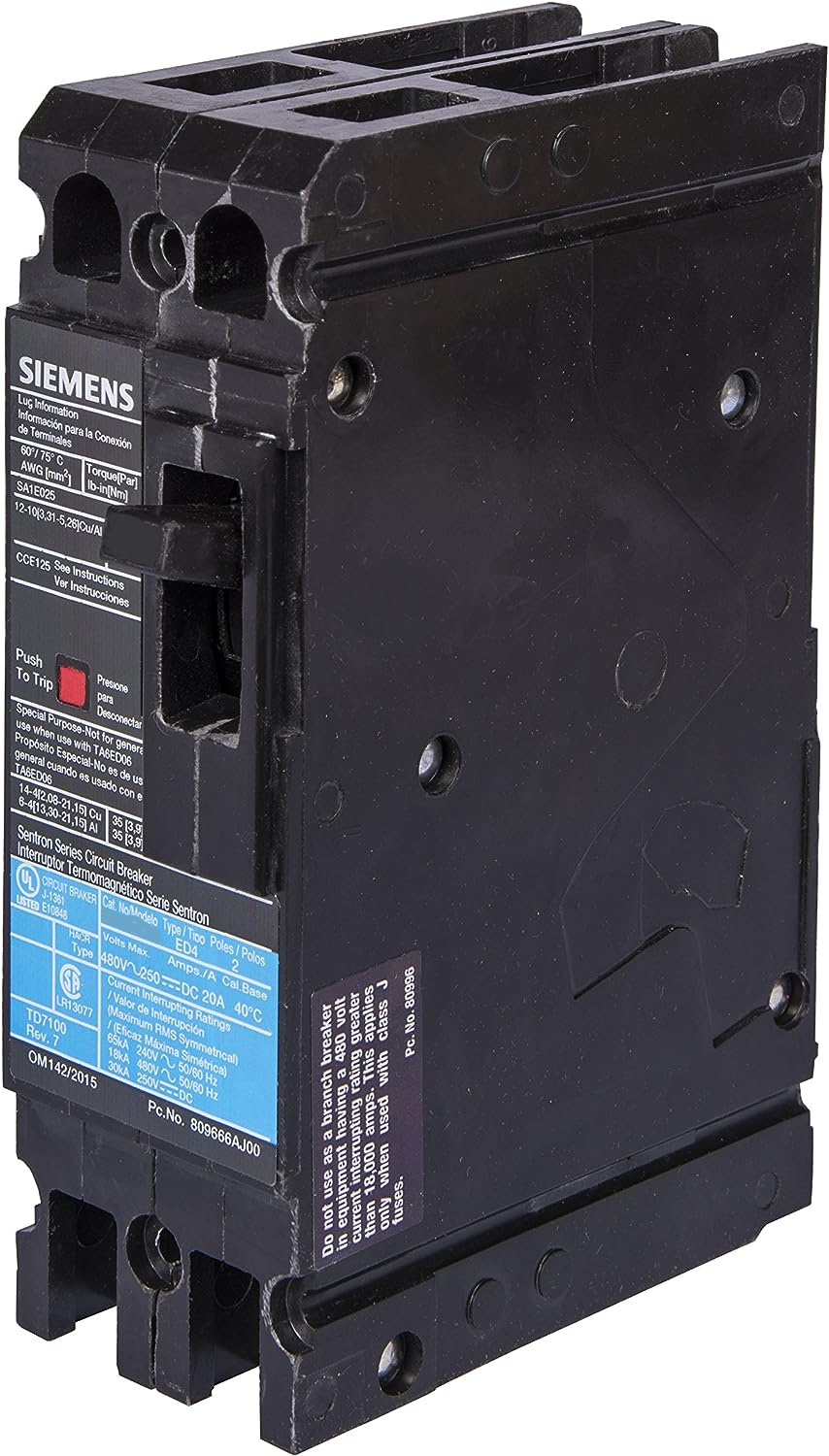

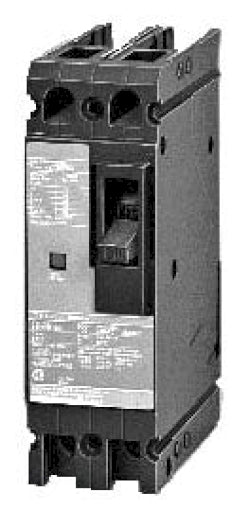

Siemens HED42B090 Circuit Breaker | 480V 90A 2P 42kA@480V Lug In Panelboard Sentron Series

Product Description:
The Siemens HED42B090 is a Molded Case Circuit Breaker from the Sentron Series family. It features a 2-pole design with a 480V voltage rating and 90A amperage capacity. This high interrupting capacity breaker offers thermal magnetic protection and is suitable for SB Switchboards and Sentron Panelboards. It meets IEC 60947-2 and UL 489 standards.

Key Features:
✔ Part Number: HED42B090
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Sentron Series
✔ Type: HED
✔ Voltage: 480
✔ Amperage: 90
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 42kA@480V
✔ Connection: Lug In Panelboard
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Load Side Lug
✔ Frame Size: 125A/ED
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 10 AWG
✔ Breaker Type: High Interrupting Capacity
✔ Protection: Thermal Magnetic
✔ Phase Connection: Any
✔ UPC: 783643210059
✔ GTIN: 00783643210059
✔ Country of Origin: Mexico
✔ Weight: 5
✔ Panel Type: SB Switchboards, Sentron Panelboards
✔ Standards: IEC 60947-2, UL 489
