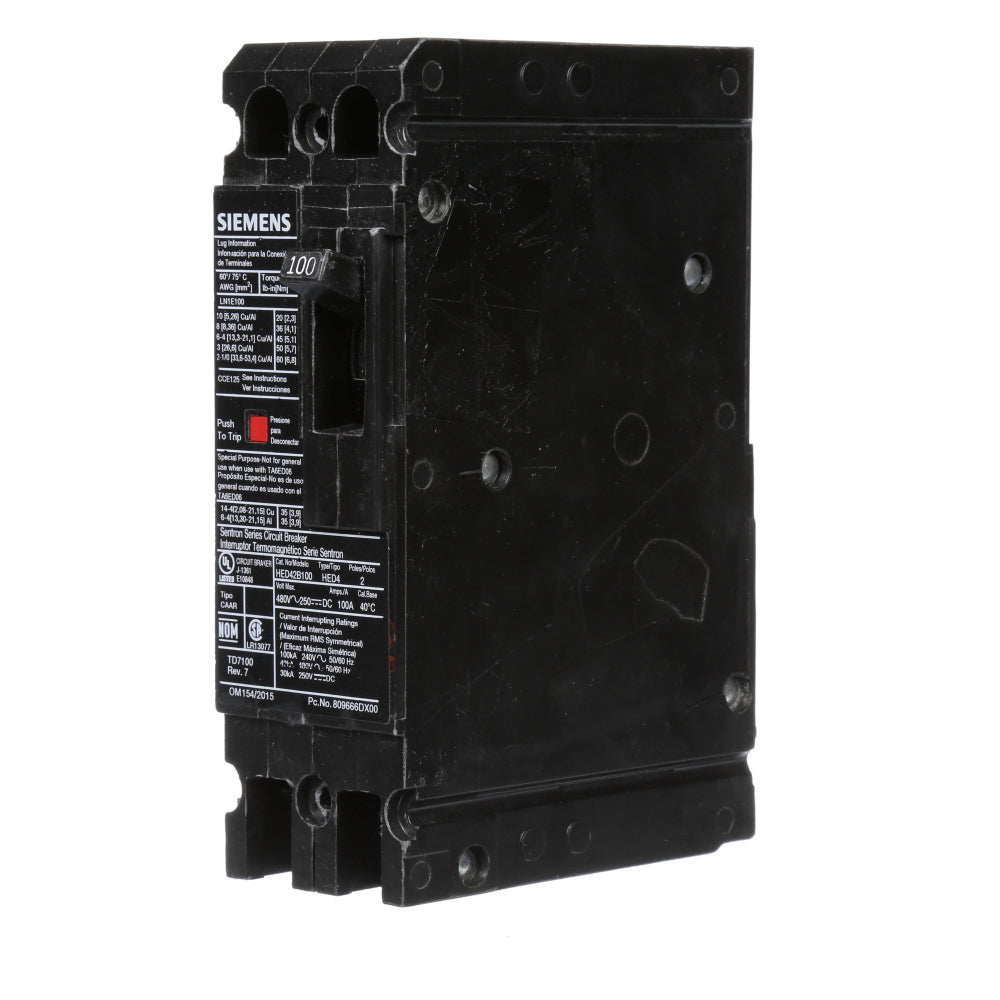

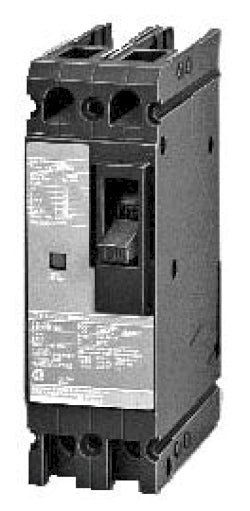

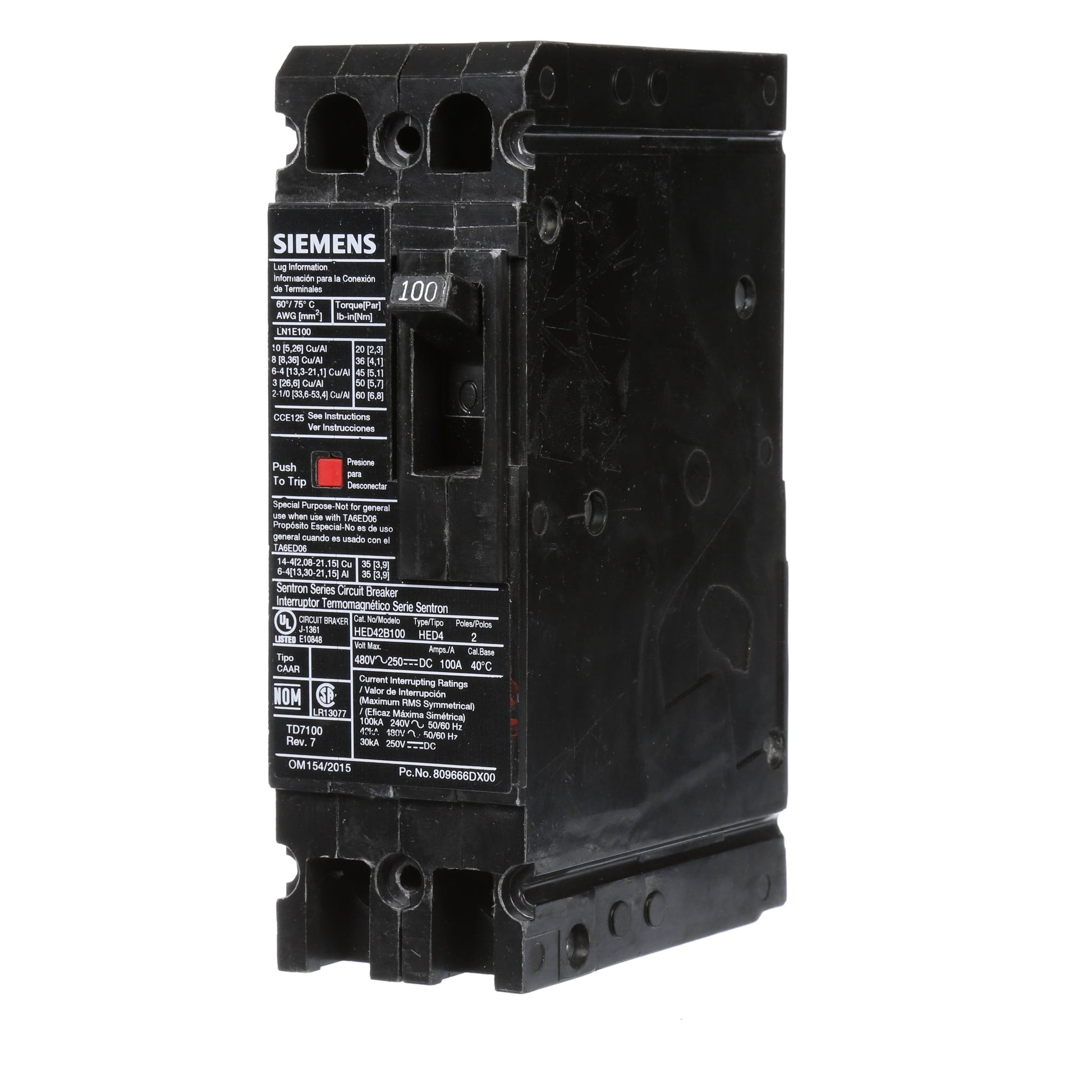

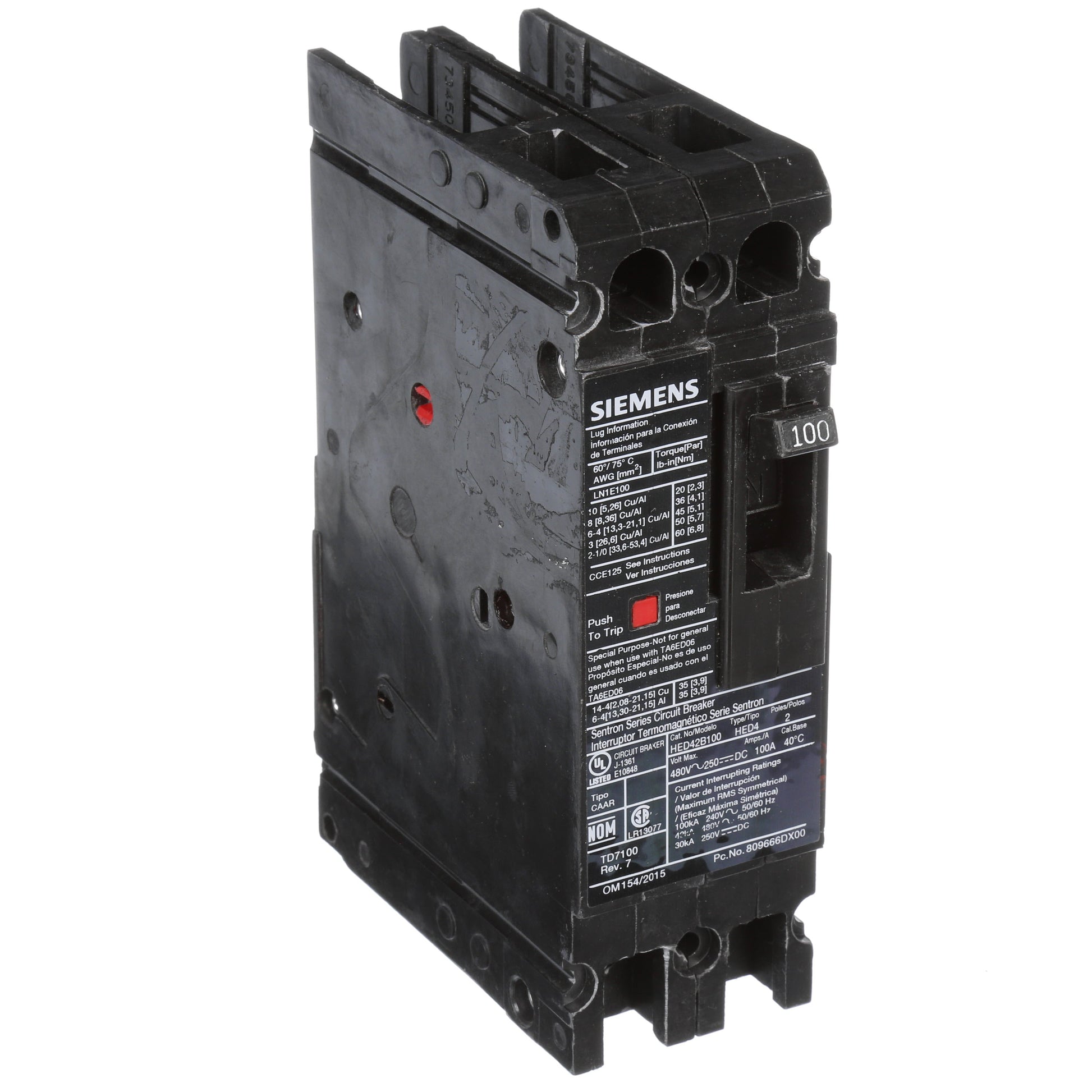

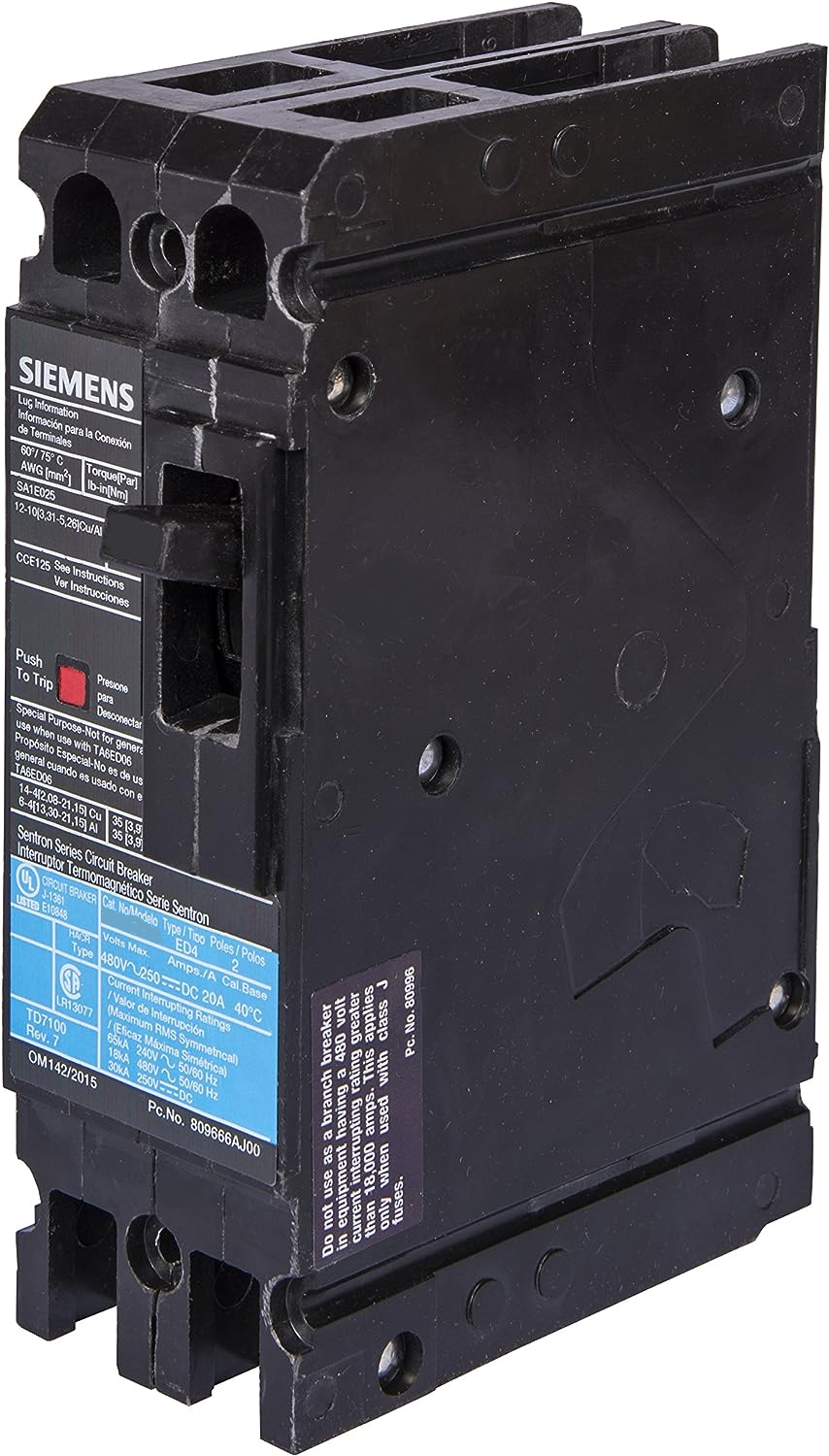

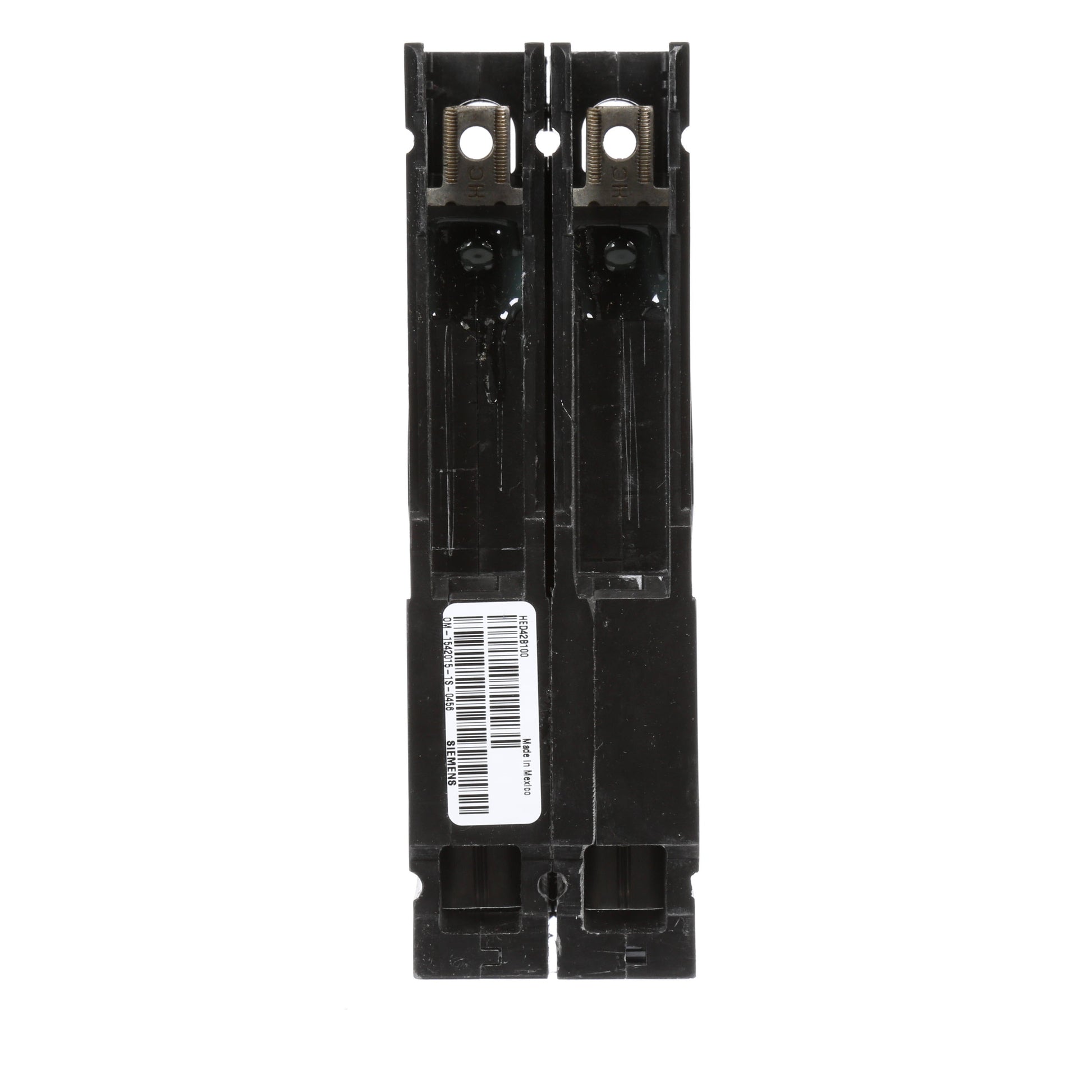

Siemens HED42B100 Molded Case Circuit Breaker | 480V 100A 2P 42kA@480V Lug In Panelboard Sentron Series
Siemens HED42B100 Molded Case Circuit Breaker | 480V 100A 2P 42kA@480V Lug In Panelboard Sentron Series
Price:
Sale
Sold out
Regular price
$3,766.69 USD
Regular price
$4,272.00 USD
Sale price
$3,766.69 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Out of stock
Couldn't load pickup availability
Product Description:
The Siemens HED42B100 is a Molded Case Circuit Breaker from the Sentron Series family. It is a 2-pole, 100 amp breaker rated for 480 volts with an interrupting capacity of 42kA. This thermal magnetic breaker features a lug-in panelboard connection for reliable electrical protection.
Key Features:
✔ Part Number: HED42B100
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Sentron Series
✔ Type: HED
✔ Voltage: 480
✔ Amperage: 100
✔ Poles: 2
✔ AIC rating: 42kA@480V
✔ Connection: Lug In Panelboard
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Load Side Lug
✔ Frame Size: 125A/ED
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 10 AWG
✔ Breaker Type: High Interrupting Capacity
✔ Protection: Thermal Magnetic
✔ Phase Connection: Any
✔ UPC: 783643210066
✔ GTIN: 00783643210066
✔ Country of Origin: Mexico
✔ Dimensions: 2 in x 6.35 in
✔ Weight: 5
✔ Panel Type: SB Switchboards, Sentron Panelboards
✔ Standards: IEC 60947-2, UL 489
✔ Certification: IEC 60947-2, UL 489
