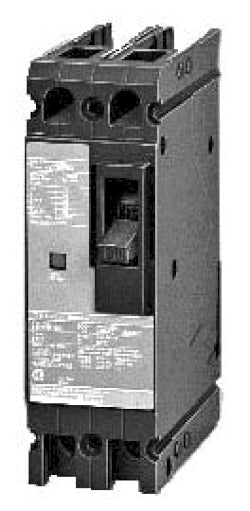

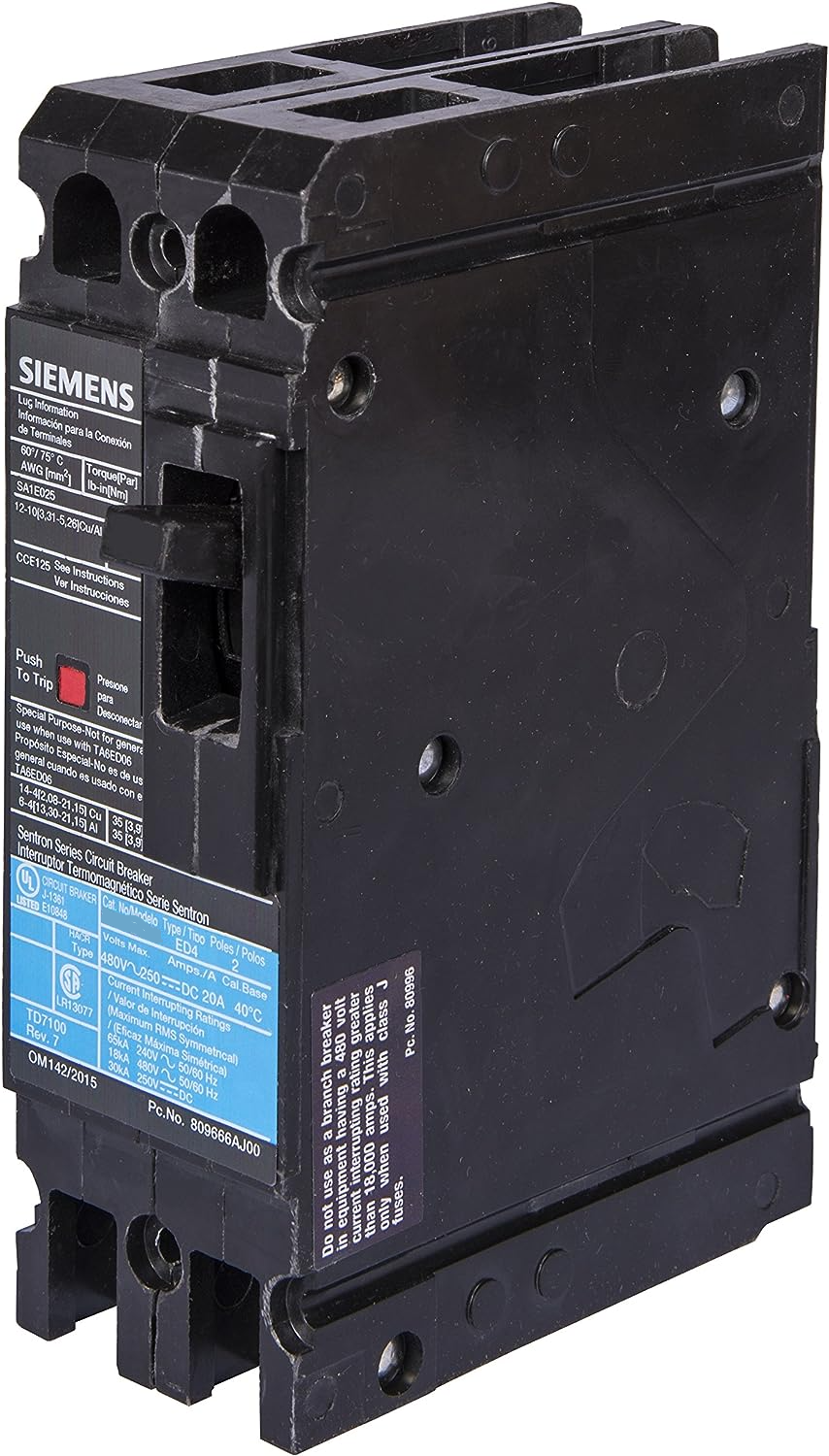

Siemens HED42B110 Circuit Breaker | 480V 110A 2P 42kA@480V Lug In Panelboard Sentron Series

Product Description:
The Siemens HED42B110 is a Molded Case Circuit Breaker from the Sentron Series family. It features 2 poles, 480V voltage, and 110A amperage with a 42kA@480V AIC rating. This breaker uses a Lug In Panelboard connection and offers Thermal Magnetic protection. It is compatible with SB Switchboards and Sentron Panelboards.

Key Features:
✔ Part Number: HED42B110
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Sentron Series
✔ Type: HED
✔ Voltage: 480
✔ Amperage: 110
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 42kA@480V
✔ Connection: Lug In Panelboard
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Load Side Lug
✔ Frame Size: 125A/ED
✔ MCM Size: Min. Wire Size 10 AWG Max. Wire Size 1/0 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ UPC: 783643210073
✔ GTIN: 00783643210073
✔ Country of Origin: Mexico
✔ Weight: 5
✔ Panel Type: SB Switchboards, Sentron Panelboards
✔ Standards: HACR Rated, UL Listed
