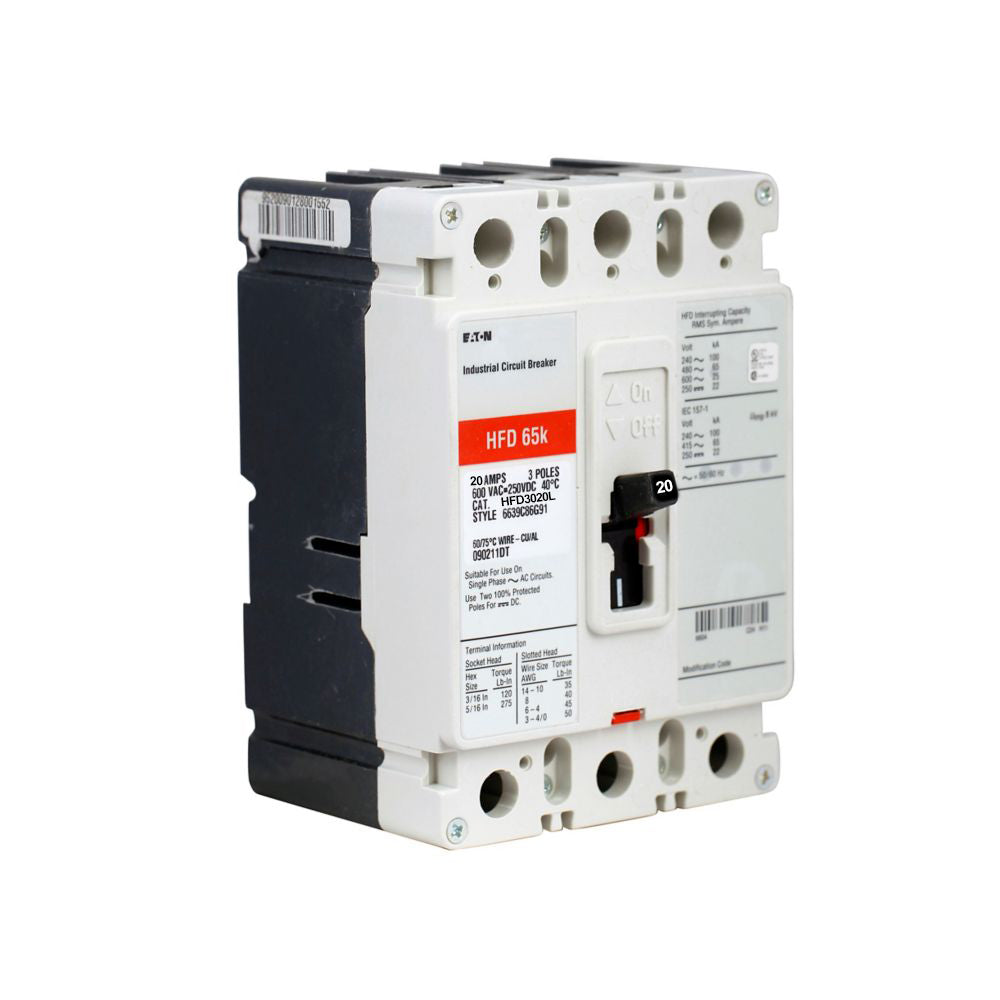

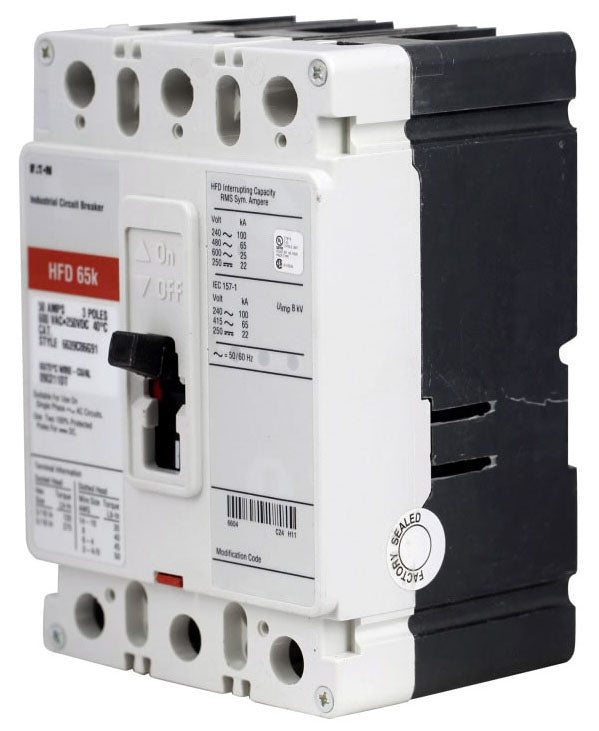

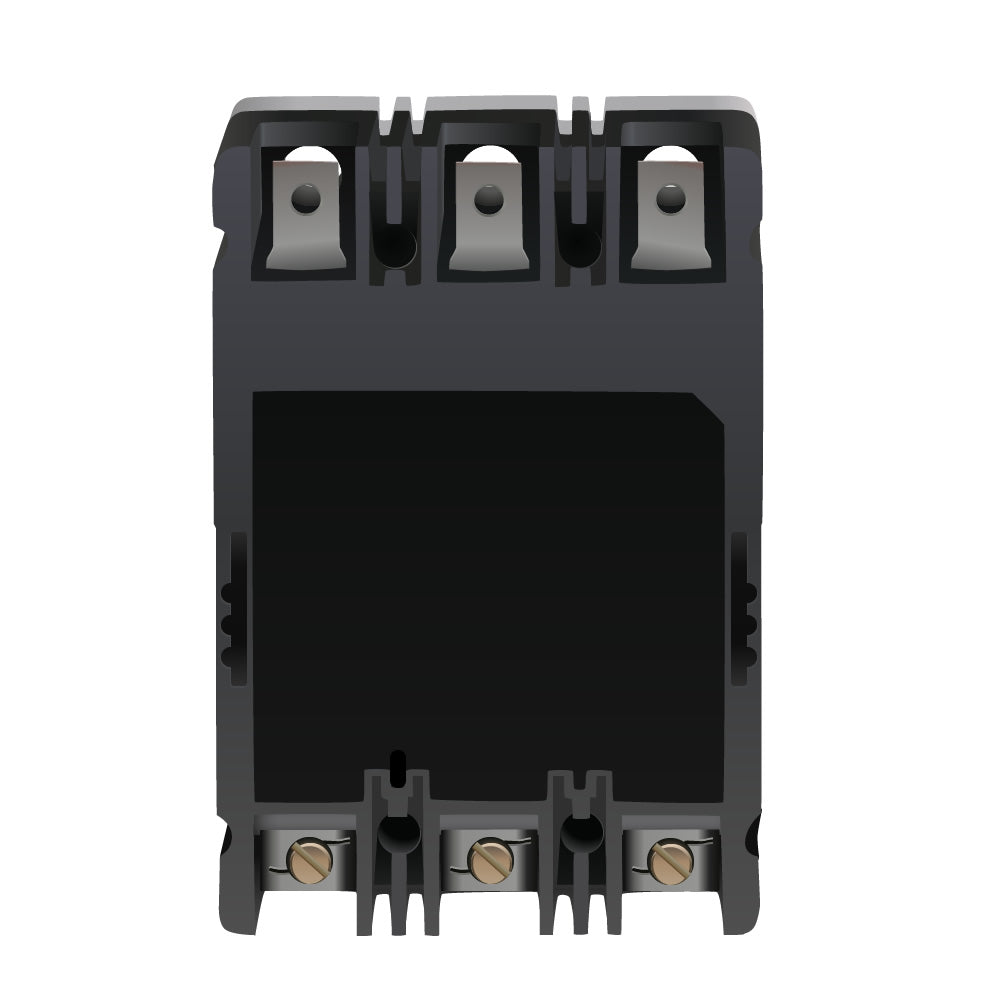

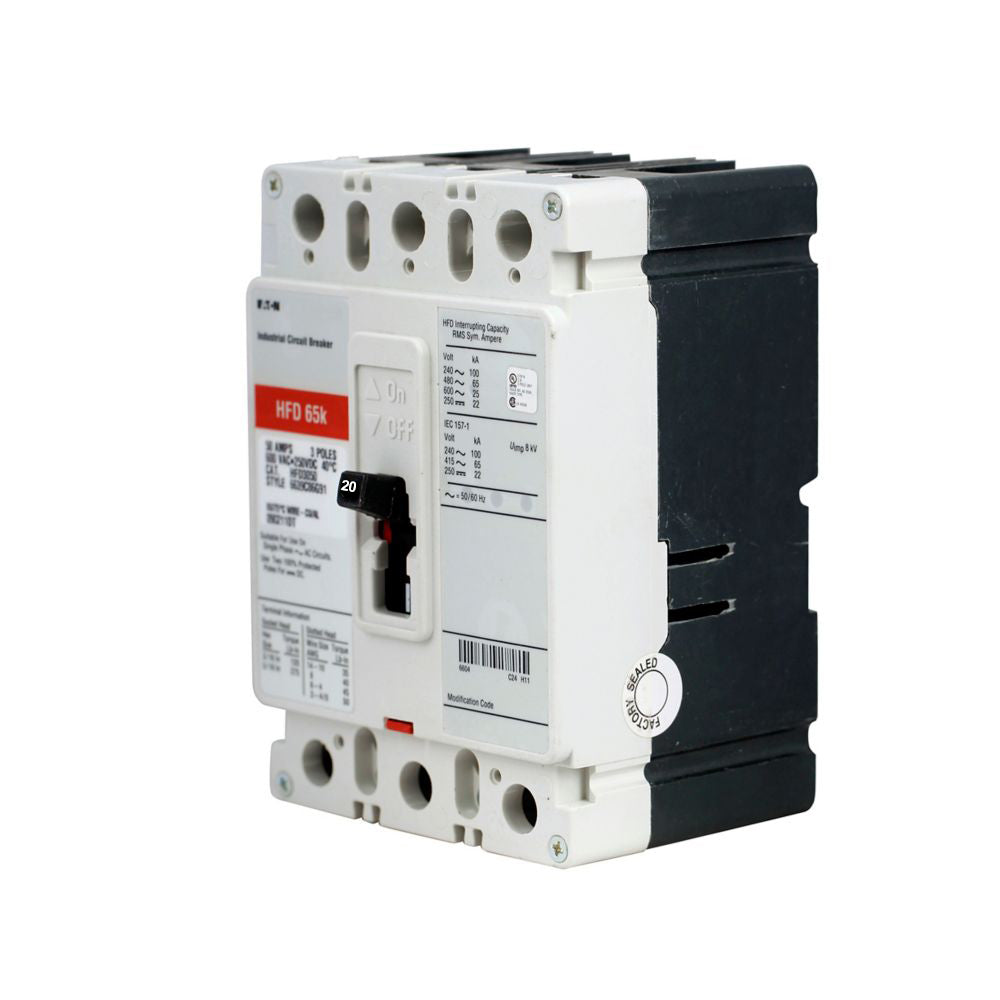

Cutler Hammer HFD3020L Circuit Breaker | 600V 20A 3P 65kA@480V Feed-Thru Series C

Product Description:
The Cutler Hammer HFD3020L is a 3-pole Molded Case Circuit Breaker from the Series C family. It is rated for 600 Volts and 20 amps, with an AIC rating of 65kA at 480V. This breaker features a Feed-Thru connection and provides Thermal Magnetic protection for reliable circuit interruption.

Key Features:
✔ Part Number: HFD3020L
✔ Manufacturer: Cutler Hammer
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Series C
✔ Type: HFD
✔ Voltage: 600
✔ Amperage: 20
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 65kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: F Frame
✔ Protection: Thermal Magnetic
✔ UPC: 786679175071
✔ GTIN: 00786679175071
✔ Country of Origin: Dominican Republic
✔ Dimensions: Length 3.38in Height 6in Width 4.13in
✔ Weight: 4
✔ Certification: UL Listed
