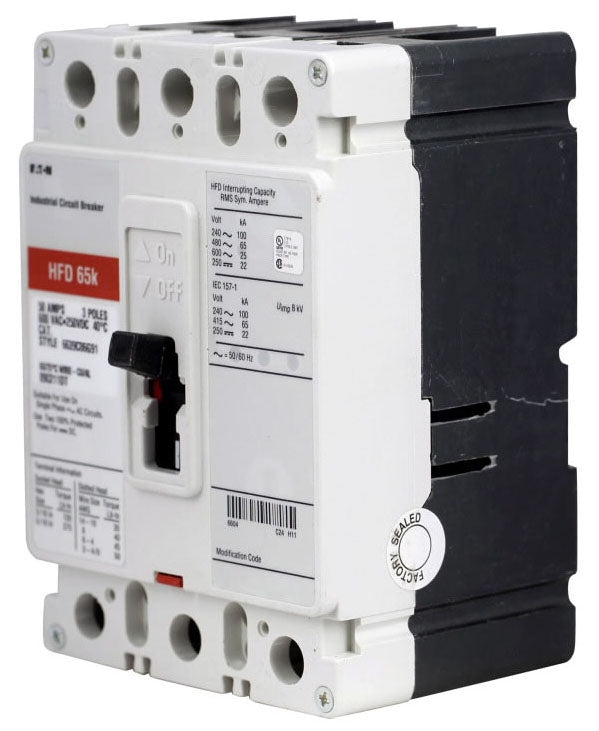

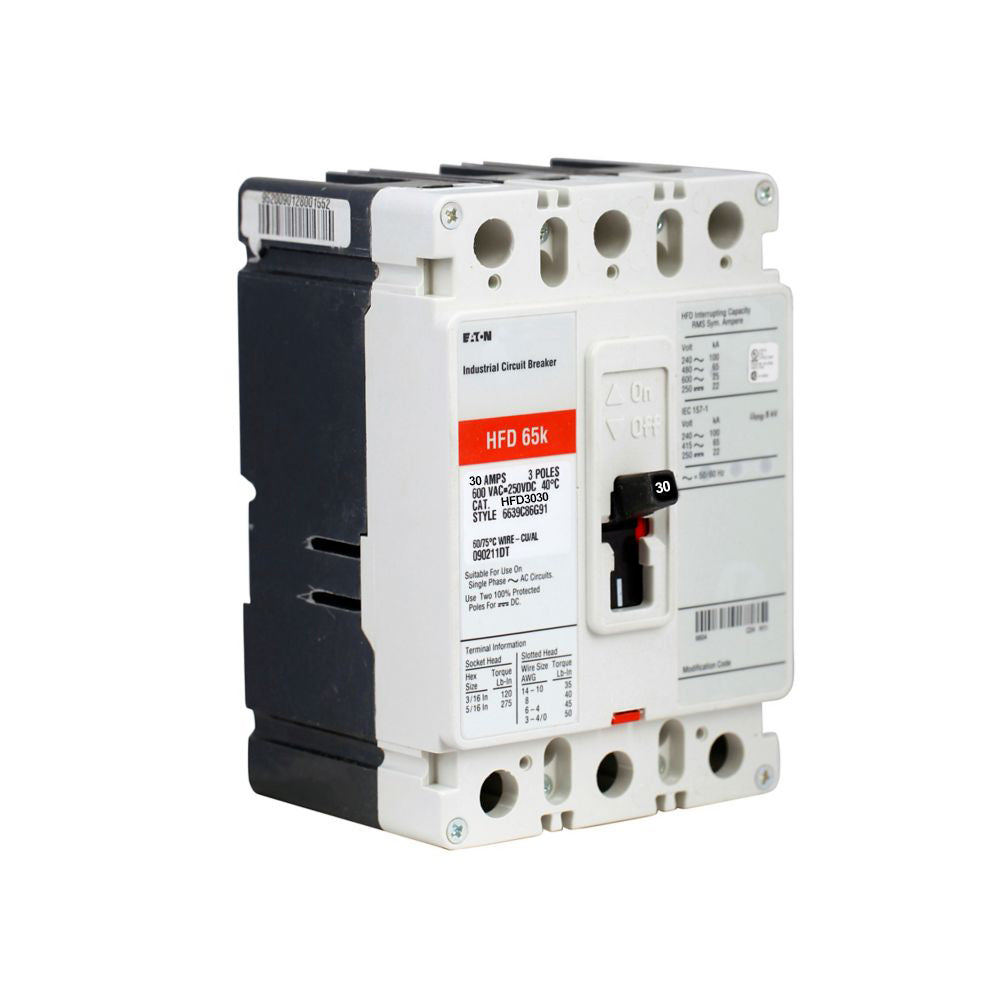

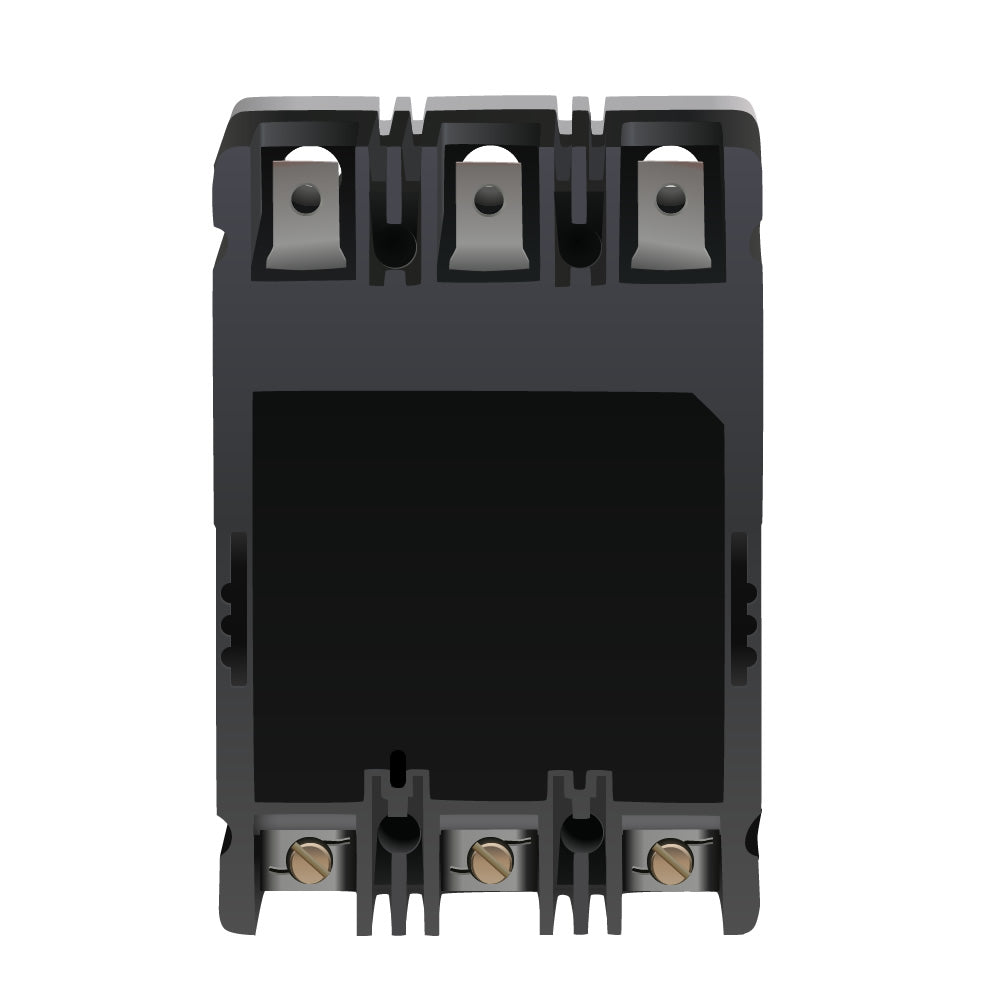

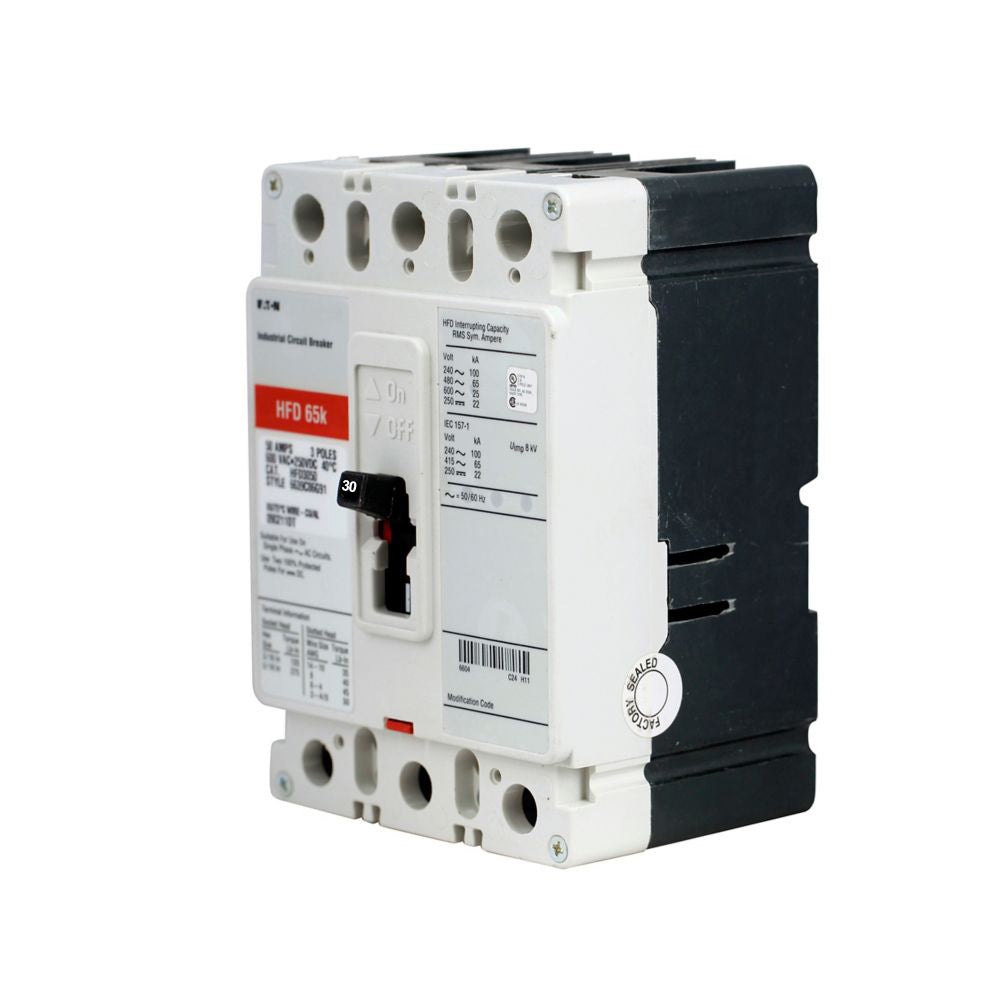

Eaton HFD3030 Circuit Breaker | 600V 30A 3P 65kA@480V Free Standing Series C

Product Description:
The Eaton HFD3030 is a Molded Case Circuit Breaker from the Series C family. It features a 3-pole design with a 600V, 30A rating and 65kA@480V AIC rating. This breaker uses free-standing connections and offers thermal magnetic protection. It is suitable for various panel types including Allen Bradley MCC and Eaton MCC.

Key Features:
✔ Part Number: HFD3030
✔ Manufacturer: Eaton, Cutler Hammer
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Series C
✔ Type: HFD
✔ Voltage: 600
✔ Amperage: 30
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 65kA@480V
✔ Connection: Free Standing
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Load Side Lug
✔ Frame Size: 225A/F
✔ MCM Size: Min. Wire Size 14 AWG Max. Wire Size 1/0 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ UPC: 786679175804
✔ GTIN: 00786679175804
✔ Country of Origin: Dominican Republic
✔ Dimensions: 4.13 in x 3.38 in
✔ Weight: 4
✔ Panel Type: Allen Bradley MCC, Eaton MCC Eaton, Rockwell Automation Enclosed Control, Switchboard, Westinghouse
✔ Standards: CSA Certified, IEC Rated, UL Listed
✔ Certification: CSA Certified, IEC Rated, UL Listed
