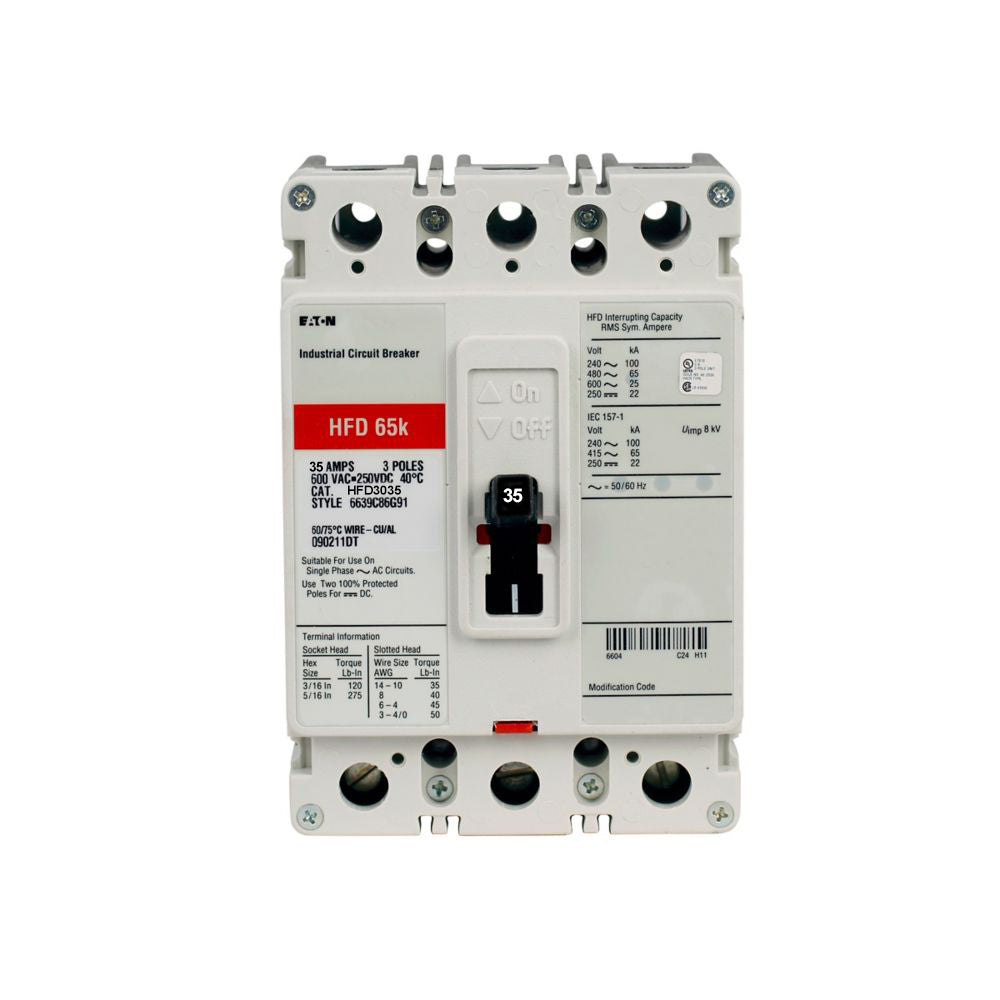

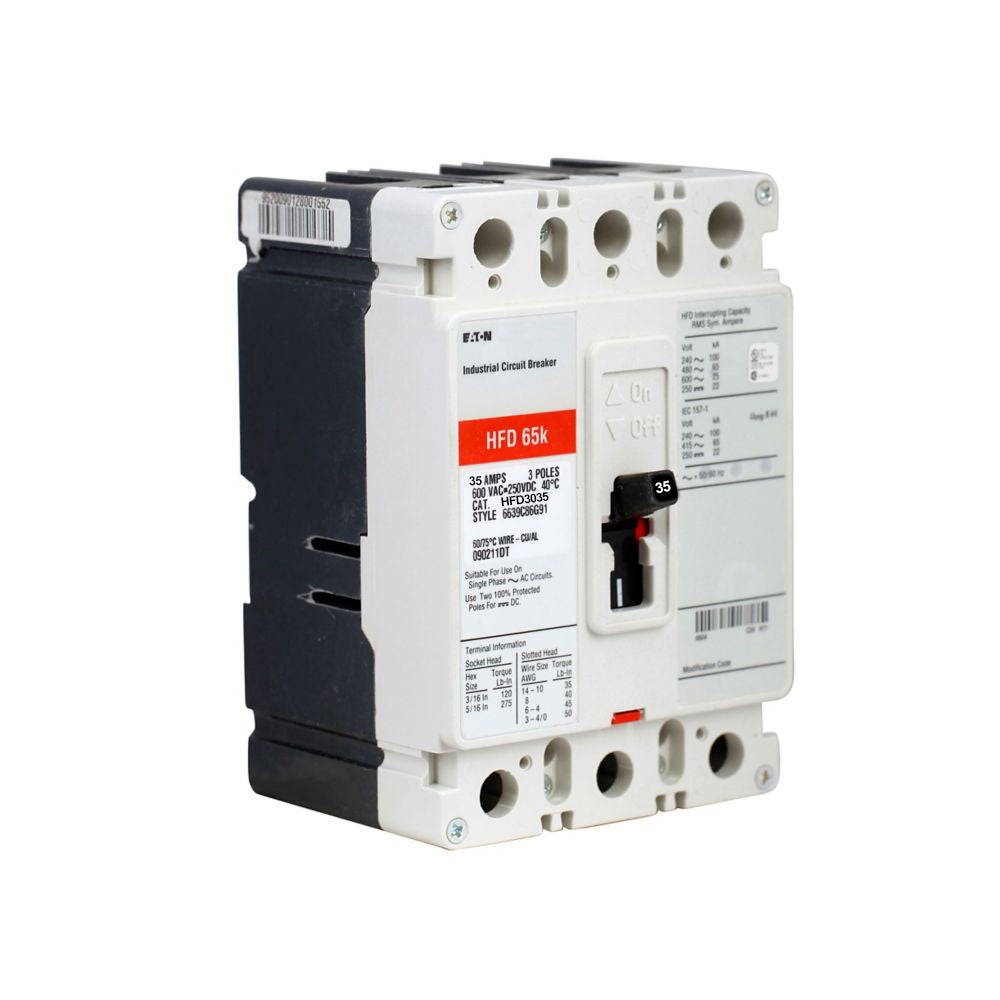

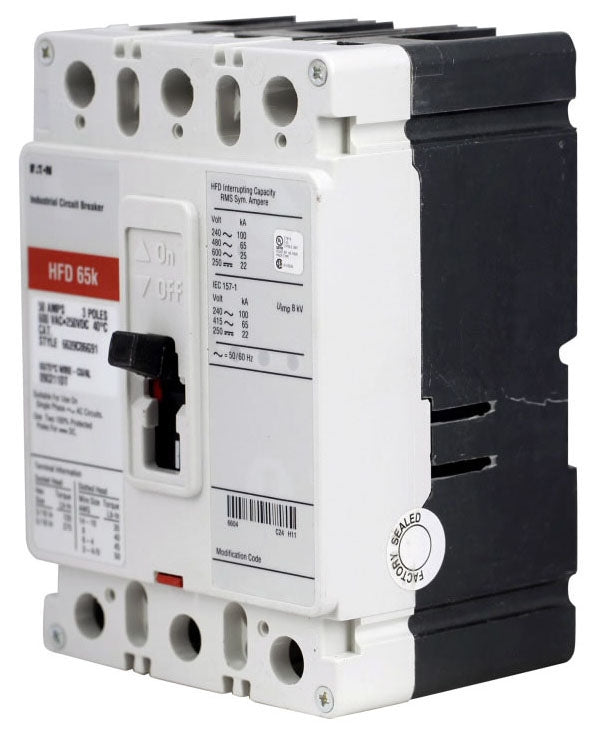

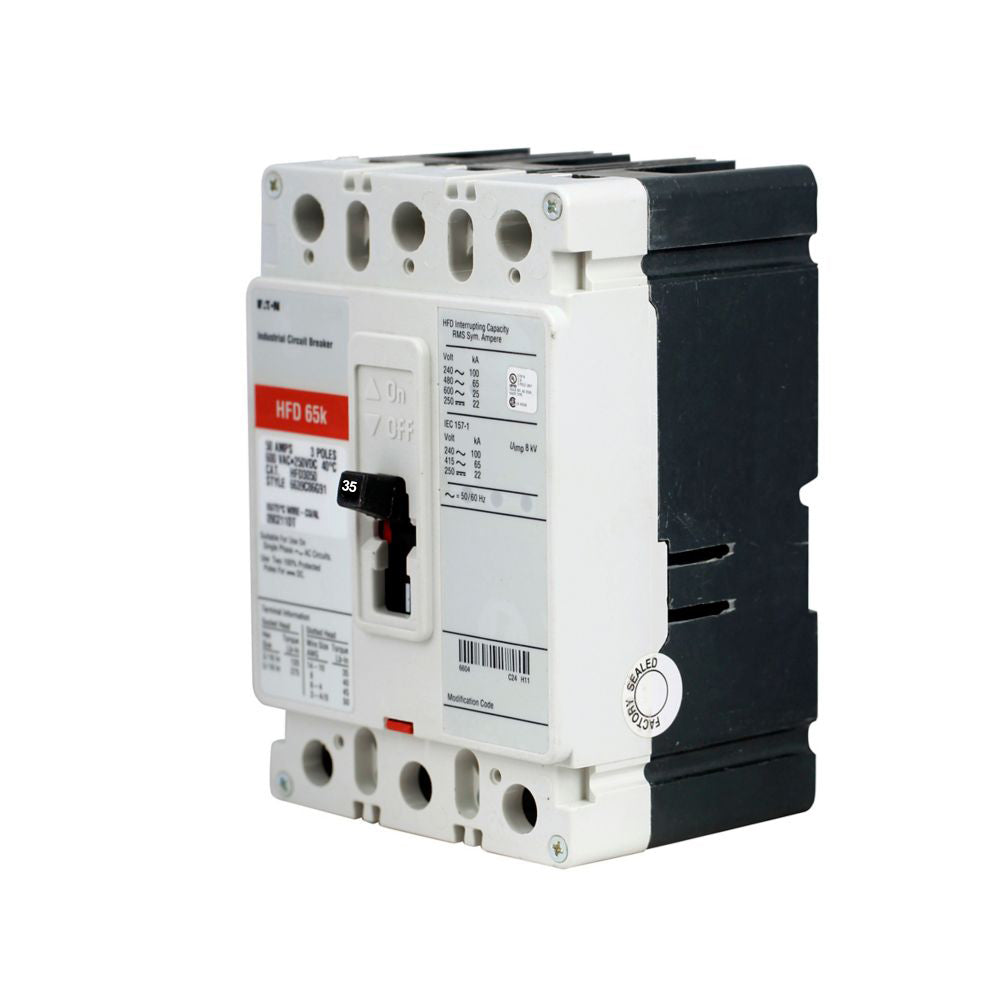

Eaton HFD3035 Circuit Breaker | 600V 35A 3P 65kA@480V Bolt-On Series C
Eaton HFD3035 Circuit Breaker | 600V 35A 3P 65kA@480V Bolt-On Series C
Price:
Sale
Sold out
Regular price
$480.43 USD
Regular price
$3,090.35 USD
Sale price
$480.43 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Low stock: 4 left
Couldn't load pickup availability
Product Description:
The Eaton HFD3035 is a Molded Case Circuit Breaker from the Series C family. It is a 3-pole, 35 amp breaker rated for 600 Volts with an AIC rating of 65kA at 480V. This model features a bolt-on connection and provides thermal magnetic protection for reliable circuit interruption.
Key Features:
✔ Part Number: HFD3035
✔ Manufacturer: Eaton
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Series C
✔ Type: HFD
✔ Voltage: 600
✔ Amperage: 35
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 65kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: F Frame
✔ Protection: Thermal Magnetic
✔ UPC: 786679175927
✔ GTIN: 00786679175927
✔ Country of Origin: Dominican Republic
✔ Dimensions: Length 3.38in Height 6in Width 4.13in
✔ Weight: 4
✔ Certification: UL Listed
The Eaton HFD3035 is a Molded Case Circuit Breaker from the Series C family. It is a 3-pole, 35 amp breaker rated for 600 Volts with an AIC rating of 65kA at 480V. This model features a bolt-on connection and provides thermal magnetic protection for reliable circuit interruption.
Key Features:
✔ Part Number: HFD3035
✔ Manufacturer: Eaton
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Series C
✔ Type: HFD
✔ Voltage: 600
✔ Amperage: 35
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 65kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: F Frame
✔ Protection: Thermal Magnetic
✔ UPC: 786679175927
✔ GTIN: 00786679175927
✔ Country of Origin: Dominican Republic
✔ Dimensions: Length 3.38in Height 6in Width 4.13in
✔ Weight: 4
✔ Certification: UL Listed
