Cutler Hammer

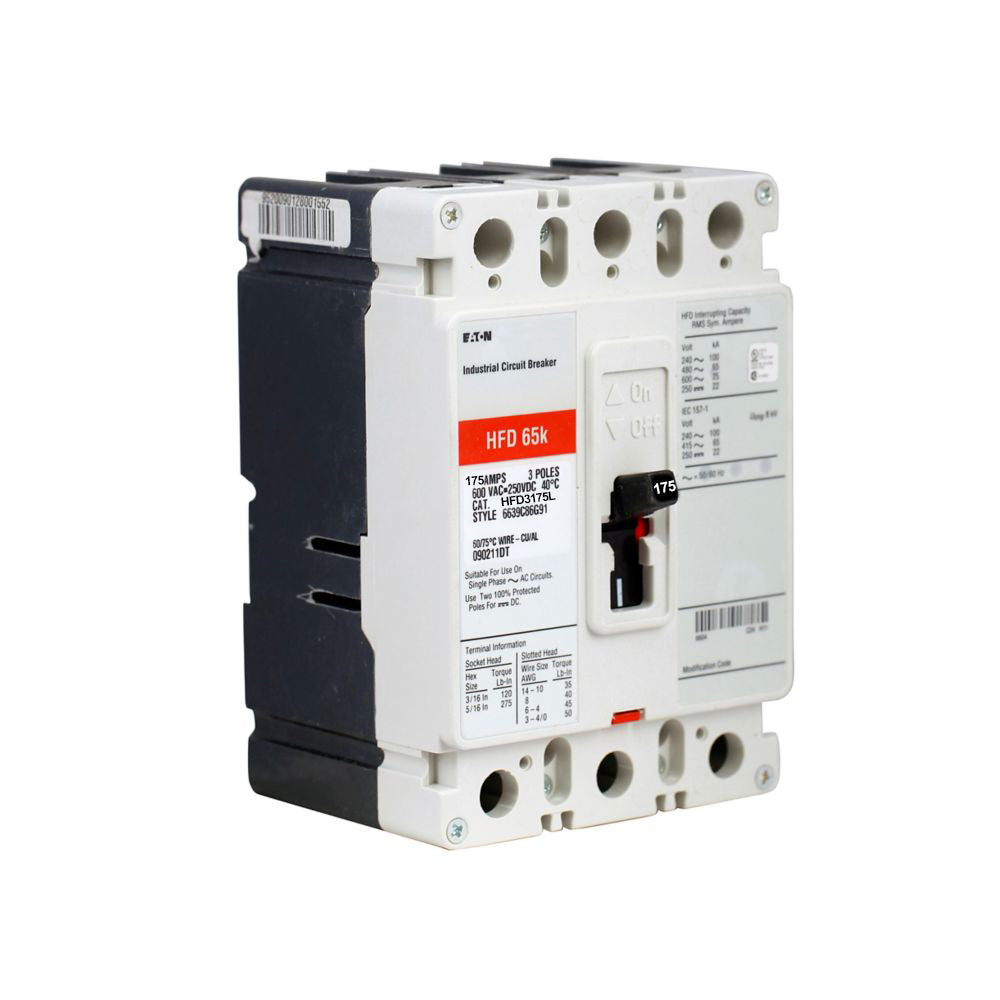

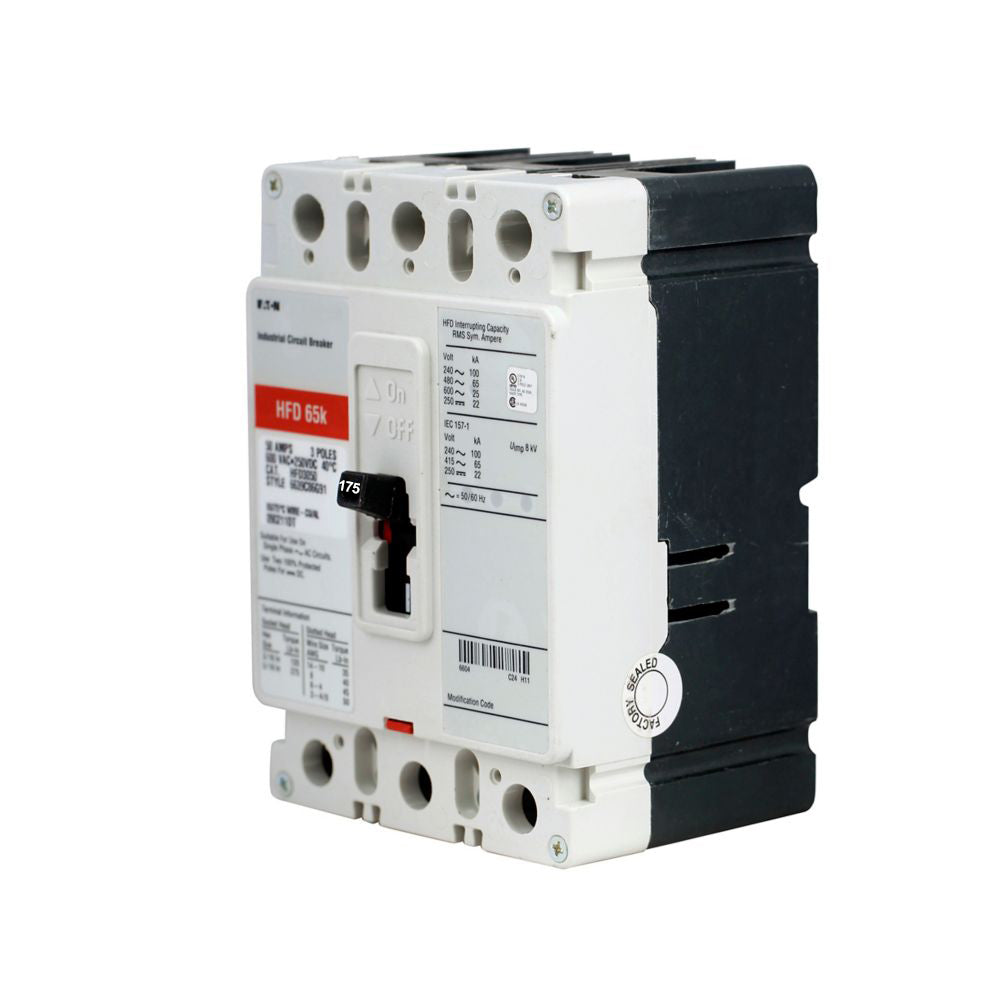

Westinghouse HFD3175 Molded Case Circuit Breaker | 600V 175A 3P 65kA@480V Bolt-On Series C
Westinghouse HFD3175 Molded Case Circuit Breaker | 600V 175A 3P 65kA@480V Bolt-On Series C
Price:
Sale
Sold out
Regular price
$904.40 USD
Regular price
$6,954.80 USD
Sale price
$904.40 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Low stock: 3 left
Couldn't load pickup availability
Product Description:
The Eaton HFD3175 is a Molded Case Circuit Breaker from the Series C family. It is a 3-pole, 175 amp breaker rated for 600 Volts with an AIC rating of 65kA@480V. This thermal magnetic circuit breaker features a bolt-on connection for secure installation.
Key Features:
✔ Part Number: HFD3175
✔ Manufacturer: Westinghouse
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Series C
✔ Type: HFD
✔ Voltage: 600
✔ Amperage: 175
✔ Poles: 3
✔ AIC rating: 65kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Load Side Lug
✔ Frame Size: 225A/F
✔ MCM Size: Min. Wire Size 14 AWG Max. Wire Size 1/0 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ UPC: 786679015445
✔ GTIN: 00786679015445
✔ Country of Origin: Dominican Republic
✔ Dimensions: 4.13 in x 3.38 in
✔ Weight: 4.4
✔ Panel Type: Allen Bradley MCC, Eaton MCC Eaton, Rockwell Automation Enclosed Control, Switchboard, Westinghouse
✔ Standards: CSA Certified, IEC Rated, UL Listed
✔ Certification: CSA Certified, IEC Rated, UL Listed
The Eaton HFD3175 is a Molded Case Circuit Breaker from the Series C family. It is a 3-pole, 175 amp breaker rated for 600 Volts with an AIC rating of 65kA@480V. This thermal magnetic circuit breaker features a bolt-on connection for secure installation.
