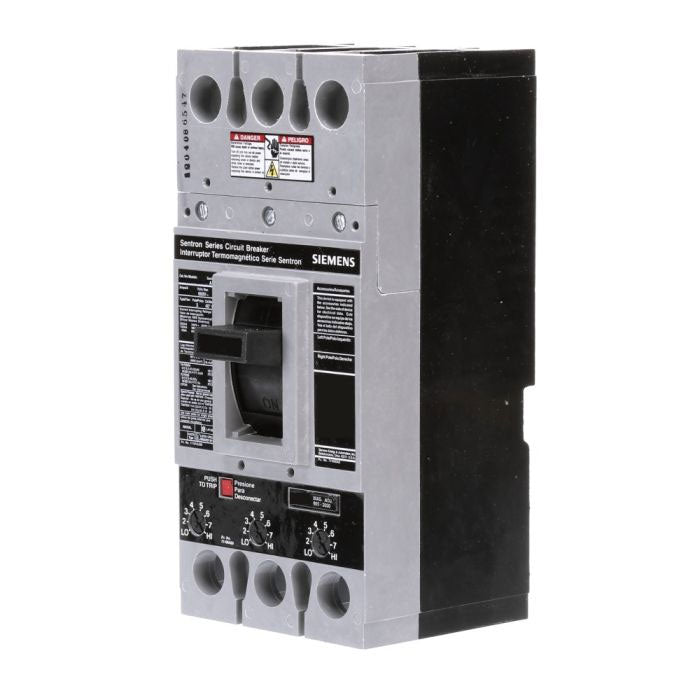

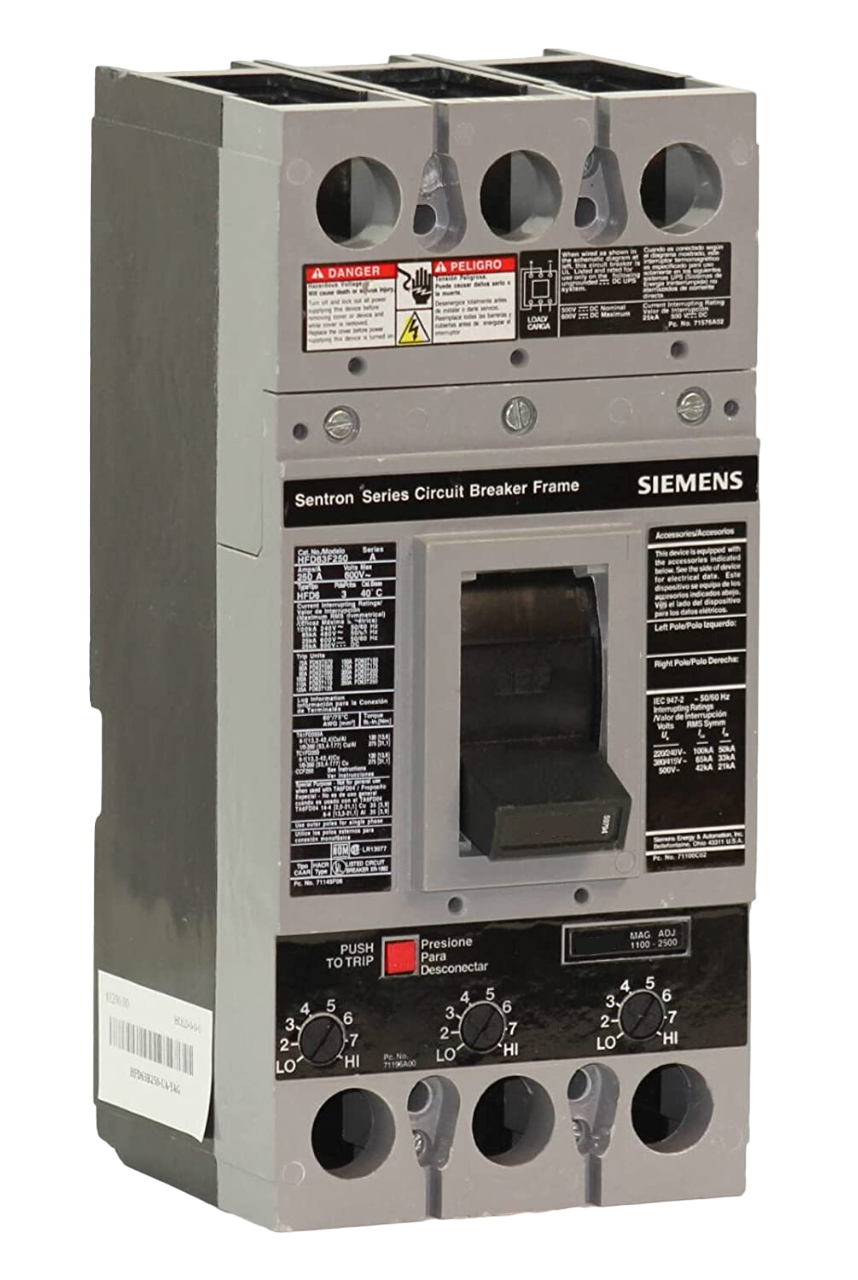

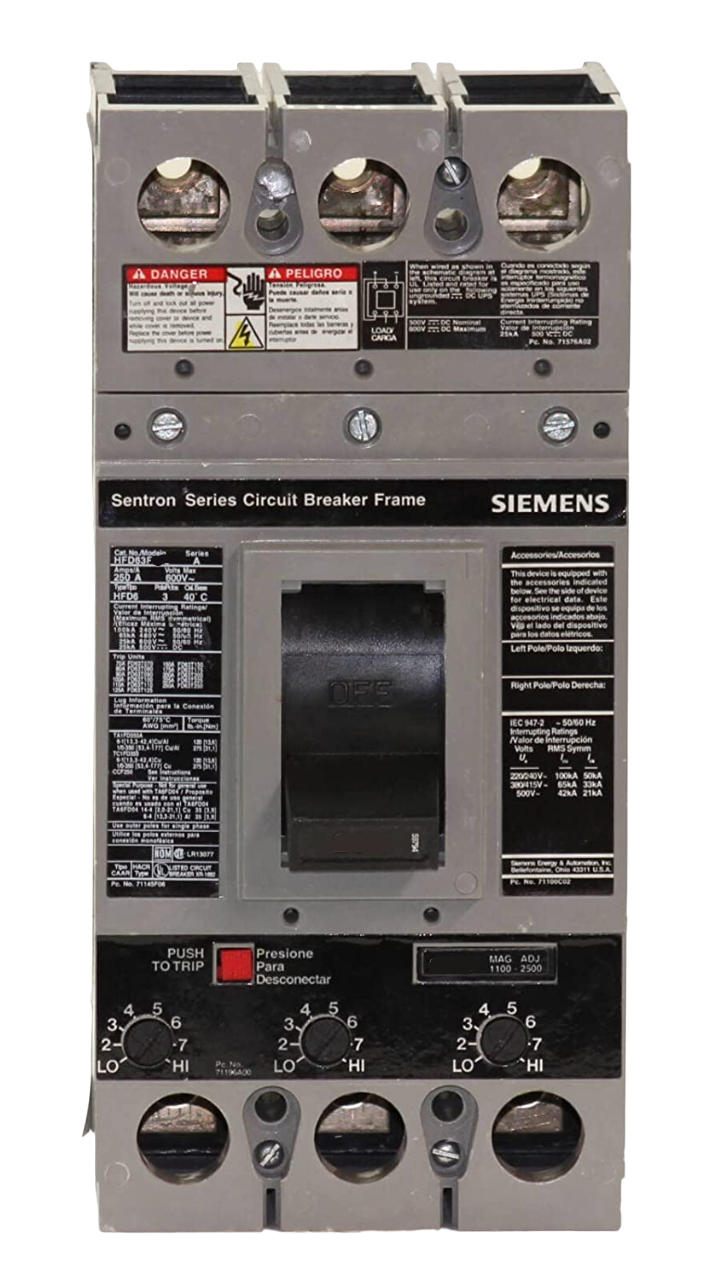

Siemens HFD63B110 Circuit Breaker | 600V 110A 3P 65kA@480V Bolt-On Sentron Series

Product Description:
The Siemens HFD63B110 is a Molded Case Circuit Breaker from the Sentron Series family. It is a 3-pole, 110 amp breaker rated for 600 volts with a 65kA@480V interrupting capacity. This thermal magnetic circuit breaker uses a bolt-on connection for secure installation. Lugs are not included and must be purchased separately.

Key Features:
✔ Part Number: HFD63B110
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Sentron Series
✔ Type: HFD
✔ Voltage: 600
✔ Amperage: 110
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 65kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: FD Frame
✔ Protection: Thermal Magnetic
✔ UPC: 783643211803
✔ GTIN: 00783643211803
✔ Country of Origin: Mexico
✔ Dimensions: 5.906 x 9.843 x 6.693 (W x H x D) Inches
✔ Weight: 13
✔ Panel Type: S4, P4, SPP, F1,FC1, FCII, CDP-5, CDP-6, SB1-3, S5, P5, SPP/FPP, F2
