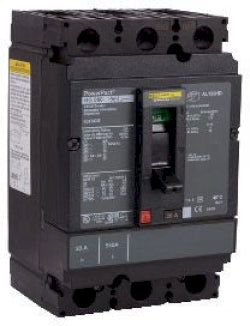

Square D HGF36040 Circuit Breaker | 600V 40A 3P 35kA@480V Bolt-On Powerpact

Product Description:
The Square D HGF36040 is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 40A rating and a 35kA@480V AIC rating. This thermal magnetic breaker uses a bolt-on connection for secure installation. It is suitable for industrial and commercial electrical systems.

Key Features:
✔ Part Number: HGF36040
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HGF
✔ Voltage: 600
✔ Amperage: 40
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 35kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Busbar Connection
✔ Frame Size: H
✔ Wire Size: Min. 14 AWG (Cu/Al), Max. 3/0 AWG (Cu/Al)
✔ Protection: Thermal Magnetic
✔ UPC: 785901959915
✔ GTIN: 00785901959915
✔ Country of Origin: United States
✔ Dimensions: 4.12 in x 6.4 in
✔ Weight: 1.81
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
