Square D HGF36050 Molded Case Circuit Breaker | 600V 50A 3P 35kA@480V Bolt-On Powerpact
Square D HGF36050 Molded Case Circuit Breaker | 600V 50A 3P 35kA@480V Bolt-On Powerpact
Price:
Sale
Sold out
Regular price
$955.00 USD
Regular price
$1,493.00 USD
Sale price
$955.00 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Low stock: 1 left
Couldn't load pickup availability
Product Description:

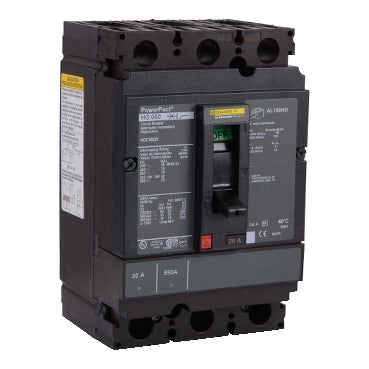

The Square D HGF36050 is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole, 50 amp breaker rated for 600 Volts with an AIC rating of 35kA@480V. This unit features a bolt-on connection and provides thermal magnetic protection for reliable circuit interruption.
Key Features:
✔ Part Number: HGF36050
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HGF
✔ Voltage: 600
✔ Amperage: 50
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 35kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Busbar Connection
✔ Frame Size: H
✔ Wire Size: Min. 14 AWG, Max. 3/0 AWG (Cu/Al)
✔ Protection: Thermal Magnetic
✔ UPC: 785901149231
✔ GTIN: 00785901149231
✔ Country of Origin: United States
✔ Dimensions: 4.12 in x 6.4 in
✔ Weight: 1.81
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
The Square D HGF36050 is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole, 50 amp breaker rated for 600 Volts with an AIC rating of 35kA@480V. This unit features a bolt-on connection and provides thermal magnetic protection for reliable circuit interruption.
Key Features:
✔ Part Number: HGF36050
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HGF
✔ Voltage: 600
✔ Amperage: 50
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 35kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Busbar Connection
✔ Frame Size: H
✔ Wire Size: Min. 14 AWG, Max. 3/0 AWG (Cu/Al)
✔ Protection: Thermal Magnetic
✔ UPC: 785901149231
✔ GTIN: 00785901149231
✔ Country of Origin: United States
✔ Dimensions: 4.12 in x 6.4 in
✔ Weight: 1.81
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
