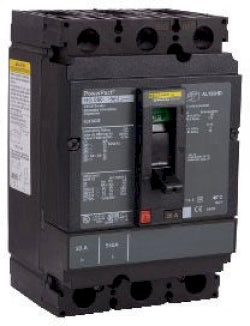

Square D HGF36090 Circuit Breaker | 600V 90A 3P 35kA@480V Bolt-On Powerpact HGF

Product Description:
The Square D HGF36090 is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole, 90 amp breaker rated for 600 volts with a 35kA AIC rating at 480V. This unit features thermal magnetic protection and a bolt-on connection for secure installation. It is designed for reliable circuit protection in industrial and commercial applications.

Key Features:
✔ Part Number: HGF36090
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HGF
✔ Voltage: 600
✔ Amperage: 90
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 35kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Busbar Connection
✔ Frame Size: H
✔ MCM Size: Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
✔ Protection: Thermal Magnetic
✔ UPC: 785901697497
✔ GTIN: 00785901697497
✔ Country of Origin: United States
✔ Dimensions: 4.12 in x 6.4 in
✔ Weight: 1.81
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
✔ Wire Size: AWG 14...AWG 3/0 aluminum/copper terminal
