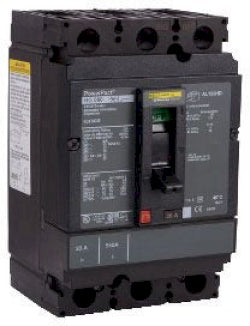

Square D HGF36100 Circuit Breaker | 600V 100A 3P 35kA@480V Bolt-On Powerpact

Product Description:
The Square D HGF36100 is a Powerpact HGF series molded case circuit breaker designed for robust electrical protection. It is a 3-pole, 100 amp breaker rated for 600 volts with a 35kA interrupting capacity at 480V. This thermal magnetic circuit breaker features a bolt-on connection for secure installation. It supports a wide range of wire sizes from 14 AWG to 3/0 AWG for both copper and aluminum conductors.

Key Features:
✔ Part Number: HGF36100
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HGF
✔ Voltage: 600
✔ Amperage: 100
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 35kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Busbar Connection
✔ Frame Size: H
✔ Wire Size: Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
✔ Protection: Thermal Magnetic
✔ UPC: 785901956105
✔ GTIN: 00785901956105
✔ Country of Origin: Mexico
✔ Dimensions: 4.12 in x 6.4 in
✔ Weight: 1.9
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
