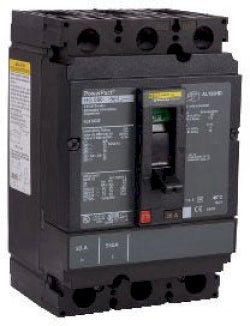

Square D HGF36125 Circuit Breaker | 600V 125A 3P 35kA@480V Bolt-On Powerpact

Product Description:
The Square D HGF36125 is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 125A rating and a 35kA@480V AIC rating. This breaker uses a Bolt-On connection and offers Thermal Magnetic protection. It does not include lugs, which must be ordered separately.

Key Features:
✔ Part Number: HGF36125
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HGF
✔ Voltage: 600
✔ Amperage: 125
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 35kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Busbar Connection
✔ Frame Size: H
✔ MCM Size: Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
✔ Protection: Thermal Magnetic
✔ UPC: 785901612261
✔ GTIN: 00785901612261
✔ Country of Origin: United States
✔ Dimensions: 4.12 in x 6.4 in
✔ Weight: 1.9
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
