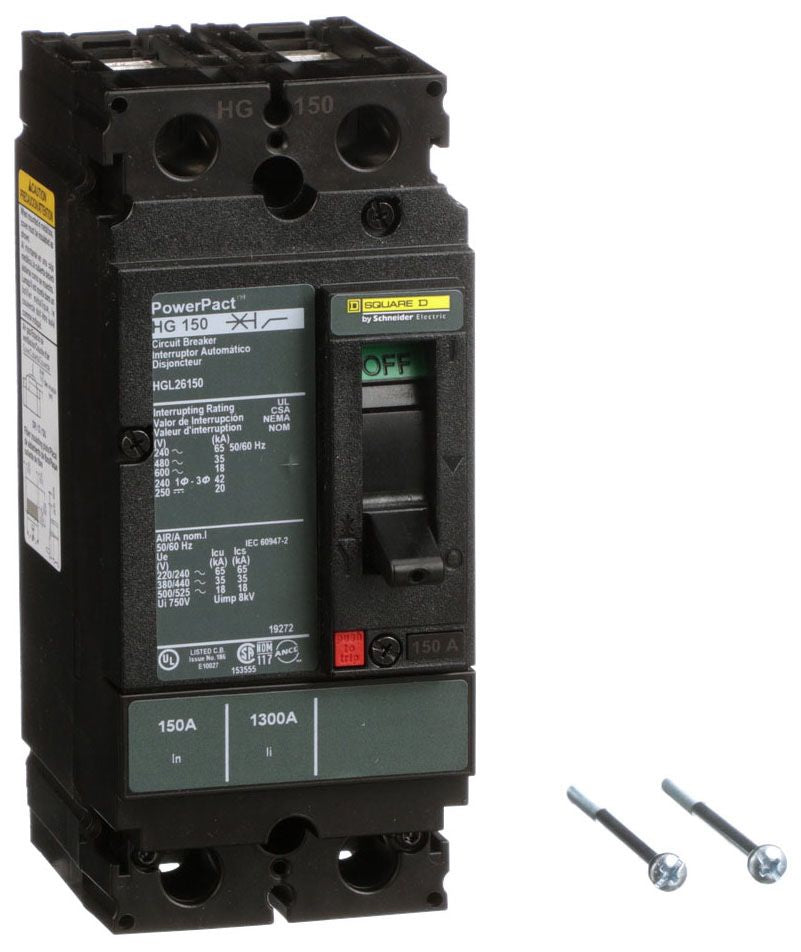

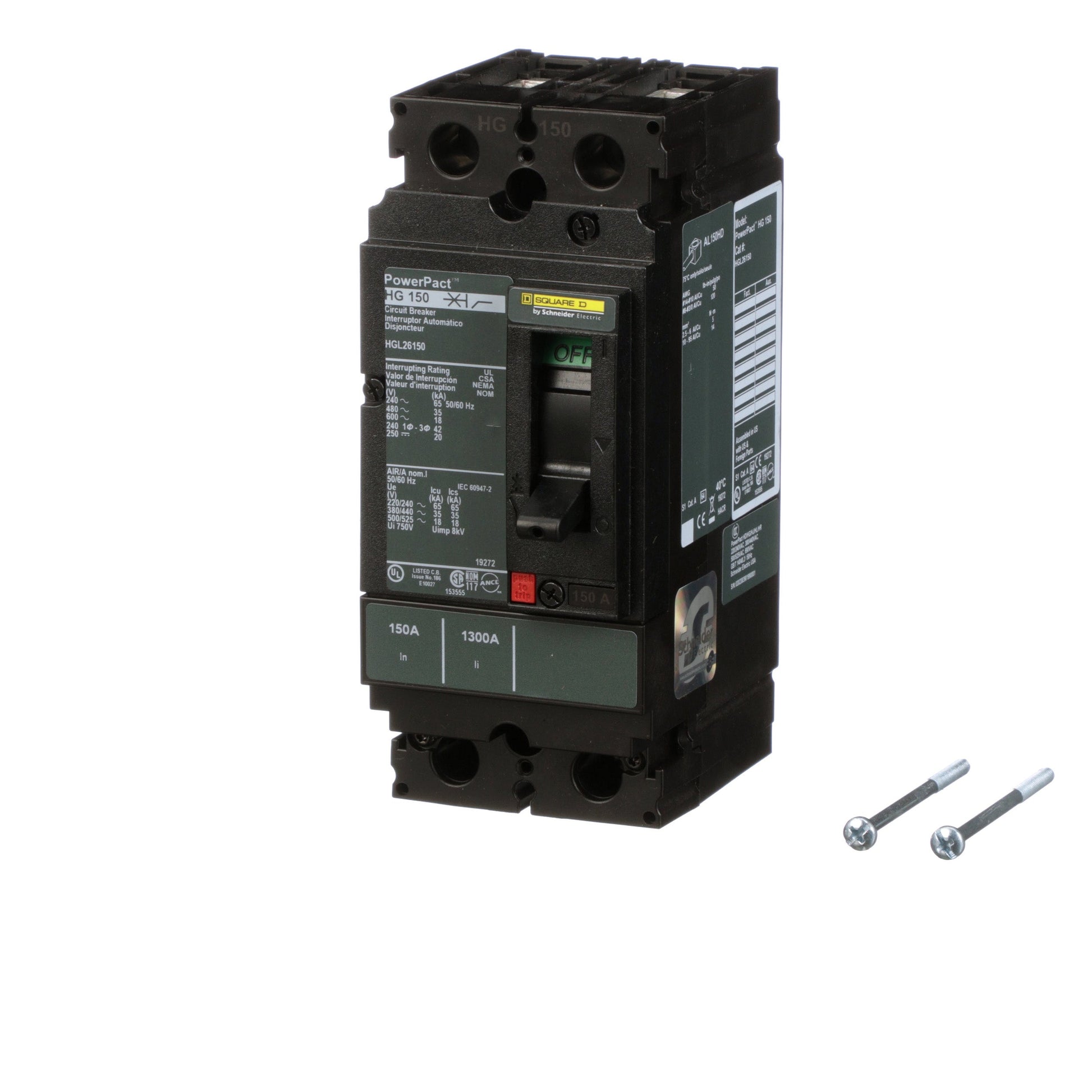

Square D HGL26150 Circuit Breaker | 600V 150A 2P 35kA@480V Bolt-On Powerpact

Product Description:
The Square D HGL26150 is a Molded Case Circuit Breaker from the Powerpact family. It features a 2-pole design with a 600V, 150A rating and a 35kA@480V AIC rating. This thermal magnetic breaker uses a bolt-on connection for secure installation. It is suitable for industrial and commercial electrical systems.

Key Features:
✔ Part Number: HGL26150
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HGL
✔ Voltage: 600
✔ Amperage: 150
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 35kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Line/Load Lug
✔ Frame Size: 150A/HG
✔ Wire Size: AWG 14...AWG 3/0 aluminum/copper terminal
✔ Protection: Thermal Magnetic
✔ UPC: 785901433934
✔ GTIN: 00785901433934
✔ Country of Origin: United States
✔ Dimensions: 2.74 in x 6.4 in
✔ Weight: 1.38
✔ Standards: CE, CSA, IEC, UL Listed
✔ Certification: CE, CSA, IEC, UL Listed
