Square D HGL36000S15 Molded Case Circuit Breaker | 600V 150A 3P 35kA@480V Bolt-On Powerpact HGL
Square D HGL36000S15 Molded Case Circuit Breaker | 600V 150A 3P 35kA@480V Bolt-On Powerpact HGL
Price:
Sale
Sold out
Regular price
$783.57 USD
Regular price
$1,799.00 USD
Sale price
$783.57 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Low inventory, please call (855) 875-5050 for stock check
Couldn't load pickup availability
Product Description:

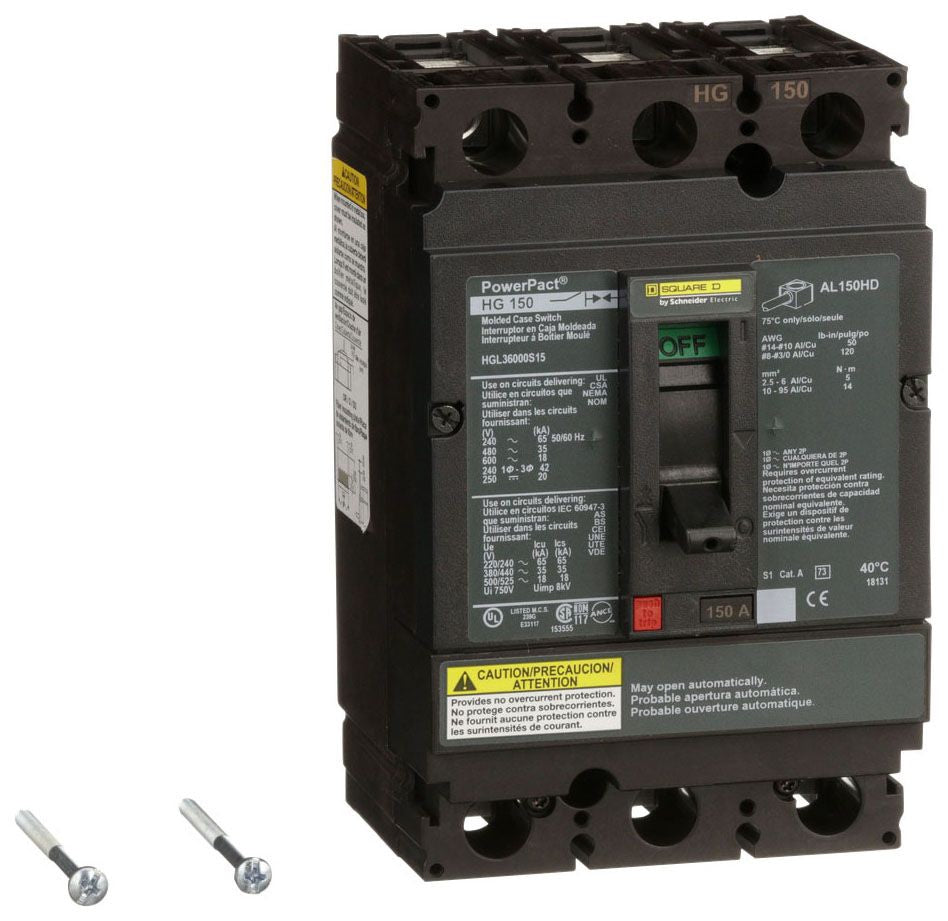

The Square D HGL36000S15 is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole, 600 Volt, 150 amp rated breaker with a 35kA@480V AIC rating. This unit features a Bolt-On connection and provides Non-Automatic protection.
Key Features:
✔ Part Number: HGL36000S15
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HGL
✔ Voltage: 600
✔ Amperage: 150
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 35kA@480V
✔ Connection: Bolt-On
✔ Functions: NA - No Overcurrent Protection
✔ Terminal Connection: Lug
✔ Frame Size: 150A/HG
✔ MCM Size: Min. Wire Size 14 AWG Max. Wire Size 3 AWG
✔ Breaker Type: Shunt Trip
✔ Protection: Non-Automatic
✔ Phase Connection: ABC
✔ UPC: 785901433958
✔ GTIN: 00785901433958
✔ Country of Origin: Mexico
✔ Dimensions: 4.12 in x 6.4 in
✔ Weight: 1.88
✔ Standards: CCC, CE, CSA, IEC, NMX, UL Listed
✔ Certification: CCC, CE, CSA, IEC, NMX, UL Listed
✔ Wire Size: x AWG 14...AWG 3/0 ( aluminum/copper )
The Square D HGL36000S15 is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole, 600 Volt, 150 amp rated breaker with a 35kA@480V AIC rating. This unit features a Bolt-On connection and provides Non-Automatic protection.
Key Features:
✔ Part Number: HGL36000S15
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HGL
✔ Voltage: 600
✔ Amperage: 150
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 35kA@480V
✔ Connection: Bolt-On
✔ Functions: NA - No Overcurrent Protection
✔ Terminal Connection: Lug
✔ Frame Size: 150A/HG
✔ MCM Size: Min. Wire Size 14 AWG Max. Wire Size 3 AWG
✔ Breaker Type: Shunt Trip
✔ Protection: Non-Automatic
✔ Phase Connection: ABC
✔ UPC: 785901433958
✔ GTIN: 00785901433958
✔ Country of Origin: Mexico
✔ Dimensions: 4.12 in x 6.4 in
✔ Weight: 1.88
✔ Standards: CCC, CE, CSA, IEC, NMX, UL Listed
✔ Certification: CCC, CE, CSA, IEC, NMX, UL Listed
✔ Wire Size: x AWG 14...AWG 3/0 ( aluminum/copper )
