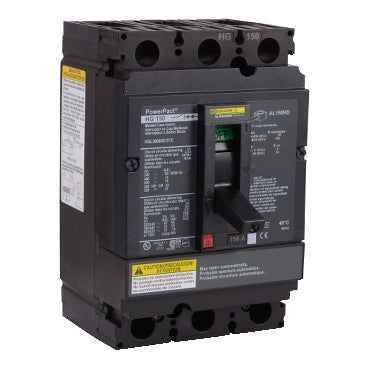

Square D HGL36000S15YE Circuit Breaker | 600V 150A 3P 35kA@480V Feed-Thru Powerpact HGL

Product Description:
The Square D HGL36000S15YE is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V voltage rating and 150A amperage capacity. This circuit breaker has an AIC rating of 35kA@480V and uses a Feed-Thru connection. It provides non-automatic protection and is built for reliable performance in electrical systems.

Key Features:
✔ Part Number: HGL36000S15YE
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HGL
✔ Voltage: 600
✔ Amperage: 150
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 35kA@480V
✔ Connection: Feed-Thru
✔ Functions: NA - No Overcurrent Protection
✔ Frame Size: H Frame
✔ Protection: Non-Automatic
✔ Dimensions: Height 6.42 in (163 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 7
✔ Wire Size: AWG 14...AWG 3/0 (aluminum/copper)
