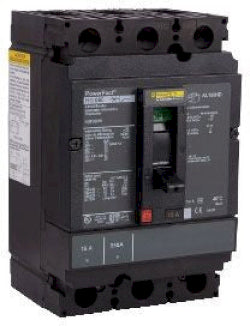

Square D HGP36020 Circuit Breaker | 600V 20A 3P 35kA@480V Bolt-On Powerpact
Square D HGP36020 Circuit Breaker | 600V 20A 3P 35kA@480V Bolt-On Powerpact
Price:
Sale
Sold out
Regular price
$436.65 USD
Regular price
$5,477.00 USD
Sale price
$436.65 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Low stock: 4 left
Couldn't load pickup availability
Product Description:
The Square D HGP36020 is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 20A rating and a 35kA@480V AIC rating. This breaker uses a Bolt-On connection and offers Thermal Magnetic protection for reliable performance.
Key Features:
✔ Part Number: HGP36020
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HGP
✔ Voltage: 600
✔ Amperage: 20
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 35kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug, Terminal Nut
✔ Frame Size: H
✔ Wire Size: Min. 14 AWG (Cu/Al) Max. 3/0 AWG (Cu/Al)
✔ Protection: Thermal Magnetic
✔ UPC: 785901825098
✔ GTIN: 00785901825098
✔ Country of Origin: United States
✔ Dimensions: 4.12 in x 6.4 in
✔ Weight: 1.88
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
